Figure I

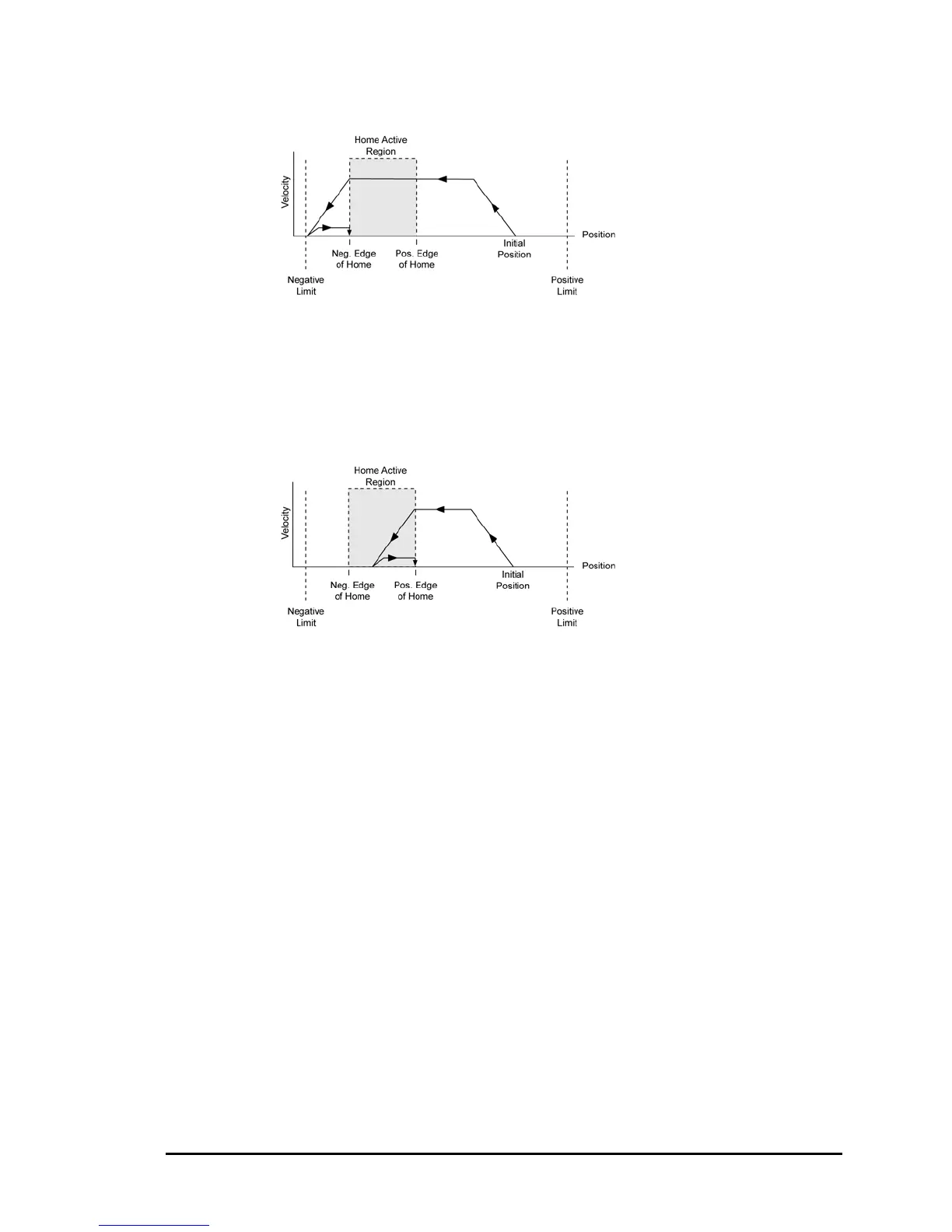

Homing Profile
Attributes:
• JOG HOME X-1
• Home Backup
Enable (bit index
24) is set.
• Home Negative
Edge Select (bit
index 25) is set.
• Home Negative
Final Direction (bit
index 26) is clear.
Figure J
Homing Profile
Attributes:
• JOG HOME X-1
• Home Backup
Enable (bit index
24) is set.
• Home Negative
Edge Select (bit
index 25) is clear.
• Home Negative
Final Direction (bit
index 26) is clear.
