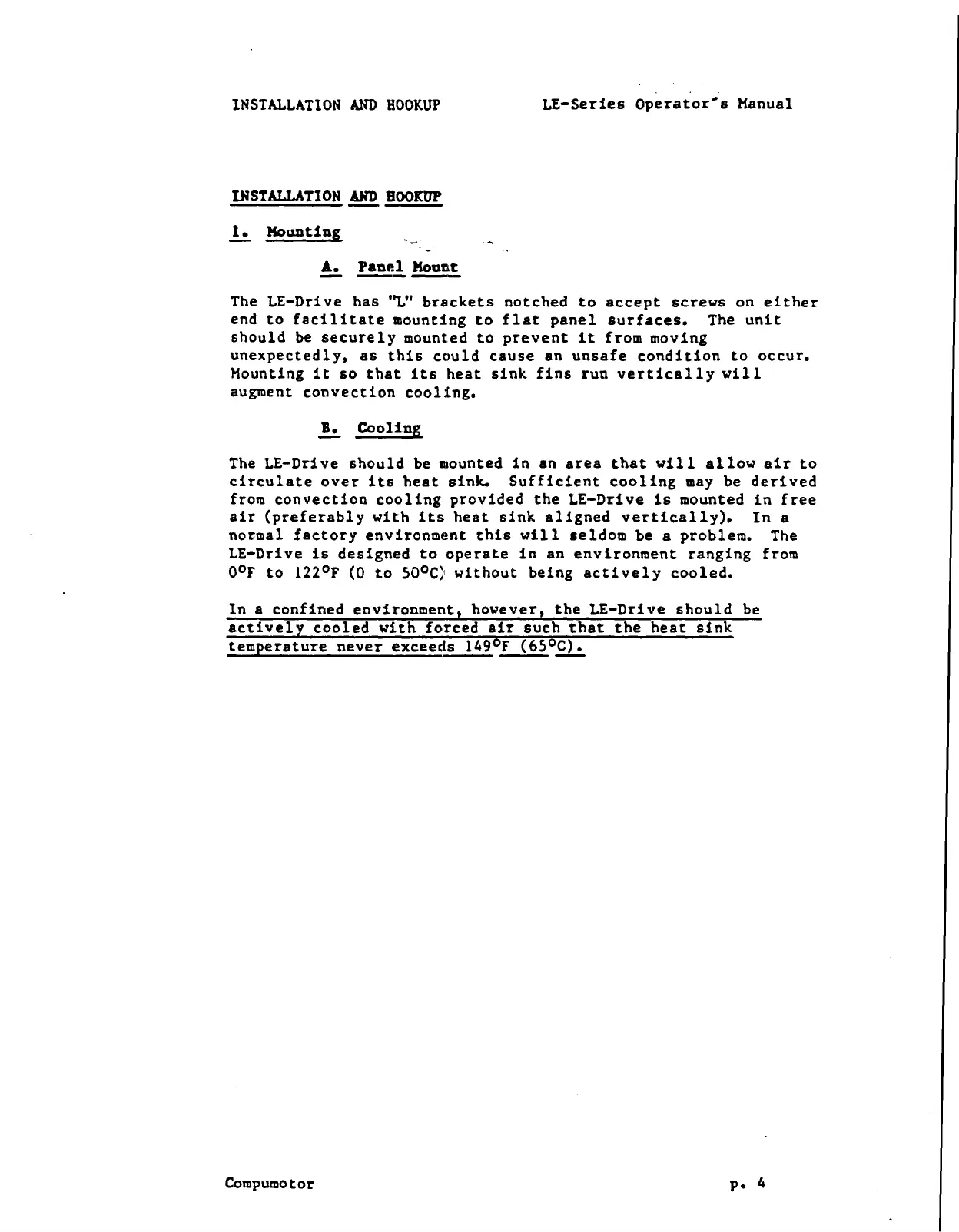

INSTALLATION AND HOOKUP
LE-Series Operator's Manual
INSTALLATION AND HOOKUP
-
1. Mounting
A. Panel Mount
The LE-Drive has .~" brackets notched to accept screws on either
end to facilitate mounting to flat panel surfaces. The unit
should be securely mounted to prevent it from moving
unexpectedly, as this could cause an unsafe condition to occur.
Mounting it so that its heat sink fins run vertically will
augment convection cooling.
B. Cooling
The LE-Drive should be mounted in an area that will allow air to
circulate over its heat sink. Sufficient cooling may be derived
from convection cooling provided the LE-Drive is mounted in free
air (preferably with its heat sink aligned vertically). In a
normal factory environment this will seldom be a problem. The
LE-Drive is designed to operate in an environment ranging from
OOF to 122°F (O to 50°C) without being actively cooled.
In a confined environment, however, the LE-Drive should be
actively cooled with forced air such that the heat sink
temperature never exceeds 149
0
r (65
0
C).
Compumotor p. 4
