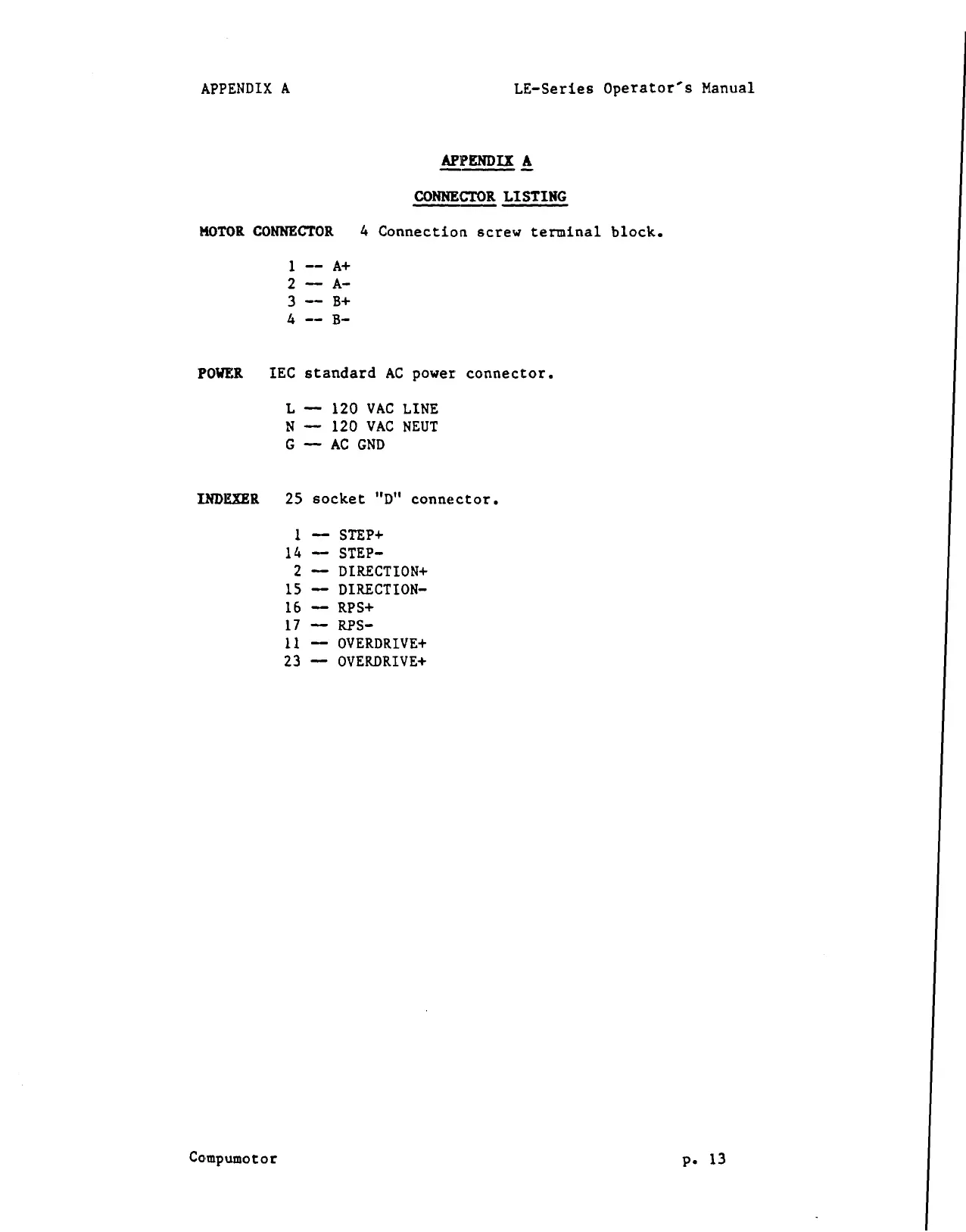

APPENDIX A
LE-Series Operator's Manual
APPENDIX A
CONNECTOR LISTING
MOTOR CONNECTOR 4 Connection screw terminal block.
1 A+
2 A-
3 B+
4 B-
POWER IEC standard AC power connector.
L 120 VAC LINE
N 120 VAC NEUT
G - AC GND
INDEXER 25 socket "D" connector.
Co,mpumotor
1
14
2
15
16
17
11
23
STEP+
STEP-
DlRECTION+
DIRECTION-
RPS+
RPS-
OVERDRIVE+
OVERDRIVE+
p. 13
