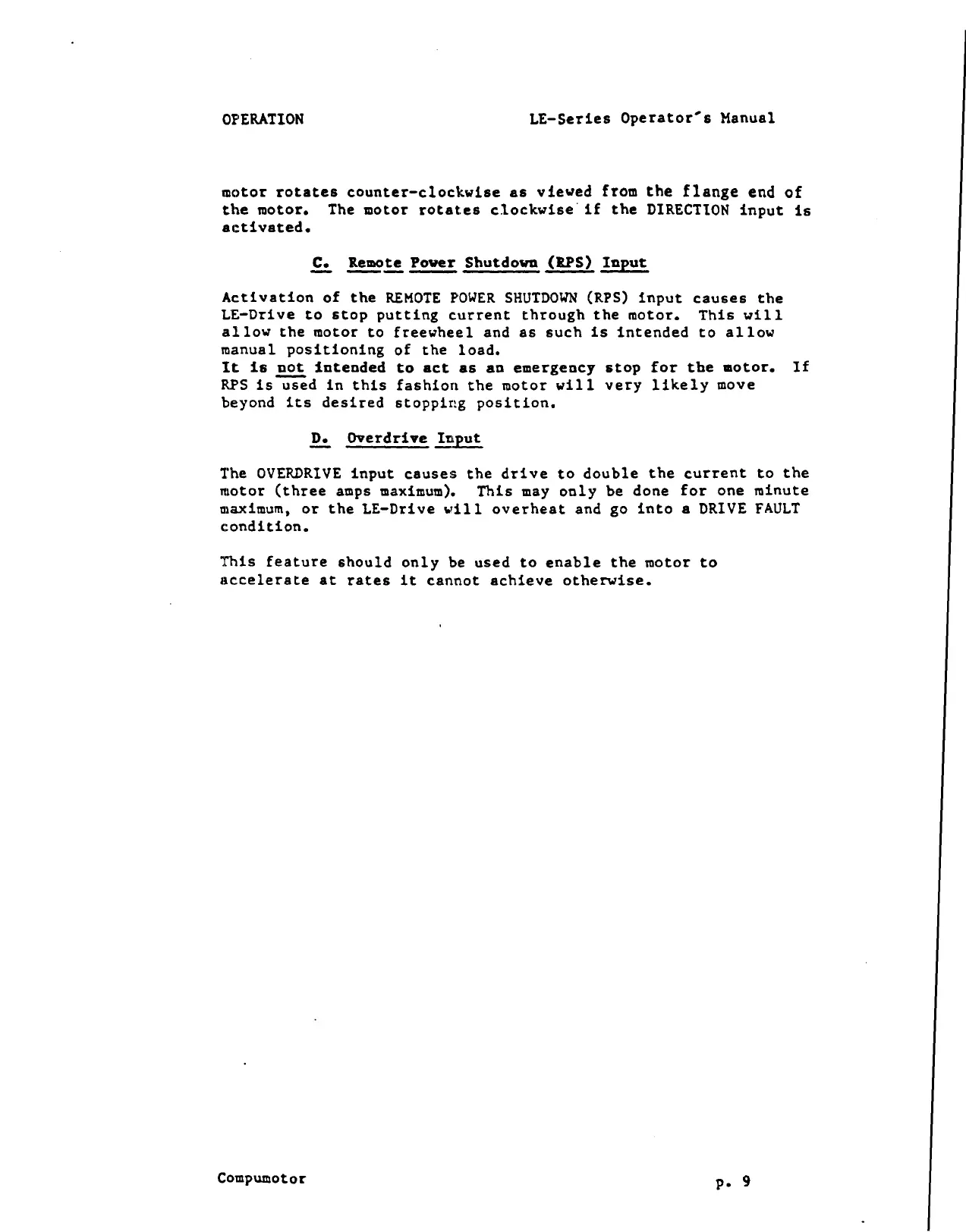

OF'ERATION
LE-Series Operator's Manual
mc)tor
rotates counter-clockwise as viewed from the flange end of
the motor. The motor rotat.es clockwise· if the DIRECTION input is
activated.
c. ~!!. Pover Shutdown (US) Input
Activation of the REMOTE POWER SHUTDOWN (RPS) input causes the
LE-Drive to stop putting current through the motor. This will
allow the motor to freewheel and as such is intended to allow
manual positioning of the load.
It 1s not intended to act as an emergency stop for the aotor. If
RPS is-uied in this fashion the motor will very likely move
beyond
its desired stopping position.
D. Overdrive lEput
The OVERDRIVE input causes the drive to double the current to the
motor (three amps maximum). This may only be done for one minute
tllaximum, or the LE-Drive will overheat and go into a DRIVE FAULT
c:ondition.
This feature should only be used to enable the motor to
llccelerate at rates it cannot achieve otherwise.
