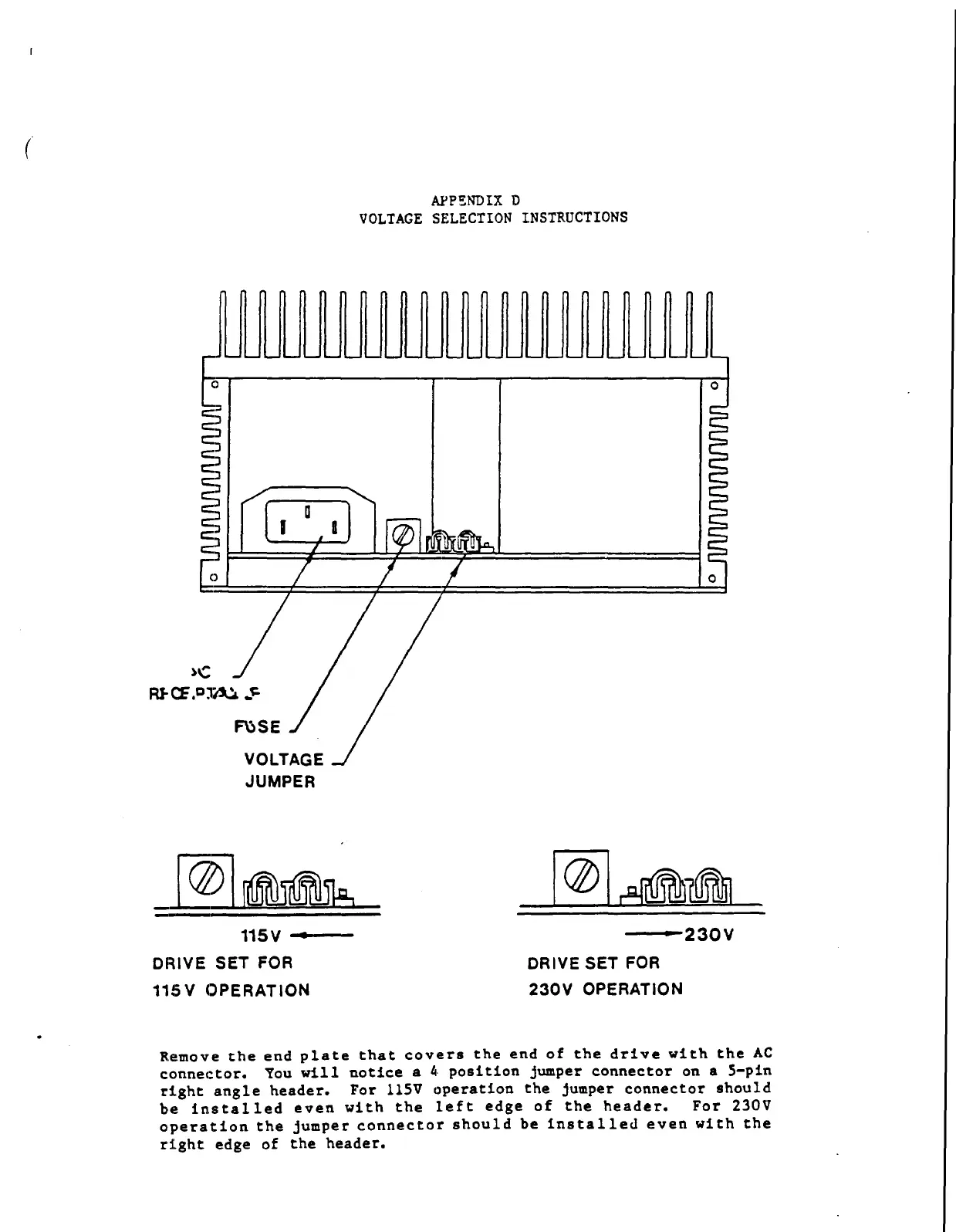

Parker Compumotor - Page 27

(
VOLTAGE
JUMPER
115V ----
DBIVE SET FOR
115V C)PERATION
APPI!:NDIX D
VOLTAGE SELECTION INSTRUCTIONS
--·-230 V
DRIVE SET FOR
230V OPERATION
R,emove the end plate that covers the end of the drive with the AC
connec:tor. You will notice a 14, position jumper connector on as-pin
right angle header. For 115V operation the jumper connector should
be installed even with the left edge of the header. For 230V
operation the jumper connector should be installed even with the
right edge of the header.
