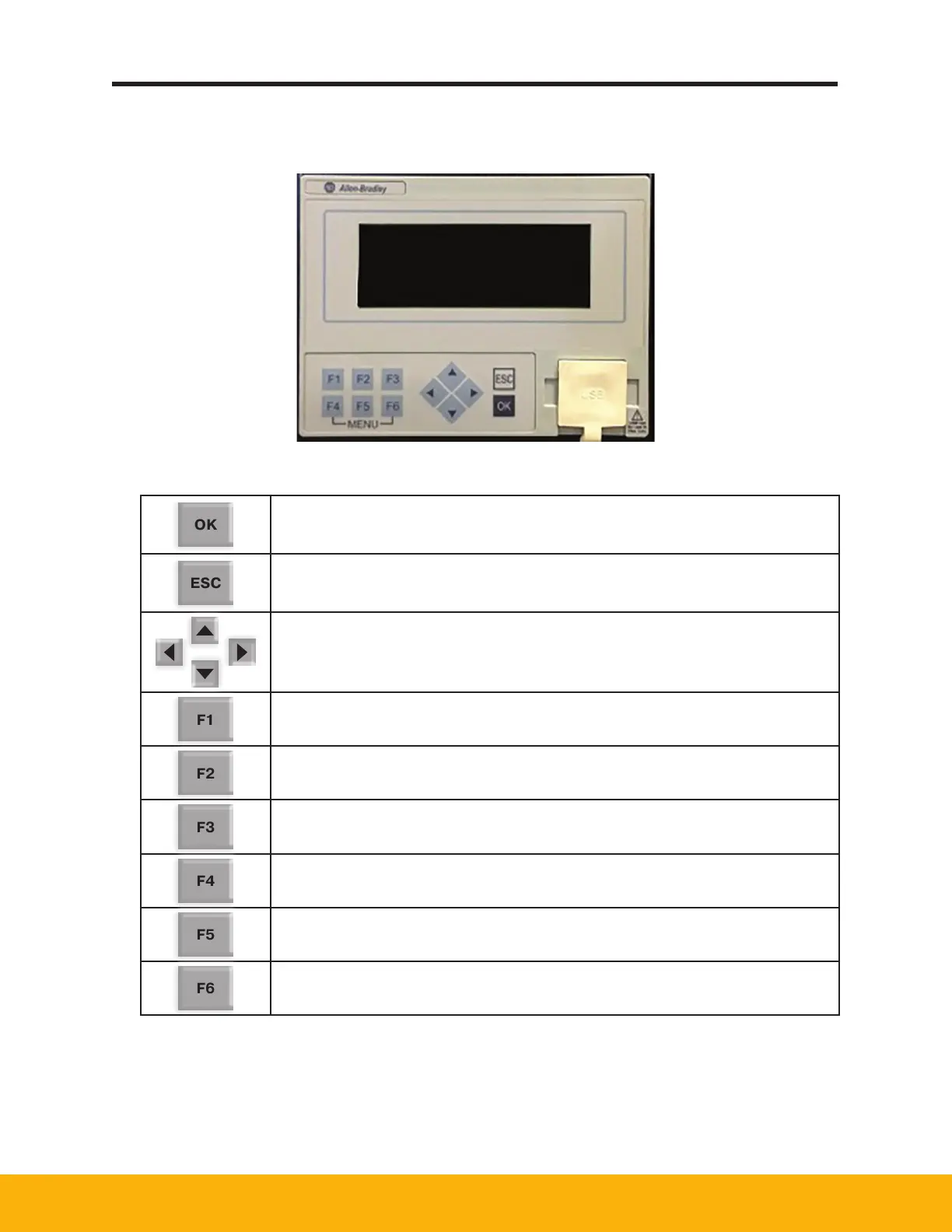

DB Series Nitrogen Generator DB5-20 Model
4. Human Machine Interface (HMI)
OK
Press to
• Enter the menus
• Select and store settings
ESC
Press to
• Exit a setting without storing
• Exit a menu
Press to
• Scroll through menus
• Change settings
F1
Press to
• Acknowledge alarms
F2
Press to
• Reset alarms
F3
Press for
• Main display
F4
Press for
• Hour meter display
F5
Press for
• Alarm log menu
F6
Press for
• Settings menu
