Parker F11 series Service Spare Parts List

13
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Series F11
Bulletin MSG30-5511-M1/UK
Assemble F11

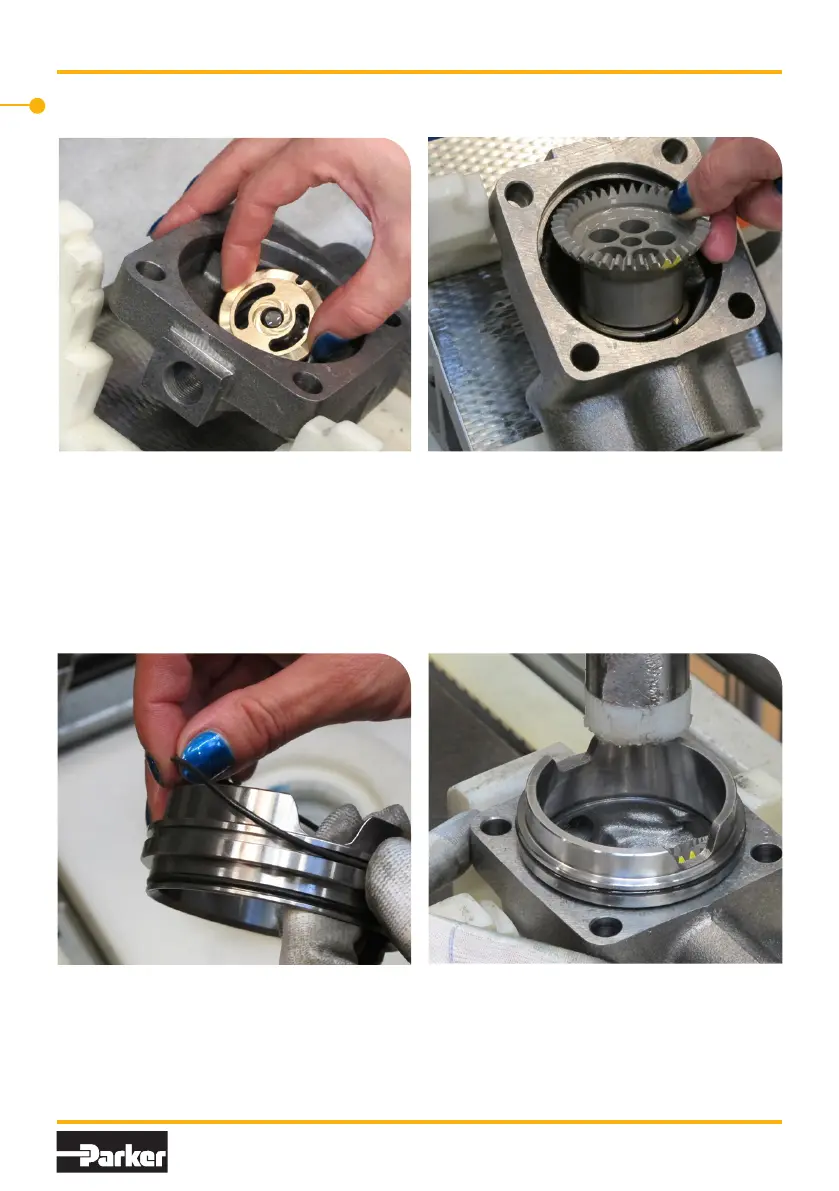

9. Assemble the valve plate. Make sure the
slot is in correct position and the valve
plate is llocated as shown in picture.
10. Assemble the cylinder barrel. Instruc-
tions on page 18.
11. Assemble the O-rings on the distance
ring.
12. Carefully tap down the guide spacer
to the barrel housing. Lubricate with
oil before assembly. The slot on the
guide spacer must be located towards
the main ports.
Bulletin MSG30-5511-M1/UK
Series F11
13
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
9. Assemblethevalveplate.
Make suretheslotisincorrect
positionand thevalveplateis
llocatedasshownin picture.
10. Assemblethecylinderbarrel.
Instructions on page 18.
11. Assemble the O-rings on the
distance ring.
12. Carefully tap down the guide
spacer to the barrel housing.
Lubricate with oil before assembly.
The slot on the guide spacer must
be located towards the main ports.
Assembling
Bulletin MSG30-5511-M1/UK
Series F11
13
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
9. Assemblethevalveplate.
Make suretheslotisincorrect
positionand thevalveplateis
llocatedasshownin picture.
10. Assemblethecylinderbarrel.
Instructions on page 18.
11. Assemble the O-rings on the
distance ring.
12. Carefully tap down the guide
spacer to the barrel housing.
Lubricate with oil before assembly.
The slot on the guide spacer must
be located towards the main ports.
Bulletin MSG30-5511-M1/UK
Series F11
13
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
9. Assemblethevalveplate.
Make suretheslotisincorrect
positionand thevalveplateis
llocatedasshownin picture.
10. Assemblethecylinderbarrel.
Instructions on page 18.
11. Assemble the O-rings on the
distance ring.
12. Carefully tap down the guide
spacer to the barrel housing.
Lubricate with oil before assembly.
The slot on the guide spacer must
be located towards the main ports.
Bulletin MSG30-5511-M1/UK
Series F11
13
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
9. Assemblethevalveplate.
Make suretheslotisincorrect
positionand thevalveplateis
llocatedasshownin picture.
10. Assemblethecylinderbarrel.
Instructions on page 18.
11. Assemble the O-rings on the
distance ring.
12. Carefully tap down the guide
spacer to the barrel housing.
Lubricate with oil before assembly.
The slot on the guide spacer must
be located towards the main ports.
