Parker F11 series Service Spare Parts List

Bulletin MSG30-5511-M1/UK
14
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Series F11
Assemble F11

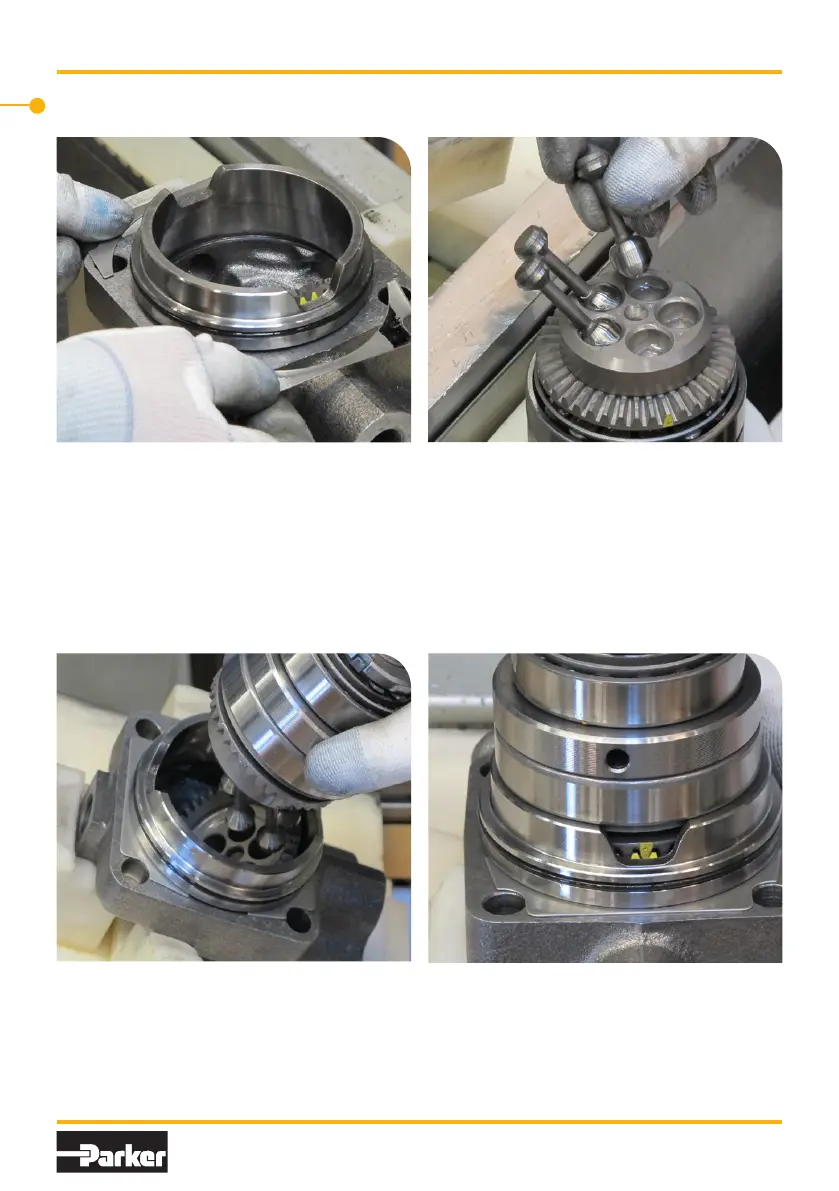

13. Assemble the shims. Some products
comes without shims, see spare part
list for more information.
14. Lubricate the ball sockets before as-
sembly. Assemble the pistons.
15. Assemble the shaft package with pis-
tons in to the cylinder barrel.
16. Make sure the timing is correct.
Bulletin MSG30-5511-M1/UK
Series F11
14
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
13. Assemble the shims. Some
products comes without shims, see
spare part list for more information.
14. Lubricate the ball sockets before
assembly. Assemble the pistons.
15. Assemble the shaft package with
pistons in to the cylinder barrel.
16. Makesurethetimingis correct.
Assembling
Bulletin MSG30-5511-M1/UK
Series F11
14
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
13. Assemble the shims. Some
products comes without shims, see
spare part list for more information.
14. Lubricate the ball sockets before
assembly. Assemble the pistons.
15. Assemble the shaft package with
pistons in to the cylinder barrel.
16. Makesurethetimingis correct.
Bulletin MSG30-5511-M1/UK
Series F11
14
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
13. Assemble the shims. Some
products comes without shims, see
spare part list for more information.
14. Lubricate the ball sockets before
assembly. Assemble the pistons.
15. Assemble the shaft package with
pistons in to the cylinder barrel.
16. Makesurethetimingis correct.
Bulletin MSG30-5511-M1/UK
Series F11
14
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
13. Assemble the shims. Some
products comes without shims, see
spare part list for more information.
14. Lubricate the ball sockets before
assembly. Assemble the pistons.
15. Assemble the shaft package with
pistons in to the cylinder barrel.
16. Makesurethetimingis correct.
