Parker F11 series Service Spare Parts List

15
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Series F11
Bulletin MSG30-5511-M1/UK
Assemble F11

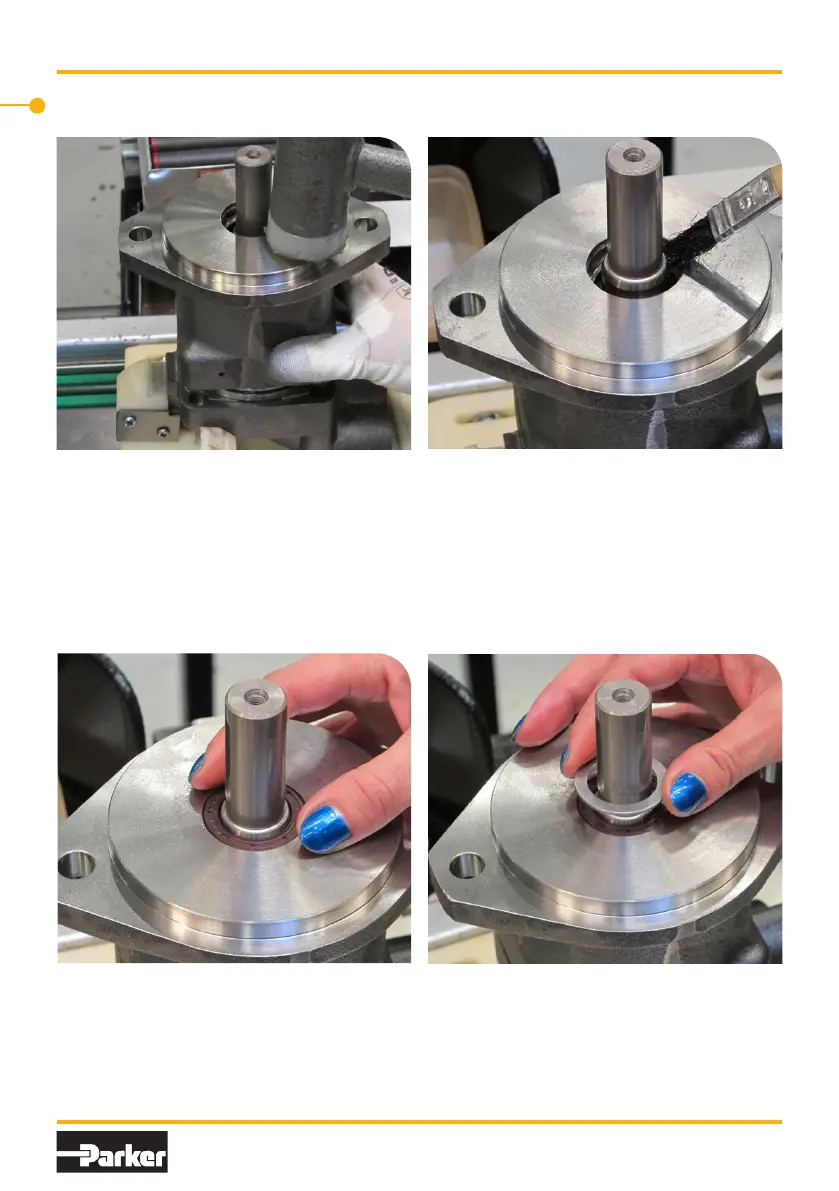

17. Carefully tap down the bearing hou-
sing.
18. Lubricate the sealing surface on the
shaft before assembling the shaft seal.
19. Carefully push down the shaft seal. Im-
portant to assemble in right position.
20. Place the back up ring with the radius
agains the dust lip on the shaft seal.
Bulletin MSG30-5511-M1/UK
Series F11
15
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
17. Carefully tap down the
bearing housing.
18. Lubricate the sealing surface on the
shaft before assembling the shaft seal.
19. Carefully push down the shaft
seal. Important to assemble in
right position
20. Place the back up ring with the
radius agains the dust lip on the
shaft seal.
Assembling
Bulletin MSG30-5511-M1/UK
Series F11
15
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
17. Carefully tap down the
bearing housing.
18. Lubricate the sealing surface on the
shaft before assembling the shaft seal.
19. Carefully push down the shaft
seal. Important to assemble in
right position
20. Place the back up ring with the
radius agains the dust lip on the
shaft seal.
Bulletin MSG30-5511-M1/UK
Series F11
15
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
17. Carefully tap down the
bearing housing.
18. Lubricate the sealing surface on the
shaft before assembling the shaft seal.
19. Carefully push down the shaft
seal. Important to assemble in
right position
20. Place the back up ring with the
radius agains the dust lip on the
shaft seal.
Bulletin MSG30-5511-M1/UK
Series F11
15
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Service Manual/Spare Parts
Assembly F11
Assembling
3. Placethedistanceringonthebig
taperedrollerbearing.
6. Placethelockwasher(s)ontothe
shaft.
17. Carefully tap down the
bearing housing.
18. Lubricate the sealing surface on the
shaft before assembling the shaft seal.
19. Carefully push down the shaft
seal. Important to assemble in
right position
20. Place the back up ring with the
radius agains the dust lip on the
shaft seal.
