Parker P1D Series Operating Information

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
B74
Catalog PDN1000-3US
Parker Pneumatic
B
Tie Rod Cylinders Actuator Products
3MA
Series
4MA/4ML
Series
3MAJ/4MAJ
Series
4MNR
Series
P1D
Series
According to ISO MF1/MF2, VDMA 24 562, AFNOR
Bore
size
mm
d1
H11
mm
FB
H13
mm
TG1
mm
E
mm
R
JS14
mm
MF
JS14
mm
TF
JS14
mm UF
I1
-0.5
mm
W
mm
ZF
mm
ZB
mm
Weight
kg Part number
32 30 7 32.5 45 32 10 64 80 5.0 16 130 123.5 0.23 P1C-4KMBA
40 35 9 38.0 52 36 10 72 90 5.0 20 145 138.5 0.28 P1C-4LMBA
50 40 9 46.5 65 45 12 90 110 6.5 25 155 146.5 0.53 P1C-4MMBA
63 45 9 56.5 75 50 12 100 120 6.5 25 170 161.5 0.71 P1C-4NMBA
80 45 12 72.0 95 63 16 126 150 8.0 30 190 177.5 1.59 P1C-4PMBA
100 55 14 89.0 112 75 16 150 185 8.0 35 205 192.5 2.19 P1C-4QMBA
125 60 16 110.0 140 90 20 188 220 10.5 45 245 230.5 3.78 P1C-4RMB
160 65 18 140.0 180 115 20 230 260 9.5 60 280 266 C.F. L075370160
200 75 22 175.0 220 135 25 270 300 12.5 70 300 281 C.F. L075370200
S = Stroke length C.F. = Consult Factory
ØFB
R
UF
Ød1
TF
E
TG
1
ZB+S
MF
MF
W
ZF+S
I1
AO
AU
AH
I
9
I7
AT
E
TGI
TR
ØAB
SA+S
Intended for xed mounting of cylinder. Flange can be tted
to front or rear end cover of cylinder.
Materials:
32-100mm bore ange: Surface-treated aluminum, black
125-200mm bore ange: Steel, black
Mounting screws acc. to DIN 6912: Zinc-plated steel 8.8
Supplied complete with mounting screws for attachment to
cylinder.
Intended for xed mounting of cylinder. Foot bracket can
be tted to front and rear end covers of cylinder.
Materials:
Foot bracket: Surface-treated steel, black
Mounting screws acc. to DIN 912: Zinc-plated steel 8.8
Supplied in pairs with mounting screws for attachment to
cylinder .

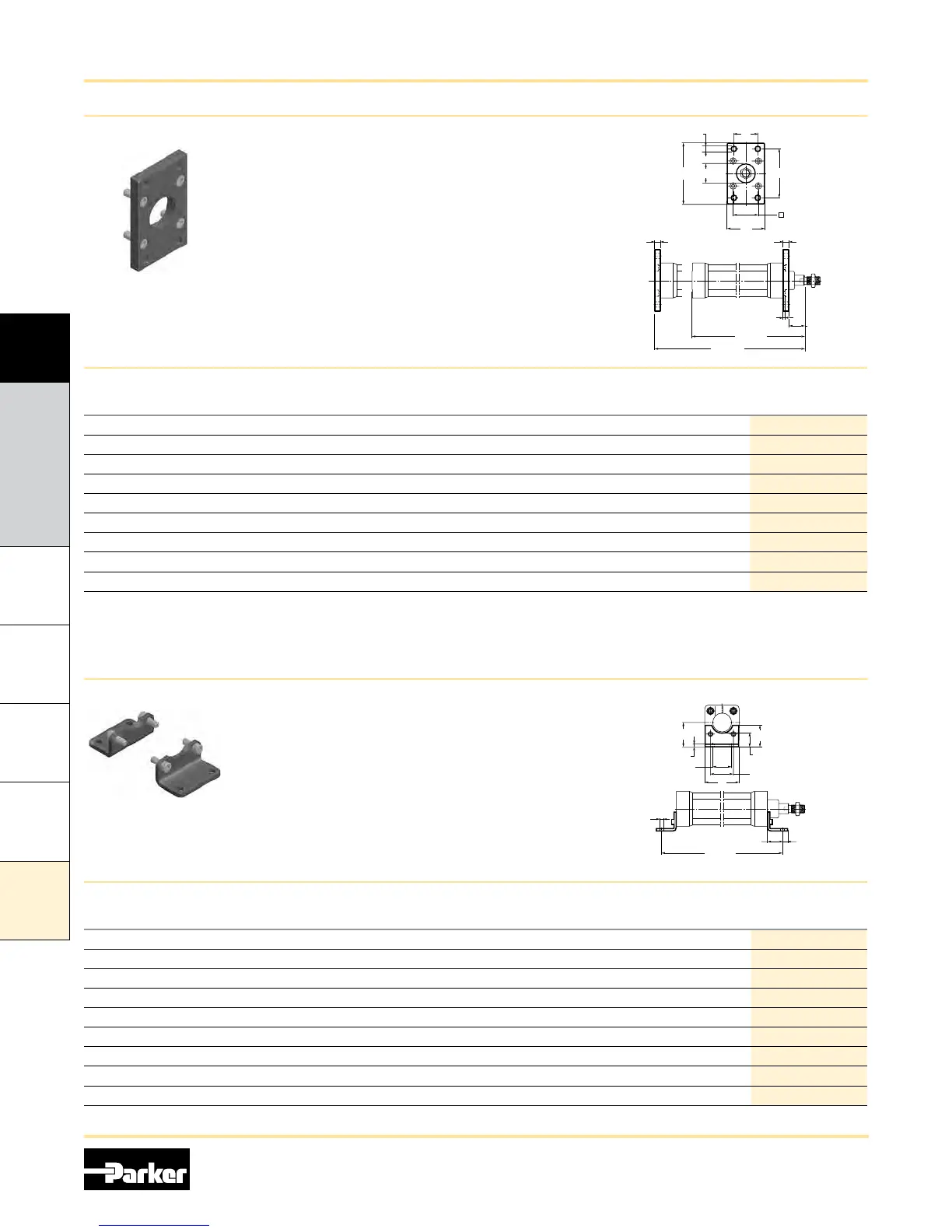

Flange – MF1, MF2
Foot Bracket – MS1
According to ISO MS1, VDMA 24 562, AFNOR
Bore
size
mm
AB
H14
mm
TG1
mm
E
mm
TR
JS14
mm
AO
mm
AU
mm
AH
JS15
mm
I7
mm
AT
mm
I9
JS14
mm
SA
mm
Weight*
kg Part number
32 7 32.5 45 32 10 24 32 30 4.5 17.0 142 0.06 P1C-4KMF
40 9 38.0 52 36 8 28 36 30 4.5 18.5 161 0.08 P1C-4LMF
50 9 46.5 65 45 13 32 45 36 5.5 25.0 170 0.16 P1C-4MMF
63 9 56.5 75 50 13 32 50 35 5.5 27.5 185 0.25 P1C-4NMF
80 12 72.0 95 63 14 41 63 49 6.5 40.5 210 0.50 P1C-4PMF
100 14 89.0 115 75 15 41 71 54 6.5 43.5 220 0.85 P1C-4QMF
125 16 110.0 140 90 22 45 90 71 8.0 60.0 250 1.48 P1C-4RMF
160 18 140.0 180 115 15 60 115 100 9.0 63.5 300 C.F. L075380160
200 22 175.0 220 135 30 70 135 100 12.0 65.0 320 C.F. L075380200
S = Stroke length C.F. = Consult Factory *Weight per item
Actuator Products – Tie Rod Cylinders
P1D Series
