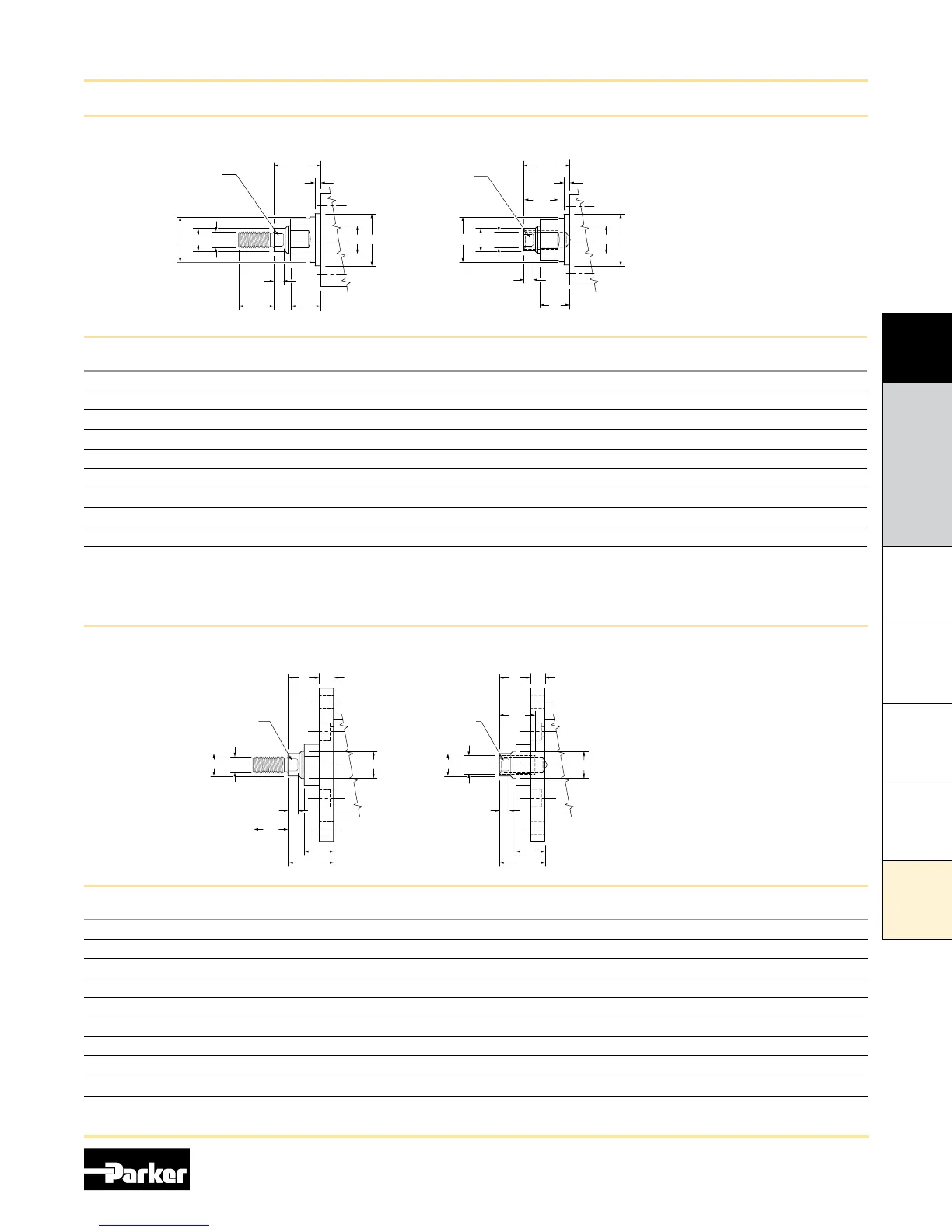

Parker P1D Series Operating Information

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
B73
Catalog PDN1000-3US
Parker Pneumatic
B
Tie Rod Cylinders
Actuator Products
3MA
Series
4MA/4ML
Series
3MAJ/4MAJ
Series
4MNR
Series
P1D
Series
All Mountings Except MF1
With MF1 Mounting
WH
SW
Wrench
Flats
BC
NA
KK
L
12
AM
L
2
VD
WH
VD
D
B
D
B
SW
Wrench
Flats
BC
NA
KF
L
12
AM
L
2
MF
W
SW
Wrench
Flats
NA
KK
L
12
AM
D
L
2
WH
MF
W
SW
Wrench
Flats
NA
KF
L
12
AM
D
L
2
WH
Thread Style N Thread Style 6 Thread Style 3 -
“Special Thread”
Special thread, extension,
rod eye, blank, etc are also
available. To order, specify
“Style 3” and provide
desired dimensions for
KF or KK, AM and WH. If
otherwise special, furnish
dimensioned sketch.
Bore
size D KK KF AM
B
d11 BC
SW
across flats L12 NA VD L2 WH*
32 12 M10x1.25 M8x1 22 30 27 10 6 11 4.5 18 26
40 16 M12x1.25 M10x1.25 24 35 32 13 6.5 15 4.5 20 30
50 20 M16x1.5 M14x1.5 32 40 36 17 6.5 19 4.5 26 37
63 20 M16x1.5 M14x1.5 32 45 36 17 6.5 19 4.5 26 37
80 25 M20x1.5 M18x1.5 40 45 41 22 10 24 4.5 33 46
100 25 M20x1.5 M18x1.5 40 55 41 22 10 24 4.5 33 51
125 32 M27x2 M24x2 54 60 50 27 13 31 6.5 41 65
160 40 M36x2 M30x2 72 65 60 36 16 39 6 56 80
200 40 M36x2 M30x2 72 75 60 36 16 39 6 56 95
Bore
size D KK KF AM
SW
across flats L12 MF NA L2 W† WH†
32 12 M10x1.25 M8x1 22 10 6 10 11 18 16 26
40 16 M12x1.25 M10x1.25 24 13 6.5 10 15 20 20 30
50 20 M16x1.5 M14x1.5 32 17 6.5 12 19 26 25 37
63 20 M16x1.5 M14x1.5 32 17 6.5 12 19 26 25 37
80 25 M20x1.5 M18x1.5 40 22 10 16 24 33 30 46
100 25 M20x1.5 M18x1.5 40 22 10 16 24 33 35 51
125 32 M27x2 M24x2 54 27 13 20 31 41 45 65
160 40 M36x2 M30x2 72 36 16 20 39 56 60 80
200 40 M36x2 M30x2 72 36 16 25 39 56 70 95
Thread Style N Thread Style 6
“Special Thread”
Style 3
Special thread, extension,
rod eye, blank, etc are also
available. To order, specify
“Style 3” and provide
desired dimensions for
KF or KK, AM and WH. If
otherwise special, furnish
dimensioned sketch.
*NOTE: Dimensions do not apply to Rod Lock Versions.
†
NOTE: Dimensions do not apply to Rod Lock Versions.
Actuator Products – Tie Rod Cylinders
P1D Series

Parker P1D Series Specifications

General

Brand	Parker
Model	P1D Series
Category	Controller
Language	English
