Parker P1F - Page 22

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
22
For inventory, lead times, and kit
lookup, visit www.pdnplu.com
Tie Rod and Prole Pneumatic Cylinders
P1F Series
Catalog 0980
Accessories

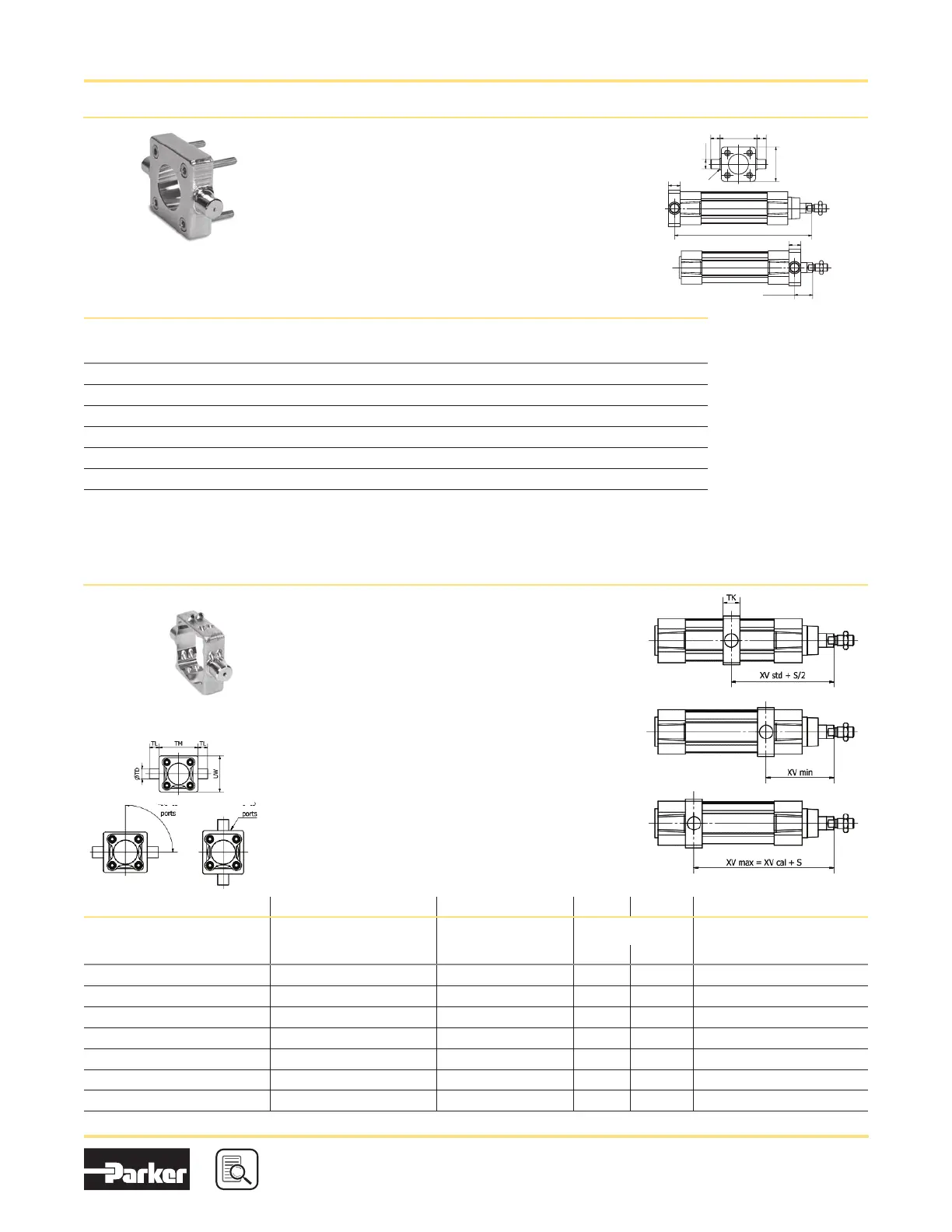

Flange Trunnion - MT5 / MT6
Intended for articulated mounting of
cylinder. This trunnion can be flange
mounted on the front or rear end cover
of the cylinder.
Materials:
Trunnion: Zinc-plated steel
Screws: Zinc-plated steel 8.8
Delivered complete with mounting screws
for attachment to the cylinder.
TM TLTL
T
D
R
U
W
L1
L1
XV1
XV2 + S
Ø
TM TLTL
T
D
R
U
W
L1
L1
XV1
XV2 + S
Ø
TM TLTL
T
D
R
U
W
L1
L1
XV1
XV2 + S
Ø
According to ISO 15552
Bore
size
mm
L1
mm
R
mm
TD (e9)
mm
TL (h14)
mm
TM (h14)
mm
UW
mm
XV1*
mm
XV2*
mm
Weight
kg Part number
32 14 1.0 12 12 50 46 19.5 127.0 0.14
P1D-4KMYF
40 19 1.6 16 16 63 59 21.0 144.5 0.39
P1D-4LMYF
50 19 1.6 16 16 75 69 28.0 152.5 0.51
P1D-4MMYF
63 24 1.6 20 20 90 84 25.5 170.0 1.04
P1D-4NMYF
80 24 1.6 20 20 110 102 34.5 186.0 1.57
P1D-4PMYF
100 29 2.0 25 25 132 125 37.0 203.5 3.00
P1D-4QMYF
* Does not apply to cylinders with piston rod extension or lock units.
To fit a flange mounted trunnion at the front end cover of a cylinder with lock unit, the piston rod must be extended. This is in order
to provide the same WH dimensions as for the P1F base cylinder.
Available for P1F Profile and Tie-Rods versions
the MT4 center trunnion when combined with
AT4 pivot brackets is intended for articulated
mounting of the cylinder. The trunnion is free so
that it can be fixed afterward when the cylinder
is at the right place on the machine.
Material: Zinc plated steel
Refer to the model code page 16 for ordering
cylinder with trunnion.
Important note: the rear end cylinder cover
needs to be removed for adding the trunnion
when ordered as a single kit.
According to ISO 15552 P1F-S/K P1F-T/N P1F-L P1F-H
Bore
size
mm
TL
h14
mm
TM
h14
mm
ØTD
e9
mm
XV*
std
mm
TK
mm
UW
mm
XV*
min
mm
XV*
cal
mm
TK
mm
UW
mm
XV*
min
mm
XV*
cal
mm
Adder to XV* Part number
Smooth Profile Tie-Rods
32 12 50 12 73 18 52 65 81 15 46 63 83 32 48
P1F-4KMY P1F-4KMYT
40 16 63 16 83 20 60 74 91 20 59 74 91 30 55
P1F-4LMY P1F-4LMYT
50 16 75 16 90 20 71 82 98 20 69 82 98 29 70
P1F-4MMY P1F-4MMYT
63 20 90 20 98 26 84 91 104 25 84 90 105 39 70
P1F-4NMY P1F-4NMYT
80 20 110 20 110 26 105 100 120 25 102 99 121 45 90
P1F-4PMY P1F-4PMYT
100 25 132 25 120 32 129 113 127 30 125 112 128 57 92
P1F-4QMY P1F-4QMYT
125 25 160 25 145 33 154 134 156 33 155 134 156 56 122
P1F-4RMY P1F-4RMYT
*Does not apply to cylinders with piston rod extension or lock units.
Center Trunnion - MT4
