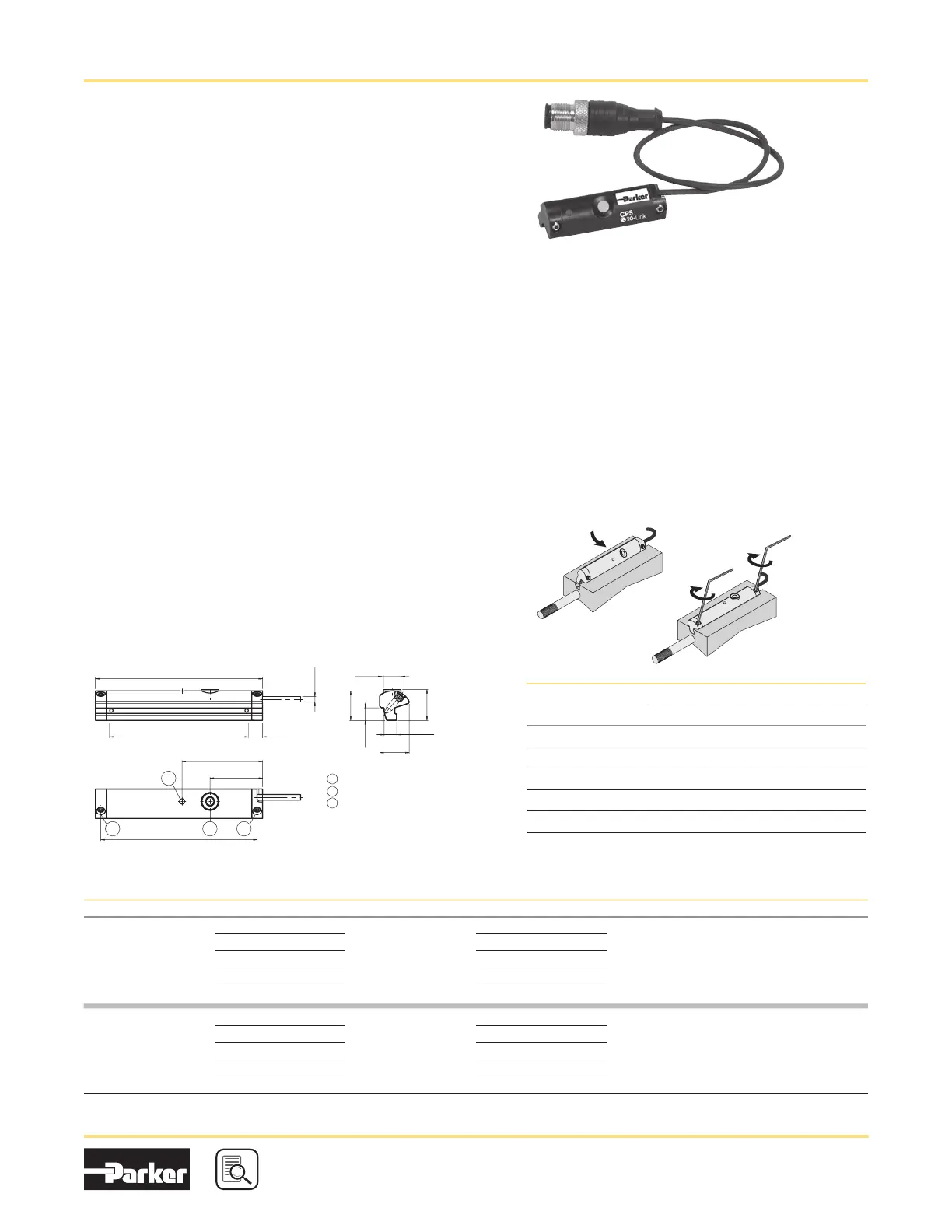

Parker P1F - Continuous Position Sensing (CPS); CPS Features and Technical Specifications; CPS Installation and Operation

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
28
For inventory, lead times, and kit
lookup, visit www.pdnplu.com
Tie Rod and Prole Pneumatic Cylinders
P1F Series
Catalog 0980
Specifications
Output Measuring length Configuration Option Order Code Weight g For product series
Analog
32 mm
Teach Button
P8SAGACHA
16
With T-slot groove *
64 mm
P8SAGACHB
26
128 mm
P8SAGACHD
46
192 mm
P8SAGACHF
66
256 mm
P8SAGACHH
86
IO-Link
32 mm
Teach Button or
IO-Link parameter
P8SAGHMHA
20
With T-slot groove *
64 mm
P8SAGHMHB
30
128 mm
P8SAGHMHD
50
192 mm
P8SAGHMHF
70
256 mm
P8SAGHMHH
90
* Required magnetic field sensitivity: 3mT / -2 mT (Analogue) / 3mT (IO-Link)
Note: PUR cable with M12 (IO-Link) or M8 (Analogue) male connector knurled nut, 4-pin, 0,3 meter length. Please consult for measuring range 96, 160 & 224 mm.
Ordering Data - Drop in T-slot, Turn, Screw, it’s done
Continuous Position Sensing (CPS)
Analog signal or IO-Link communication for linear cylinders
many applications require more than just end of stroke sensing
of an actuator, but traditional methods of continuous sensing
are expensive and difficult to implement. Parker’s CPS series
of the P8S sensor family enables quick, easy, precise, and
contactless position sensing of a piston. This can be installed
on a standard linear actuator and offers an outstanding price
to performance ratio.
Product Features:
Continuous position sensing
• IO-Link communication with M12 connector
• No modification to the actuator
• Analog version with M8 connector
• 5 sizes with sensing ranges from 32 mm to 256 mm
• IP67 design suitable for any industrial application
• Yellow teach button for easy set-up
Technical specification:
1 ms sampling rate
0.03% full scale resolution
0.06% full scale repeatability
0.3 mm Linearity error
How it installs:
The Parker CPS requires the use of a magnetic piston.
The product will ft T-slot cylinders without any additional
mounting hardware.
1. Pivot the sensor into the slot
2. Teach the CPS unit the desired measuring range
3. Tighten set screws
How it connects:
Analog version has a M8 connector and a voltage output of 0-10V
as well as a current output of 4-20mA. IO-Link version has a M12
connector and transmits position via 2 bytes of process input
data and also allows for parameter control of measuring range
and locking of the teach button. It can be controlled by Class A or
Class B IO-Link Masters.
How it works:
The CPS product detects the position of an actuator via the
magnet on the piston. The sensor settings can easily be adjusted
during installation using the yellow teach button or during operation
over the IO-Link communication. This upgrades the functionality of
the pneumatic actuator by making it more intelligent and versatile
in support of the Industry 4.0 initiative.
Dimensions in mm (inch)
Part number
L1 L2 * L3 Analog IO-Link
45 32 40
P8SAGACHA P8SAGHMHA
77 64 72
P8SAGACHB P8SAGHMHB
141 128 136
P8SAGACHD P8SAGHMHD
205 192 200
P8SAGACHF P8SAGHMHF
269 256 264
P8SAGACHH P8SAGHMHH
*L2 equal to the measuring range
1
3
L1
Ø 2.6
(0.10)
6.5
(0.26)
L2
Ø 8.1
(0.32)
14.2
(0.56)
13.6
(0.54)
13.6
(0.54)
5.8
(0.23)
5.8
(0.23)
24.2 (0.95)
37.1 (1.46)
L3
1
3
2
1 Function indicator
2 Fixing screw
3 Teach-in button
2
Note: PUR cable with M12 (IO-Link) or
M8 (Analog) male connector knurled nut,
4-pin, 0,3 meter length.
