Parker P1F - Sensor Ordering Information; Sensor Part Numbers; Connectors and Cables

Parker Hannifin Corporation
Pneumatic Division
Richland, Michigan
www.parker.com/pneumatics
27
For inventory, lead times, and kit
lookup, visit www.pdnplu.com
Tie Rod and Prole Pneumatic Cylinders
P1F Series
Catalog 0980
Ordering information
Connecting cables
Description Weight g For Product Series Part number
Cable flex PVC 3 meter with 8mm snap-in connector / flying leads 70 P8S Sensors with M8 9126344341
Cable flex PVC 10 meter with 8mm snap-in connector / flying leads 210 P8S Sensors with M8 9126344342
Cable PUR 3 meter with 8mm snap-in female connector / flying leads 70 P8S Sensors with M8 9126344345
Cable flex PUR 10 meter with 8mm snap-in connector / flying leads 210 P8S Sensors with M8 9126344346
Cable PVC 2.5 meter with M8 screw connector / flying leads 60 P8S Sensors with knurled M8 4041
Cable PVC 5 meter with M8 screw female connector / flying leads 120 P8S Sensors with knurled M8 KC3104

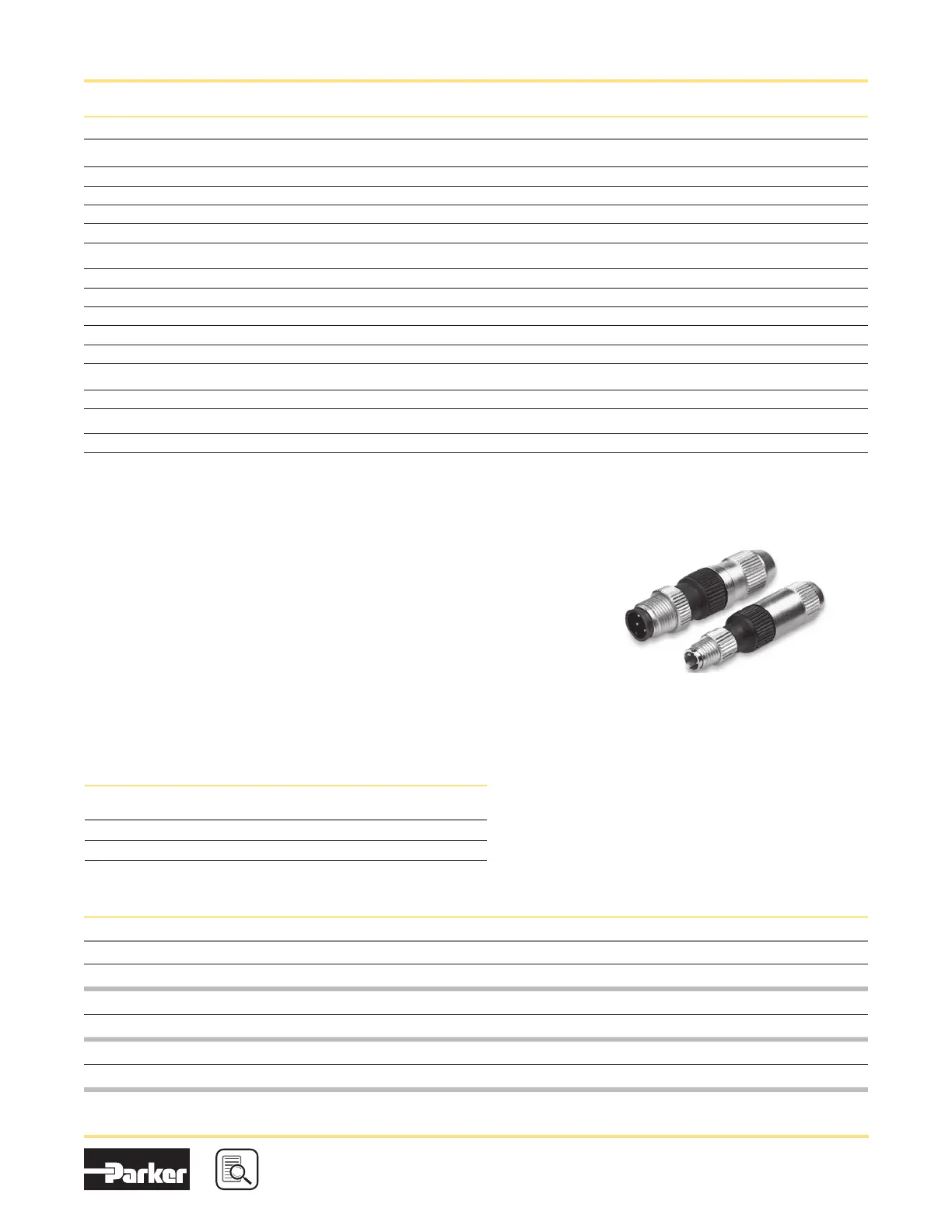

Male connectors for connecting cables
Cable connectors for producing your own connecting cables.
The connectors can be quickly attached to the cable without
special tools. Only the outer sheath of the cable is removed.
The connectors are available for M8 screw connectors and
meet protection class IP65.
Technical data
Operating voltage: max. 32V AC/DC
Operating current per contact: max. 4 A
Connection cross section: 0.25.... 0.5 mm² (conductor diameter min 0.1)
Protection class: IP65 And IP67 when plugged and
screwed down (EN 60529)
Temperature range: - 25... +85°C
Connector
Weight
kg Part number
M8 screw connector 0.018
P8CS0803J
M12 screw connector 0.022
P8CS1204J
Sensor ordering information
Output/function Cable/connector Weight kg Part number
Electronic sensors, 10-30 V DC
PNP type, normally open 0.27 m PUR cable and 8 mm snap-in male connector 0.007 P8S-GPSHX
PNP type, normally open 0.27 m PUR cable and M12 screw male connector 0.015 P8S-GPMHX
PNP type, normally open 3 m PVC cable without connector 0.030 P8S-GPFLX
PNP type, normally open 10 m PVC cable without connector 0.110 P8S-GPFTX
Reed sensors, 10-30 V AC/DC
Normally open 0.27 m PUR cable and 8 mm snap-in male connector 0.007 P8S-GSCHZ
Normally open 0.27 m PUR cable and M12 screw male connector 0.015 P8S-GSMHX
Normally open 3 m PVC cable without connector 0.030 P8S-GSFLX
Normally open 10 m PVC cable without connector 0.110 P8S-GSFTX
Normally closed 5 m PVC cable without connector
without LED 0.050 P8S-GCFPX
Reed sensors, 10-120 V AC/DC
Normally open 3 m PVC cable without connector 0.030 P8S-GRFLX
Reed sensors, 24-230 V AC/DC
Normally open 3 m PVC cable without connector 0.030 P8SAGRFLX2
