Technical Information
1
24 VDC
Control
Signal
3
2
U
O
P
+
Technical Information
Pneumatics
Working Media
Compressed air or inert gasses, filtered to 40µ.
Operating Pressure
Max. Operating Pressure
2 bar unit ...............................................3 bar (43.5 PSI)
10 bar unit ........................................10.5 bar (152 PSI)
Min. Operating Pressure ............P2 Pressure + 0.5 bar
(7.3 PSI)
Pressure Control Range
Available in two pressure ranges, 0-2 bar (0-29 PSI) or
0-10 bar (0-145 PSI). Pressure range can be changed
through the software at all times. (parameter 19)
Temperature Range
32°F to 122°F (0°C to 50°C)
Weight
P3HPA 10 oz. (.28 kg)
P3KNA 23 oz. (.65 kg)
Air Consumption
No consumption in stable regulated situation.
Display
The regulator is provided with a digital display, indicating
the output pressure, either in PSI or bar.
The factory setting is as indicated on the label, can be
changed through the software at all times (parameter 14).
Electronics
Supply Voltage
24 VDC +/- 10%
Power Consumption
1.1 W
Current Consumption
Max. 200 mA with no load
Control Signals
The electronic pressure regulator can be externally
controlled through an analog control signal of 0-10 V,
adjustable to 4-20 mA via parameter 4. See page B13.
Connections
Central M12 male connector 4-pole
The electrical connections are as follows:

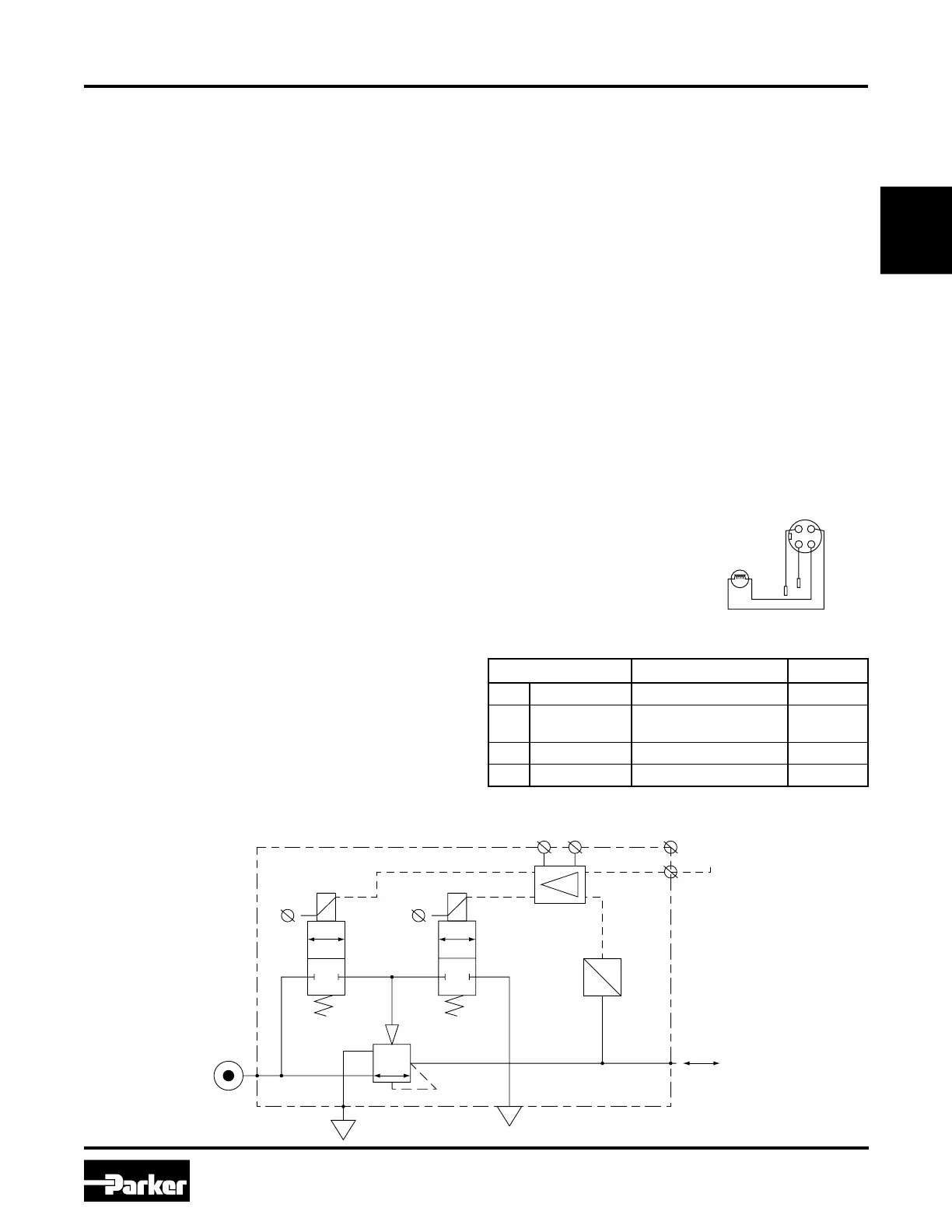

Schematic
Pin No. Function Color
1 24 V Supply Brown
2
0 to 10 V or
4 to 20mA
Control Signal
Ri = 100k W
White
3 0 V (GND) Supply Blue
4 24 V Alarm Output Signal Black
“P3HPA” / “P3KNA” Series
Electronic Proportional Regulators
2
4-PIN MICRO
(TOP COVER)
WHT
BRN
BLUE
BLK
ISO 20401
1
3
4
