Parkside PHDB 4 B2 User Manual

PHDB 4 B2
GB
│
MT
│
29 ■
Fitting the hand spray gun, the jet pipe and the
nozzle
DANGER!
► Risk of injury! Appliance, supply pipes, high-pressure hose and
connections must be in perfect working order. If the equipment is
not in perfect working order, the appliance may no longer be used.
♦ Connect the jet pipe
to the hand spray gun .
♦ Tighten the screws of the jet pipe
by hand.
♦ Fit the nozzle
onto the jet pipe . Ensure that it clicks into place
correctly.
♦ Fit the high-pressure hose
onto the hand spray gun .
Operation

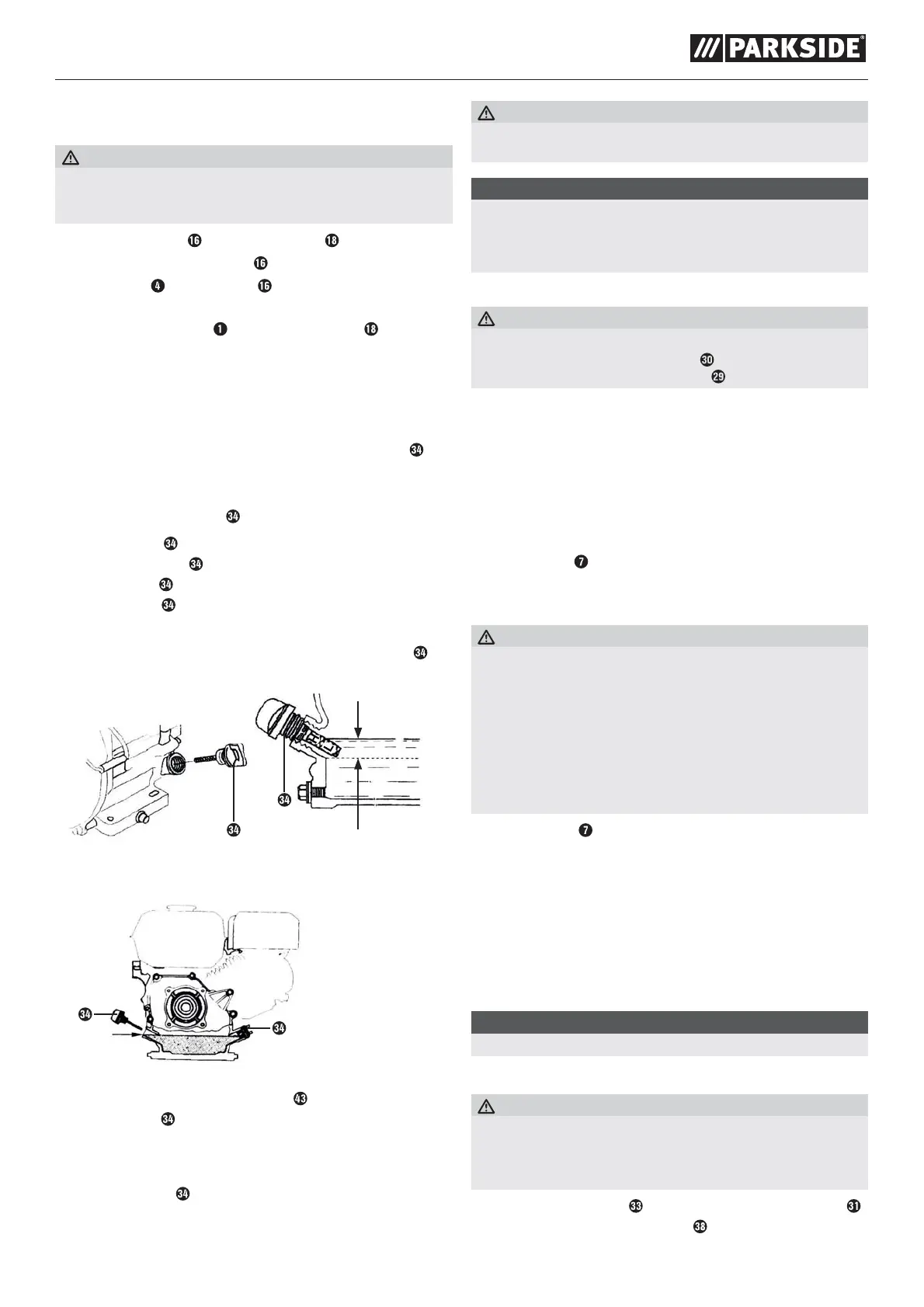

Checking the oil level of the engine
■ Check the oil level before each use.
■ Do not use the appliance if there is no oil visible on the dipstick .
■ Add oil as required. Use only engine oil (15W40).
♦ Place the appliance on a flat, level surface and remove all dirt from
around the oil inlet/dipstick
.
♦ Use the dipstick
to measure the oil level.
Unscrew the dipstick
and wipe it clean with a cloth.
Put the dipstick
back into the oil inlet without screwing it in.
Pull the dipstick
back out and check the oil level.
♦ Check that the oil level is somewhere between the minimum and max-
imum levels (marked as L for low and H for high on the dipstick
).
♦ To fill up the oil, take the supplied funnel and pour the oil slowly
into the oil inlet
. Do not overfill!
♦ Wait a minute until the oil has settled before measuring the oil level
again as described above.
♦ Screw the dipstick
back into the oil inlet.
CAUTION!
► Do not overfill the oil. A too high oil level can cause engine damage.
The maximum fill level for the tank is 0.6 litres.
NOTE
►
The engine is equipped with an oil level sensor. The oil level sensor
switches the engine off if the oil level is too low and prevents a
restart. If the engine cuts out although the oil level is correct, check
whether the petrol-powered high-pressure cleaner is standing straight.
Bleeding the oil tank
CAUTION!
► Before first use,
the bleed valve on the oil tank needs to be replaced.
On delivery, a black transport oil plug
is screwed in which has to
be replaced by the supplied red oil plug
.
Engine
Observe the section "Safety instructions"!
■ Before use, read the manufacturer's operating instructions and pay
close attention to the safety instructions.
■ Checking the oil level of the engine.
Do not use the appliance if the oil level has fallen below "MIN".
■ Add oil as required.
■ Fill the fuel tank
with unleaded petrol.
Do not use a 2-stroke mixture.
Adding fuel
DANGER! RISK OF FIRE AND EXPLOSION!
► Never refuel in confined spaces or when the engine is running
or still hot.
► Do not smoke while refuelling.
► Do not use any 2-stroke mixture.
► Do not refuel in the vicinity of open flames or sparks.
► Do not spill fuel – use a funnel.
► Wipe up any spilt fuel.
► After refuelling, close the fuel canister and the tank properly.
♦ Fill the fuel tank with unleaded petrol.
♦ Add fuel up to the red mark.
Water connection
See technical specifications for the connection data.
■ Connect the supply hose (minimum length 7.5 m, minimum diameter
3/4") to the water connection on the appliance and to the water
supply (e.g. tap).
■ Turn on the water supply.
NOTE
► The water supply hose is not included in the delivery.
Drawing water out of a container
DANGER!
► Never draw water from a drinking water container.
Never prime with liquids containing solvents such as paint thinners,
petrol or oil. Atomised spray from solvent is highly flammable,
explosive and toxic.
♦ Connect the suction hose
(diameter at least 3/4") with the filter
(accessories) to the water connection
.
MIN.
MAX.
