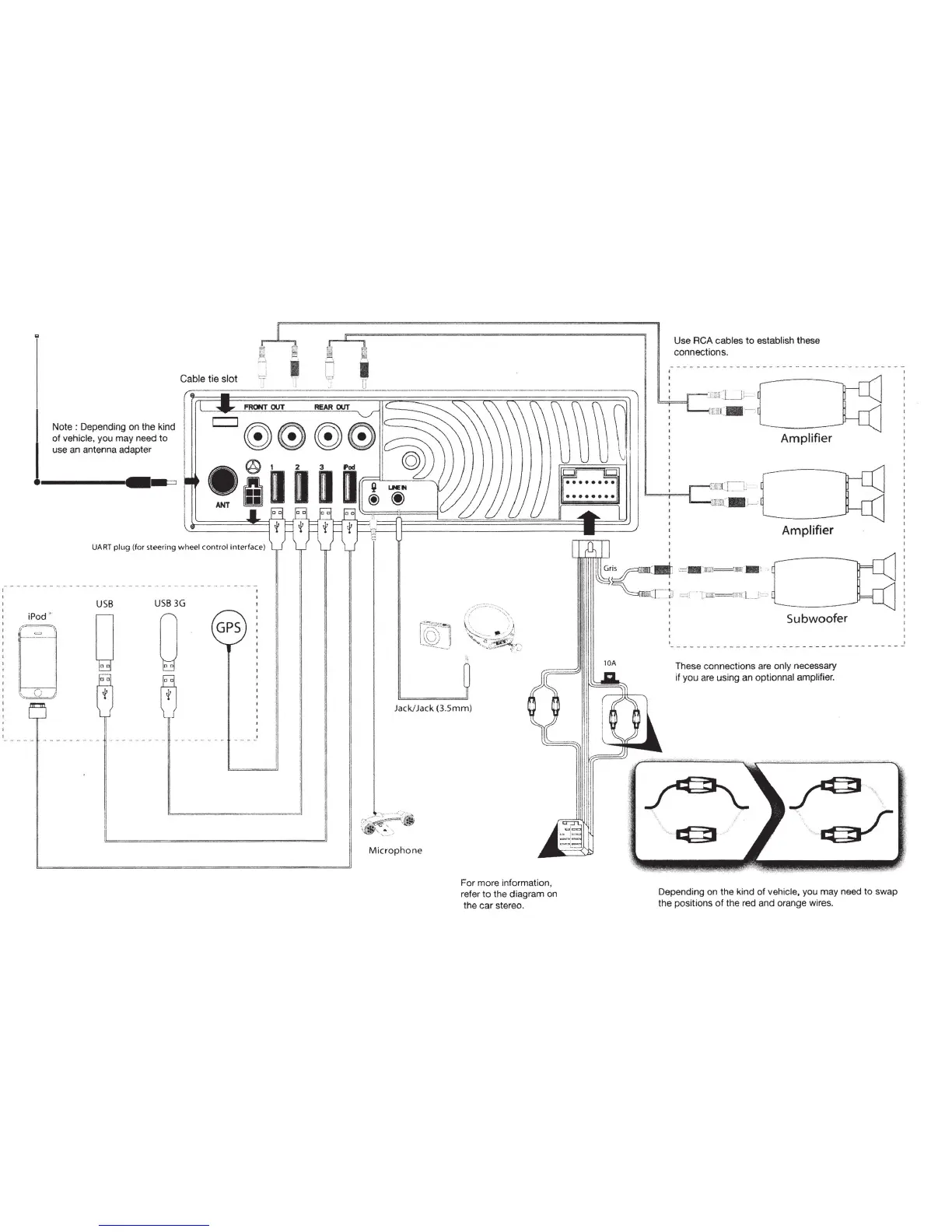

Parrot ASTEROID User Manual

Note : Depending on the kind
of vehicle, you may need to
use an antenna adapter
·----------- .. 1~
Cable tie slot
FRONT OUT
UART plug (f or steering wheel control interface )
USB USB 3G
(1 - i~~ , d ·\ 0 0
i n o
I DO 0
REAR OUT
Jack! Jack (3.Smm)
Microphone
For more informati on,
refer to the diagram on
the car stereo.
Use RCA cables
to establish these
connections.
,- - - - - - - - - - - -- - ---- - - - - - - - -- --- - ---·- ~
:,nl__jl
;n l __ _
Amplifier
Amplifier
, u----r nr 1. _1
Subwoofer
I
__ _ ________ _ ____ _ ____ __ ____ _ _______ J
These connections are only necessary
if you are using an optionnal amplifier.
Depending
on the kind of vehicle, you may need to swap
the positions of the red and orange wires.

Parrot ASTEROID Specifications

General

Equalizer	Yes
Product color	Black
Phonebook capacity	8000 entries
USB version	2.0
Bluetooth version	2.1+EDR
USB ports quantity	1
Display type	TFT
Display diagonal	3.2 \
