ASLD2200 - Instruction Manual
4 Control Settings

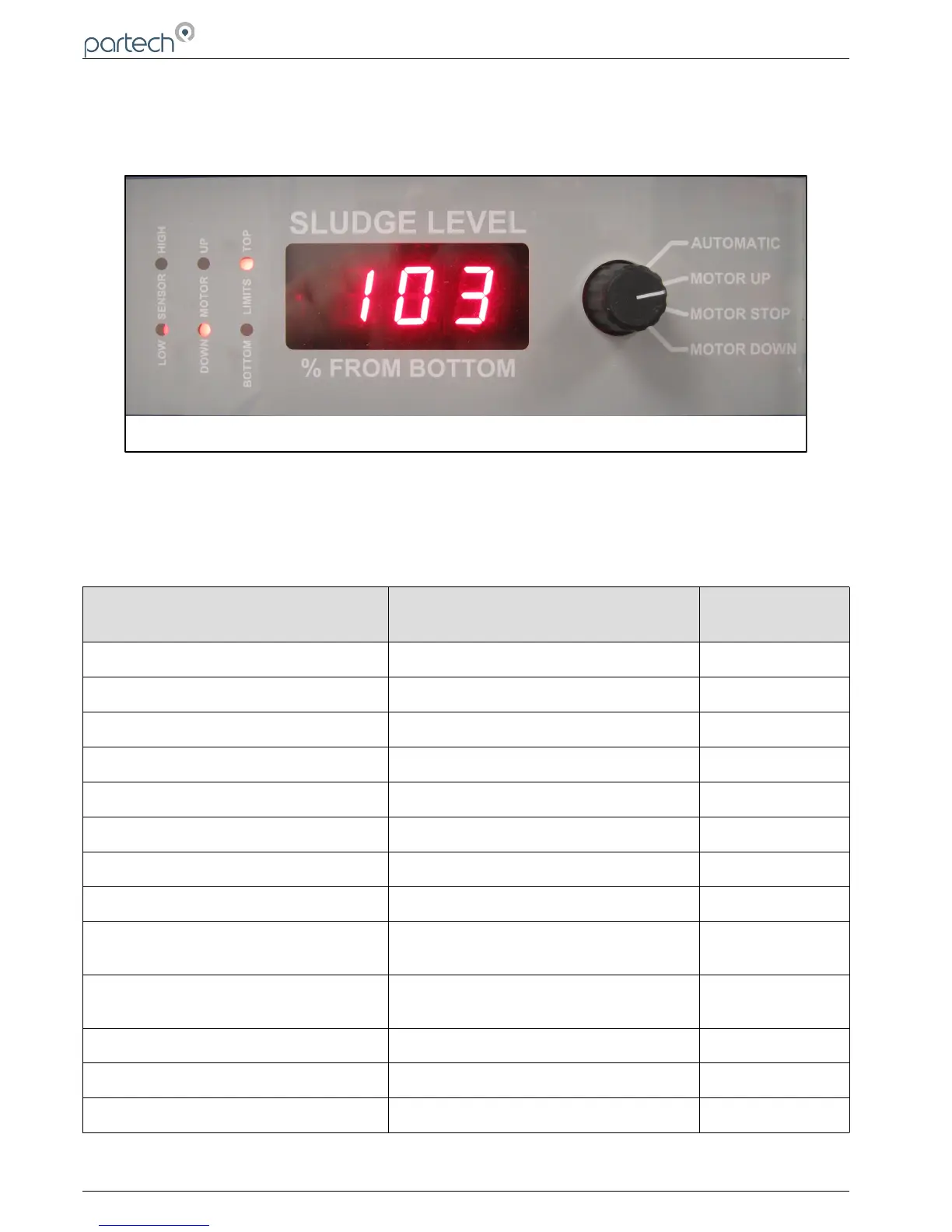

The principle control during operation is the rotary switch; this allows the user to select the following operations
In ‘AUTOMATIC’ mode the instrument will continually monitor the suspended solids density and will move the sensor
up and down to track the sludge blanket interface. The MOTOR UP/DOWN and STOP positions are self-explanatory
and are only used during the setup of the instrument.
On the circuit board there are a number of other controls, the function of these controls is explained in later sections:
Circuit Board Identity Type of Control Use
Zero Push Button Calibration
Top Limit Potentiometer Calibration
Bridge Clearance Potentiometer Scraper Clearance
VR1 - Motor Speed Control Potentiometer Factory setup
VR5 - 20mA Adjustment Potentiometer Factory setup
VR6 - 4mA Adjustment Potentiometer Factory setup
VR8 - 100% Potentiometer Factory setup
VR9 - 0% Potentiometer Factory setup
SW2 - Up Push Button Calibration and
maintenance
SW1 - Down Push Button Calibration and
maintenance
J1 - Link A Jumper Setup
J2 - Link B Jumper Setup
Reset Mode Switch Setup
