ParTech ASLD2200 - Sensor Replacement

ASLD2200 - Instruction Manual
10.4 Sensor replacement
103370IM Issue 10 Date 19/03/2018 Page 21 of 30

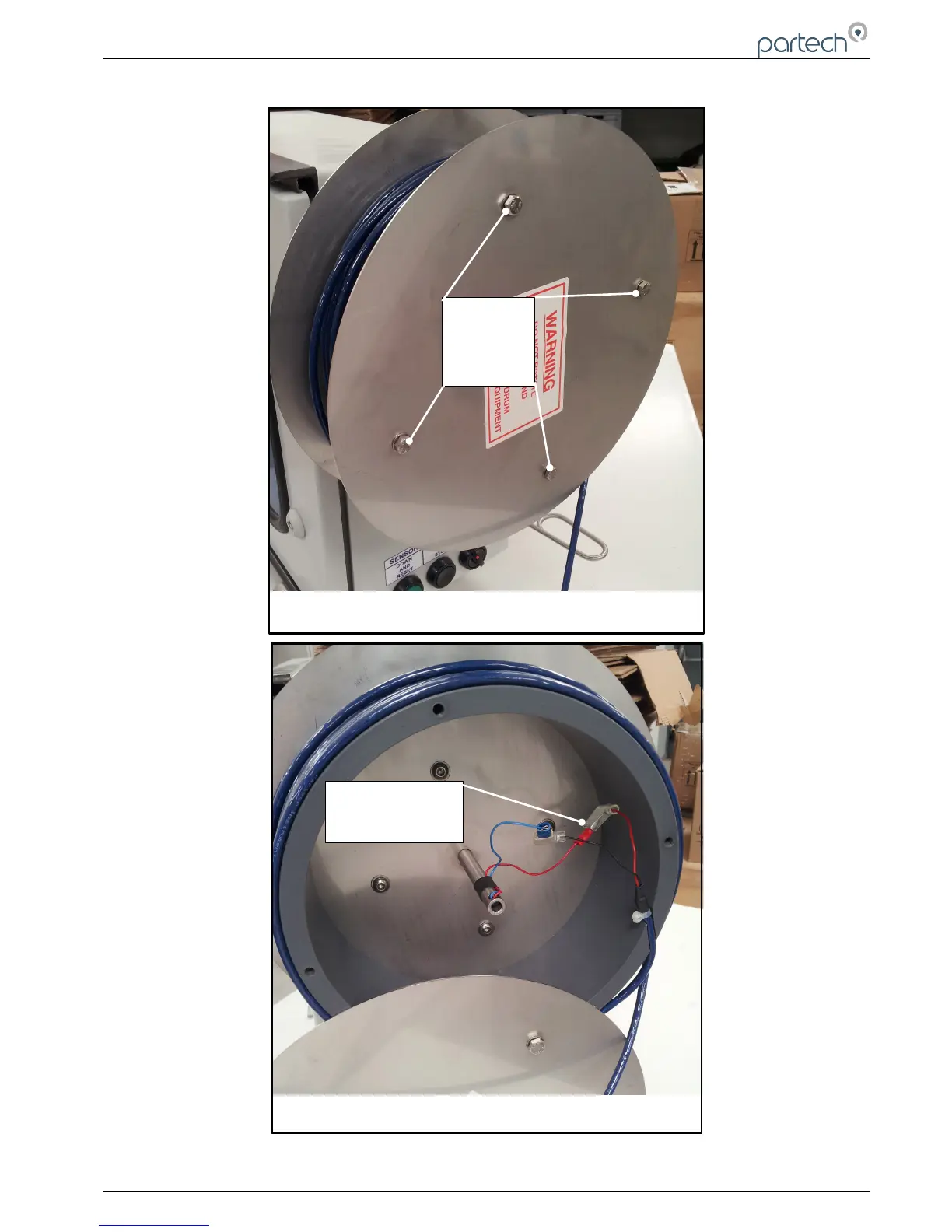

UNSCREW
4 X BOLTS
TO
REMOVE
SIDE PLATE
SIDE PLATE REMOVAL
DISCONNECT
SENSOR SPADE
CONNECTIONS
SENSOR WIRING REMOVAL
