Partner A4-1-K - Page 17

17

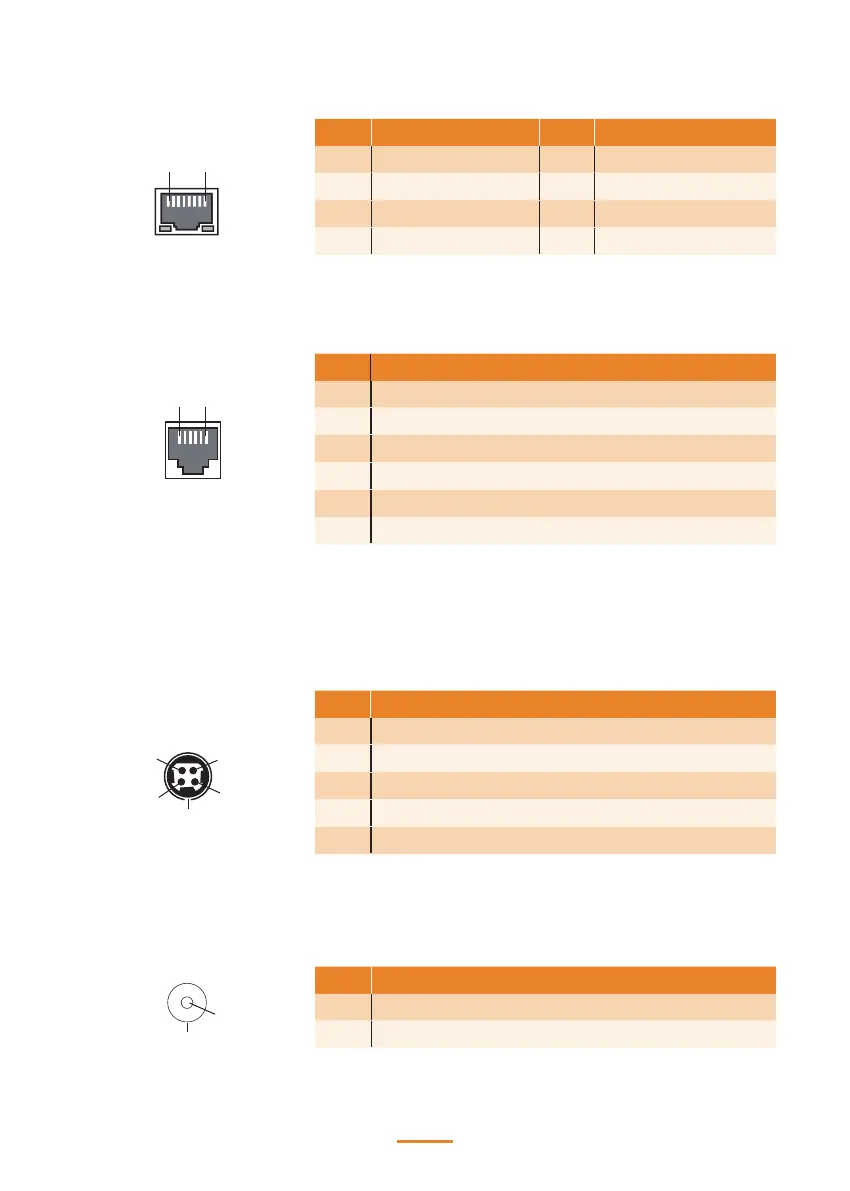

RJ-11 Cash Drawer Connector Pin Dene
1 6
Pin Signal
1 CASEOPEN2
2 CASH1
3 CASEOPEN1
4 24V
5 CASH2
6 GND
*Voltage is selected via JP1
LAN Connector Pin Dene
1 8
Pin Signal Pin Signal
1 TXA+ 5 TXC-
2 TXA- 6 TXB-
3 TXB+ 7 TXD+
4 TXC+ 8 TXD-
DC 12V Input Connector Pin Dene
1
2
3
4
5
Pin Signal
1 V+
2 V+
3 GND
4 GND
5 GND
DC 12V Output Connector Pin Dene
Pin Signal
1 +12V
2 GND
1
2
