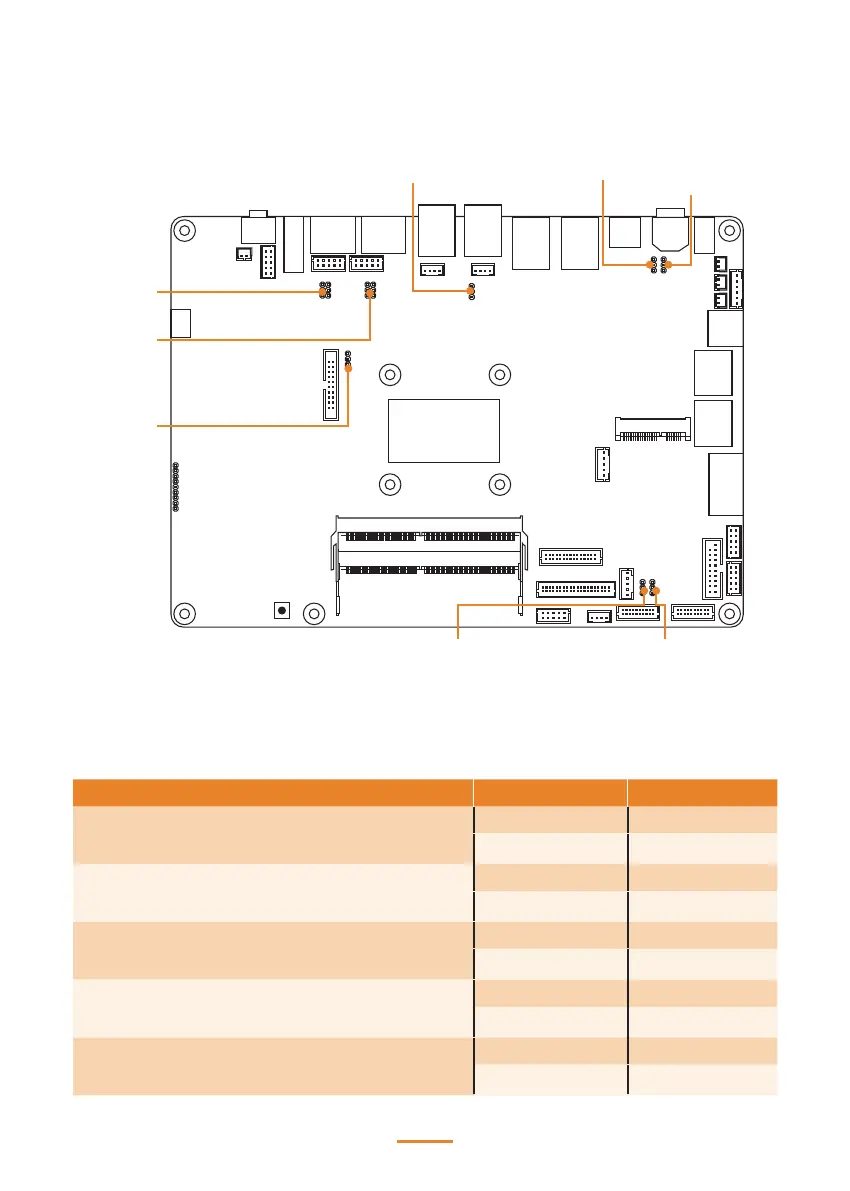

Mainboard Jumper
CMOS Clear
Jumper
LVDS1/LVDS2/EDP1
Backlight VDD Pin
Jumper
LVDS1/LVDS2/EDP1
VDD Select Jumper
COM3 Select
Jumper
COM4 Select
Jumper
Cash Drawer VDD
Select Jumper
Cash Drawer Detach
Select Jumper
Front USB1 Select
Jumper
Jumper Setting Function
CLR_COMS1
(CMOS Clear Jumper)
1-2(Default) Normal
2-3 Clear COMS
JP_BLP1
(LVDS1/LVDS2/EDP1 Backlight VDD Pin Jumper)
1-2 + 5V
2-3(Default) + 12V
JP_LVDDP1
(LVDS1/LVDS2/EDP1 VDD Select Jumper)
1-2(Default) + 3.3V
2-3 + 5V
JP_CDPWR1
(Cash Drawer VDD Select Jumper)
1-2(Default) + 24V
2-3 + 12V
JP_CDCP1
(Cash Drawer Detach Select Jumper)
1-2 GND
2-3(Default) CD2DEC_EN
