Mainboard
Before proceeding, remove
the following FRUs.
• Panel
• Panel Back Cover
1. Disconnect the MSR
PCBA, Power Button,
Speaker, Touch Cable,
VGA Port, LVDS
Cable and LED cable
connectors from the
mainboard.

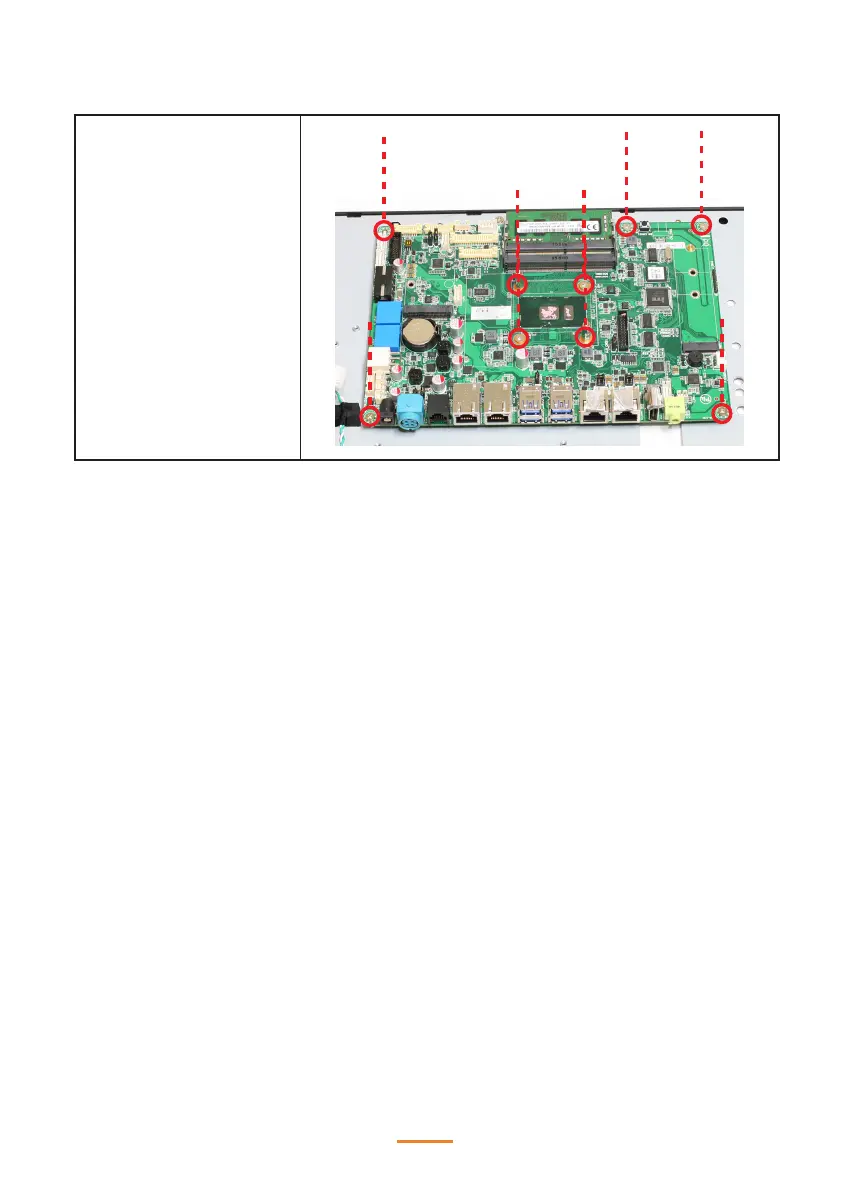

2. Remove all screws from
the mainboard.
3. Remove the mainboard.
