3.0 Technical
Specications
The XTM 201Di, is a compact type machine with integrated wire feed
unit for use with single phase 110/230V supply with smart
input switching.
Process Feature XTM201 Di
Input Voltage 110V +/-10% 230V +/-10%
Hz 50/60 50/60
Phases 1 1
Rated input KVA 3.7
MIG Wire Drive 2 roll
Fuse Rating
(A)
32 16
Current Draw Max(A) 32 18.9
No-load Voltage
V
48V 48V
Rated working
Voltage V
14.5-21 14.5-24
Rated Current A 10-140 10-200
MMA Fuse Rating
(A)
32 16
Current Draw Max(A) 28 19.8
No Load Voltage 45V 45V
Rated Working
Voltage V
20.4-24.4 20.4-28
Rated Current A 10-110 10-200
TIG Fuse Rating
(A)
32 16
Current Draw Max(A) 25.5 19.8
No Load Voltage 45V 45V
Rated Working
Voltage V
10.4-15.6 10.4-18
Rated Current A 10-140 10-200
Duty Cycle
110V input 230V input
MIG 35% 60% 100% 25% 60% 100%
140A 115A 100A 200A 140A 105A
MMA 50% 60% 100% 25% 60% 100%
110A 95A 85A 200A 140A 105A
TIG 60% 100% 25% 60% 100%
140A 115A 200A 140A 105A
4.0 Installation
Read entire installation section before starting installation.
SAFETY PRECAUTIONS
• ELECTRIC SHOCK can kill.
• Only qualied personnel should perform this installation.
• Only personnel that have read and understood the Operating
Manual should install and operate this equipment.
• Machine must be grounded per any national, local or other
applicable electrical regulations.
• The MIG power switch is to be in the OFF position when
installing work cable and torch and when connecting other
equipment.

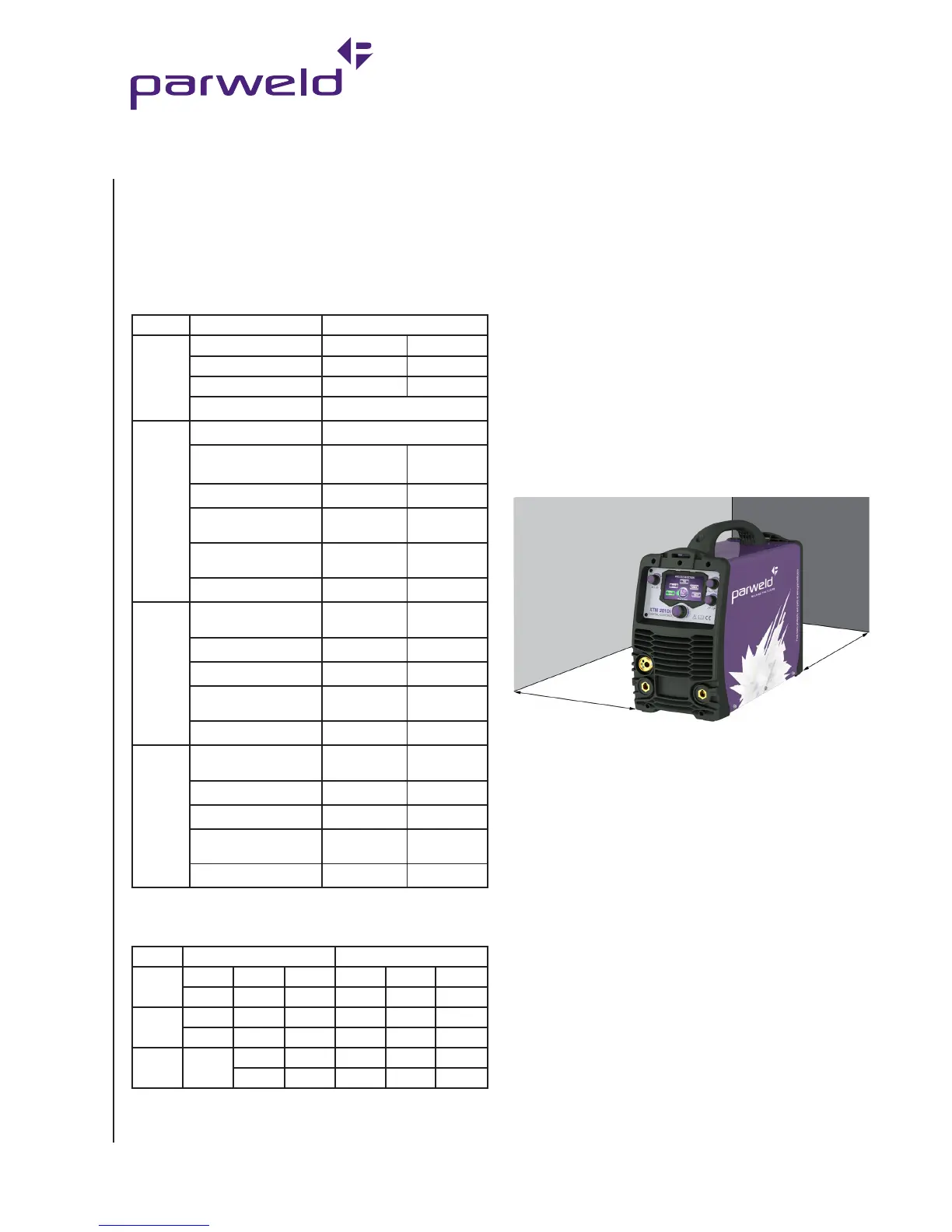

4.1 Location
Position the power source so that its cooling air inlets and outlets are
not obstructed.
A. 100mm (4in.) minimum
B. 100mm (4in.) minimum
4.2 Input and Grounding Connection
WARNING
Before starting the installation, check that your power supply
is adequate for the voltage, amperage, phase, and frequency
specied on the Machine nameplate.
The 110/230 volt 50 Hz machine is supplied with a 3m input cable
and without plug, ensure that you connect a plug that is suitably
rated for the power draw of the machine and the environmental
location.
Have a qualied electrician connect the input plug.
B
A
