Pason WITS - Figure 3: Connecting a WITS Device to a Network Panel; Figure 4: COMM022 Comm Box and Components

Revised May 1, 2019
Revision 25 of DOCU225, © Copyright
Page 11 of 44

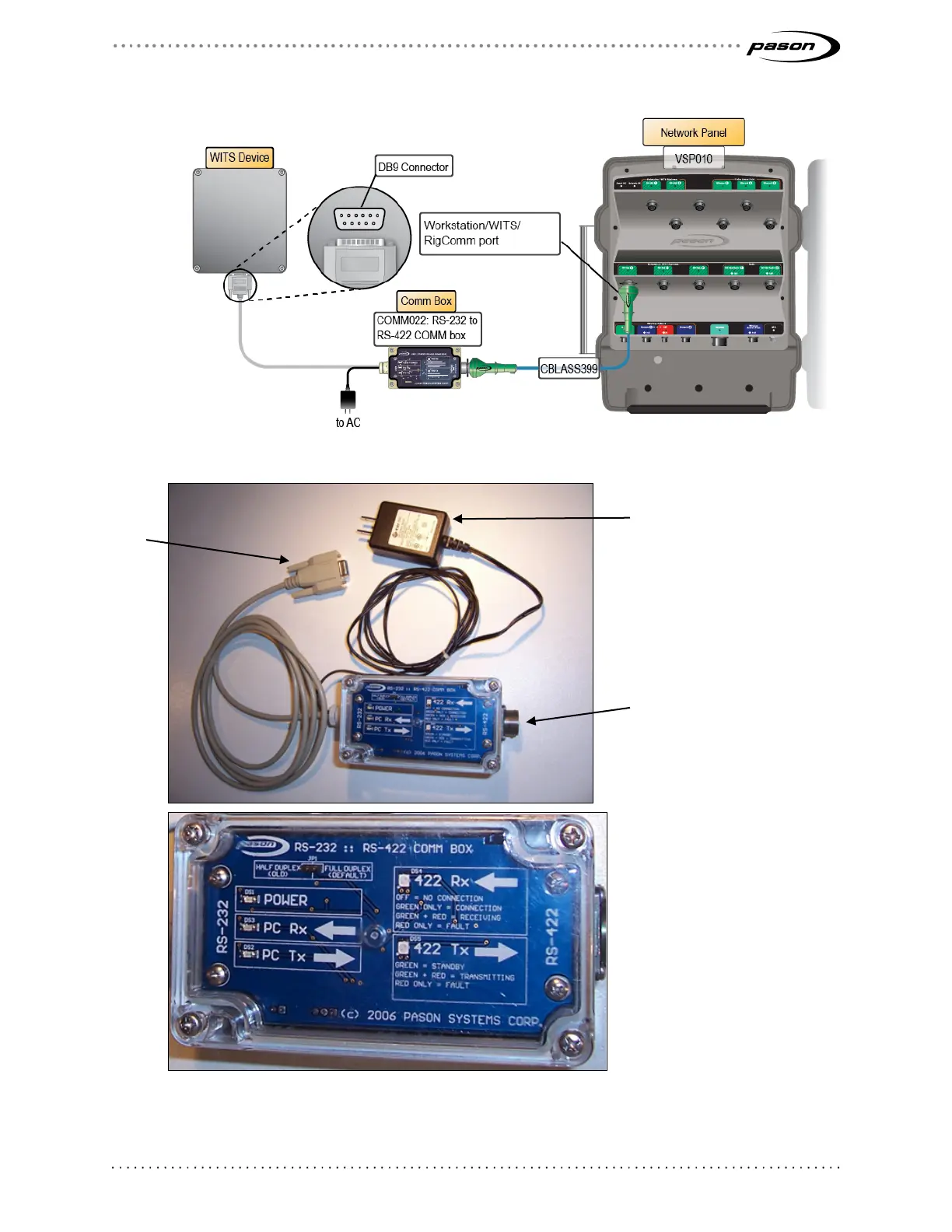

Figure 3: Connecting a WITS device to a network panel
Figure 4: COMM022 comm box and components
DB-9
AC plug
Military 10 pin connector
RS-422
RigComm
