Pason WITS - Figure 19: RS422 Ports Pin-Outs

Revised May 1, 2019
Revision 25 of DOCU225, © Copyright
Page 44 of 44
• Accepts: Plug, male, Amphenol PT06E12-10P or equivalent
The table below lists pins and descriptions for the RS422 port pin-out.
Pin Description
A
TX+
B
TX-
D
RX+
E RX-
J GND
H +12V
G GND
all other pins
unused

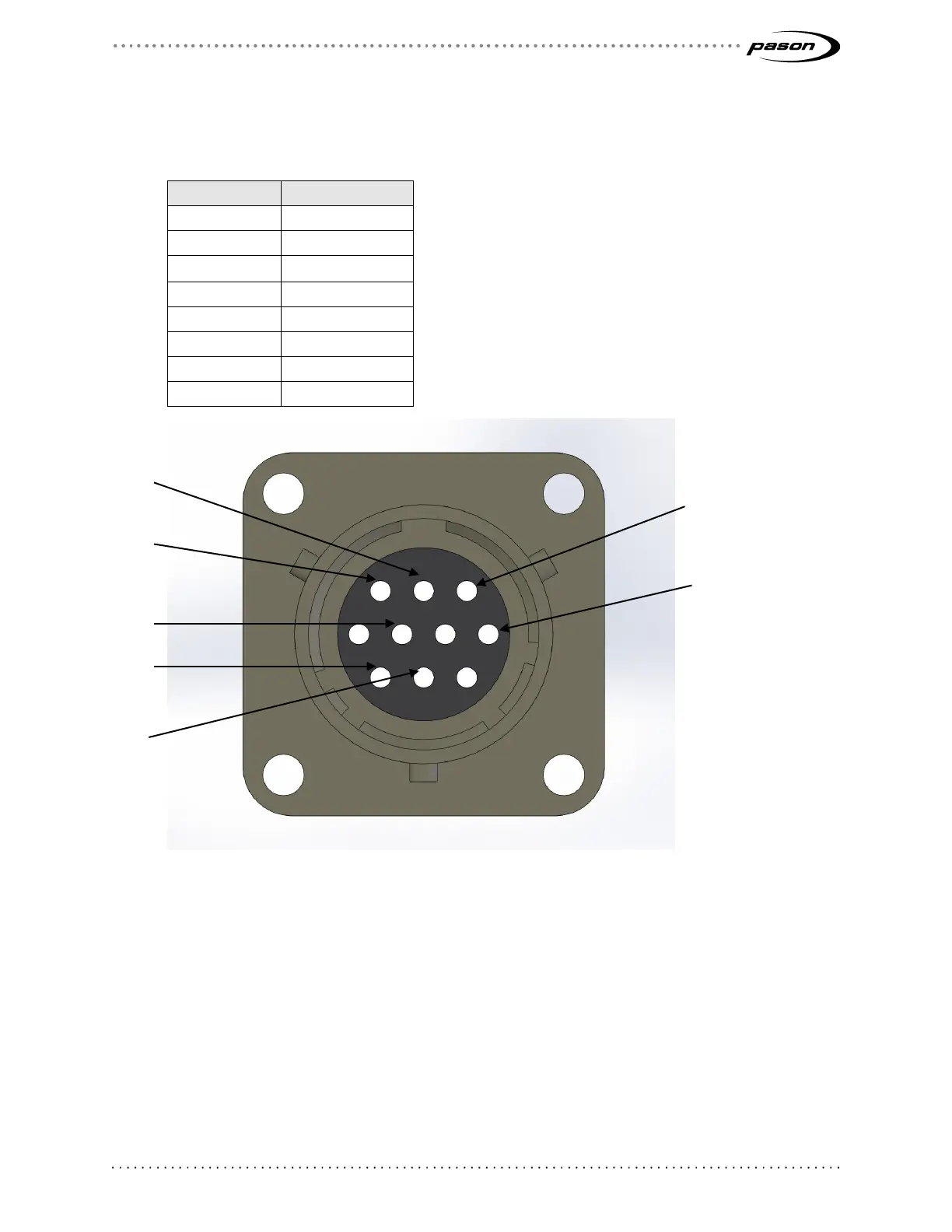

Figure 19: RS422 ports pin-outs
A
B
D
E
J
H
G
