5 Ports
The E700 has ports that enable the terminal to add peripherals such as a cash drawer, an HDMI device,
check reader, and other external devices that enable local terminal downloads/communications and to
provide power. These ports are located underneath and adjacent to the top of the E700 display screen.
5.1 Terminal Ports

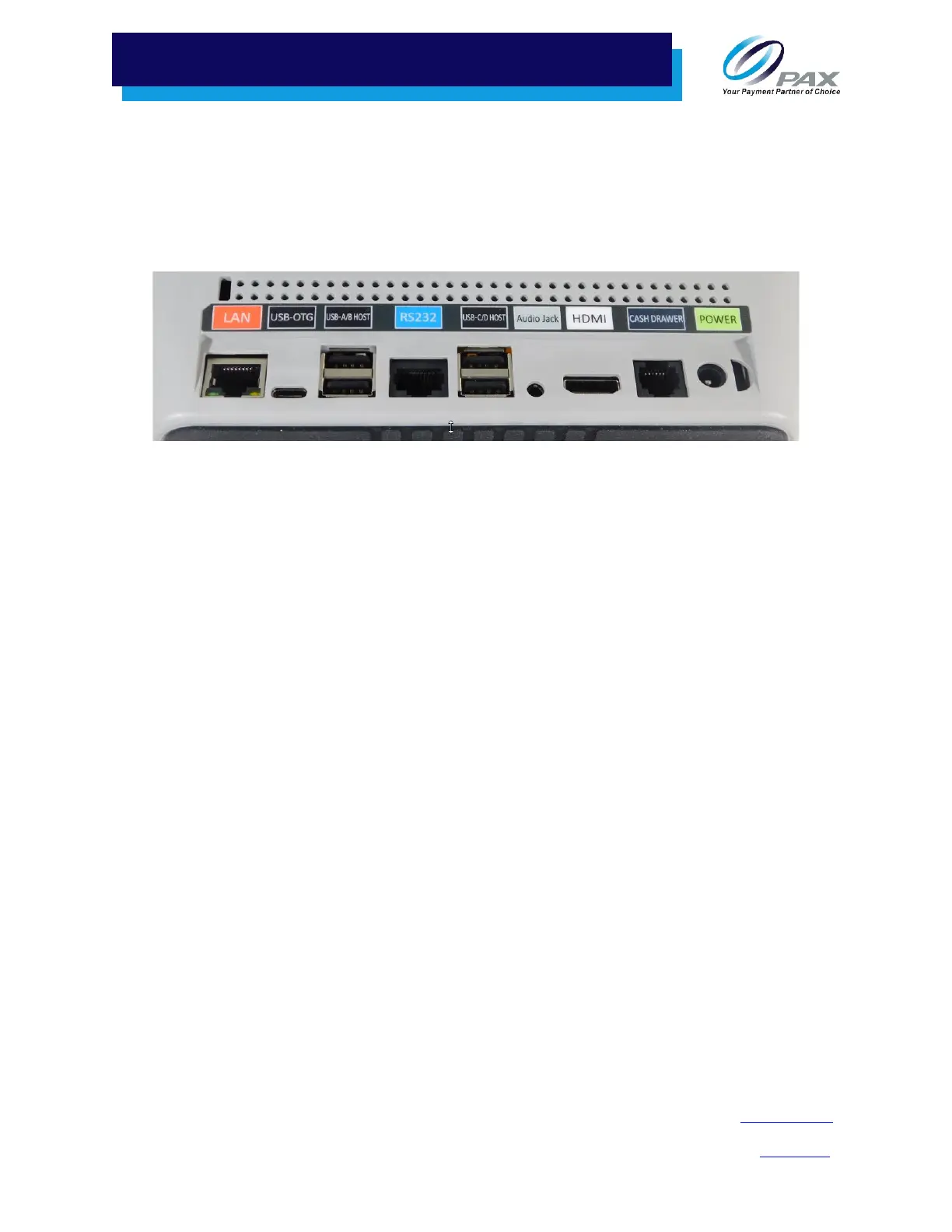

The following ports are available on the terminal:
• LAN – Used to connect the E700 to a Local Area Network.
• USB-OTG – Used for local terminals downloads or external peripherals.
• USB-A/B/C/D Host Ports – Used to connect different USB devices such as a USB drive, USB
keyboard, or mouse. The E700 host acts as a controller and the peripheral, such as a USB drive,
responds to its commands.
• RS232 Port – Used for key injection and to connect the terminal to a modem or printer.
• Audio Jack – Allows the hearing impaired to connect an assistive listening device to the terminal.
• HDMI Port – Used to connect the E700 to an external display.
• Cash Drawer Port – Used to connect the E700 to the cash drawer.
• Power Port – Used to connect the power supply to the E700.
6 Terminal Location
Locate the terminal on a countertop, desktop or tabletop. Keep the terminal away from direct sunlight,
excessive dust, moisture, and heat. Avoid locating the terminal near electrical devices that might
introduce interference such as microwave ovens and blow dryers.
