Payne PH1S - ARI Capacities

ARI* CAPACITIES
OUTDOOR

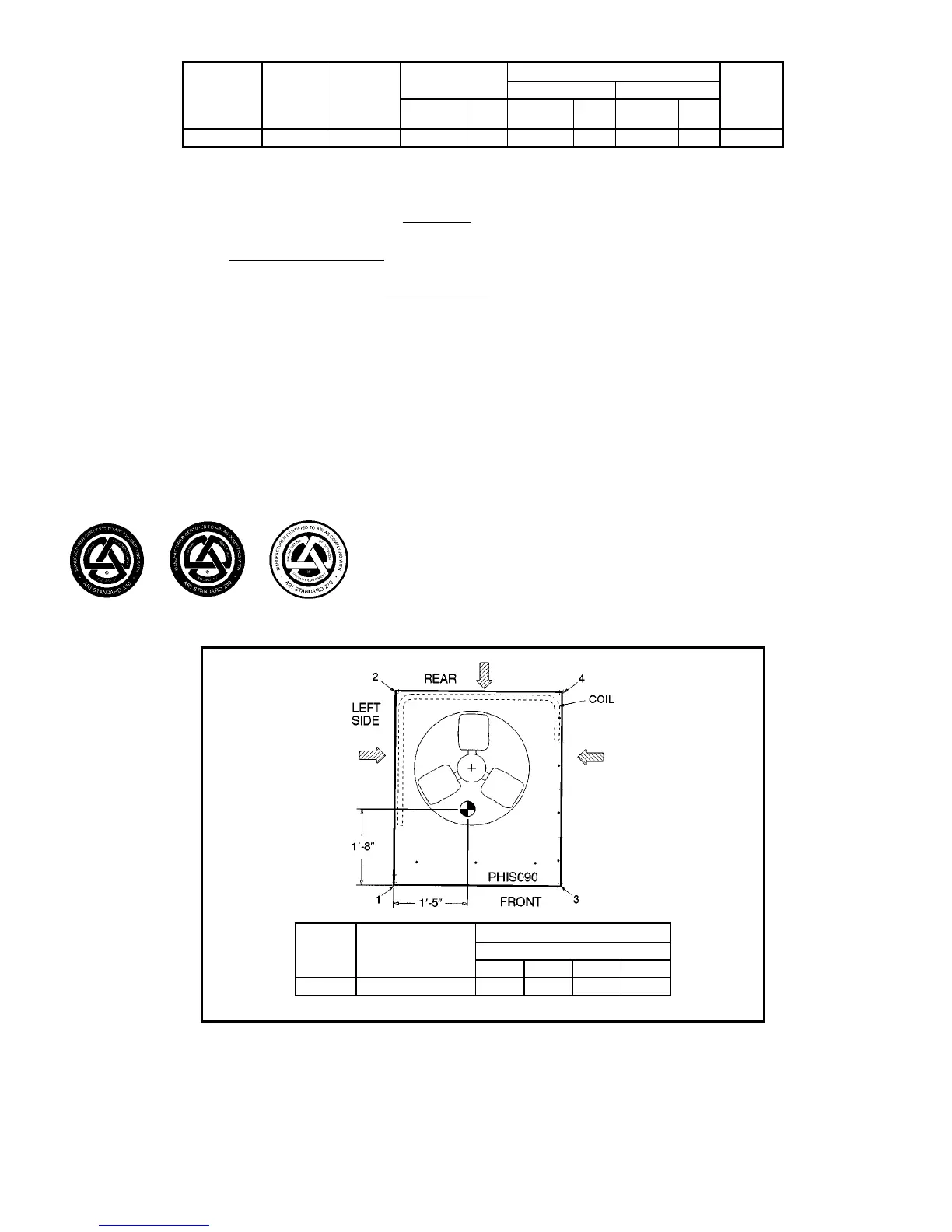

UNIT
PH1S
INDOOR
UNIT
PF1B
AIRFLOW
(Cfm)
COOLING
HEATING
SOUND
RATING
(Bels)
Hi-Temp Low-Temp
Net Cap.
(Btuh)
EER
Net Cap.
(Btuh)
COP
Net Cap
(Btuh)
COP
090 090 3000 86,000 9.8 83,000 3.0 46,000 2.0 9.2
LEGEND
Bels — Sound Level (1 bel = 10 decibels)
Cap. — Total Net Capacity (1000 Btuh)
Btuh Output
COP — Coefficient of performance = or
Btuh input
(Based on ARI conditions)
Btuh output
Unit Power Input × 3.413
Btuh
EER — Energy Efficiency Ratio = (Based on ARI conditions)
Unit Power Input
*Air Conditioning & Refrigeration Institute.
NOTES:
1. Standard ratings are net values, reflecting the effects of circulating fan heat.
Supplementary electric heat is not included. Ratings are based on:
Cooling Standard: 80 F db (dry bulb), 67 F wb (wet bulb) indoor entering-air
temperature and 95 F db entering-air outdoor unit.
Hi-Temp Heating Standard: 70 F db indoor entering-air temperature and
47 F db/43 F wb entering-air outdoor unit.
Lo-Temp Heating Standard: 70 F db indoor entering-air temperature and
17 F wb/15 F db entering-air outdoor unit.
Rated in accordance with ARI Standard 210/240-89.
2. Sound ratings are in accordance with ARI Standard 270-84.
UNIT
PH1S
OPERATING
WEIGHT (Total)
WEIGHT (lbs)
Leg Location
1234
090 540 175 133 132 100
Weight Distribution
5
