Payne PH1S - Dimensions - Indoor Unit

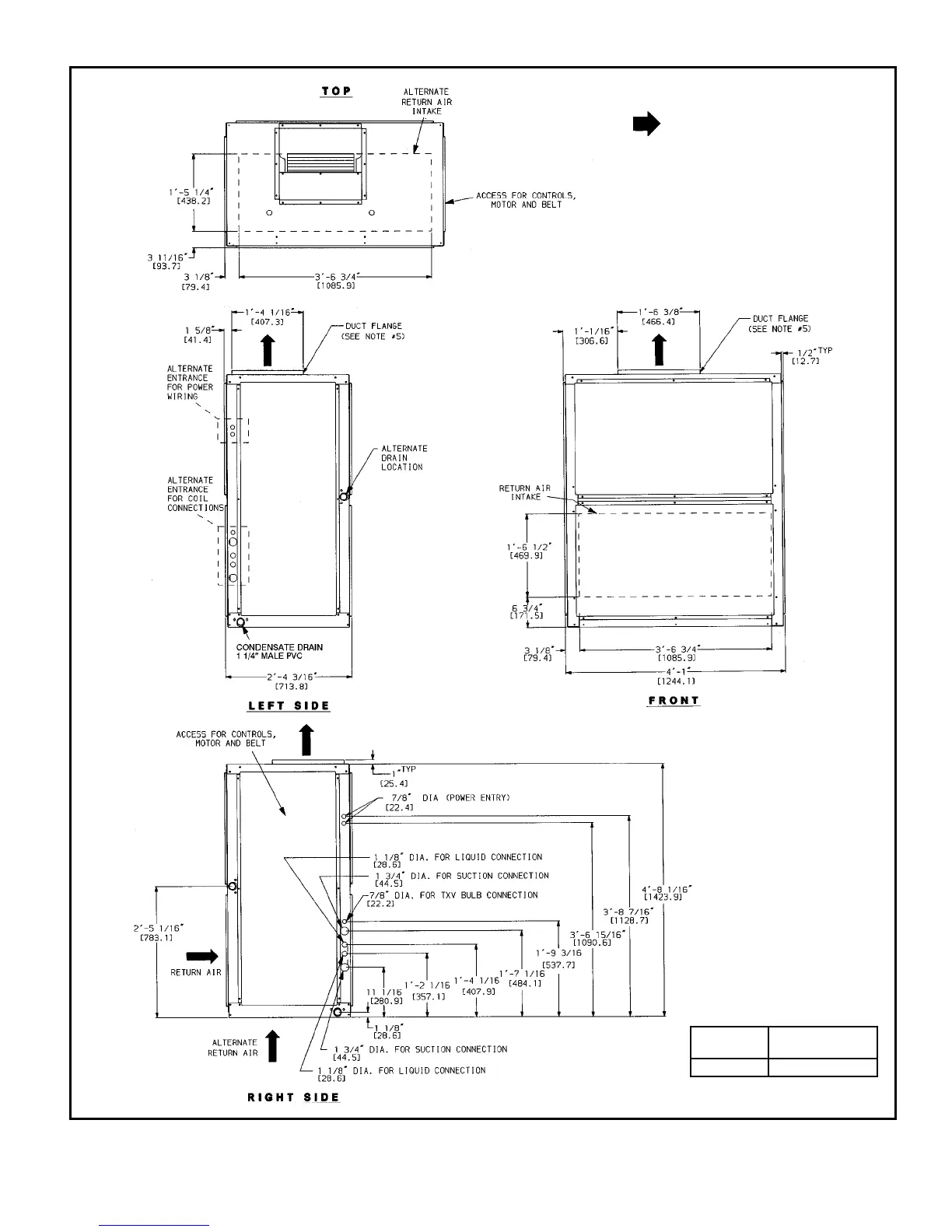

DIMENSIONS — INDOOR UNIT
UNIT
UNIT WEIGHT
(lb)
PF1B090 385
NOTES:
1. Dimensions in [ ] are in millimeters.
2. Direction of airflow.
3. Recommended clearance:
• Rear: 39
• Front: 28-69
• Right Side: 28-69
• Left Side: 28-69
• Local codes or jurisdiction may prevail.
4. Liquid piping not supplied.
5. Duct flange is factory supplied and field
installed.
PF1B090
9
