Page 35
Ph: 804.227.3023
10511 Old Ridge Rd. Ashland, VA 23005
4LHD/4LHDX Application Manual
Powertrain Control Solutions
REV 1.1

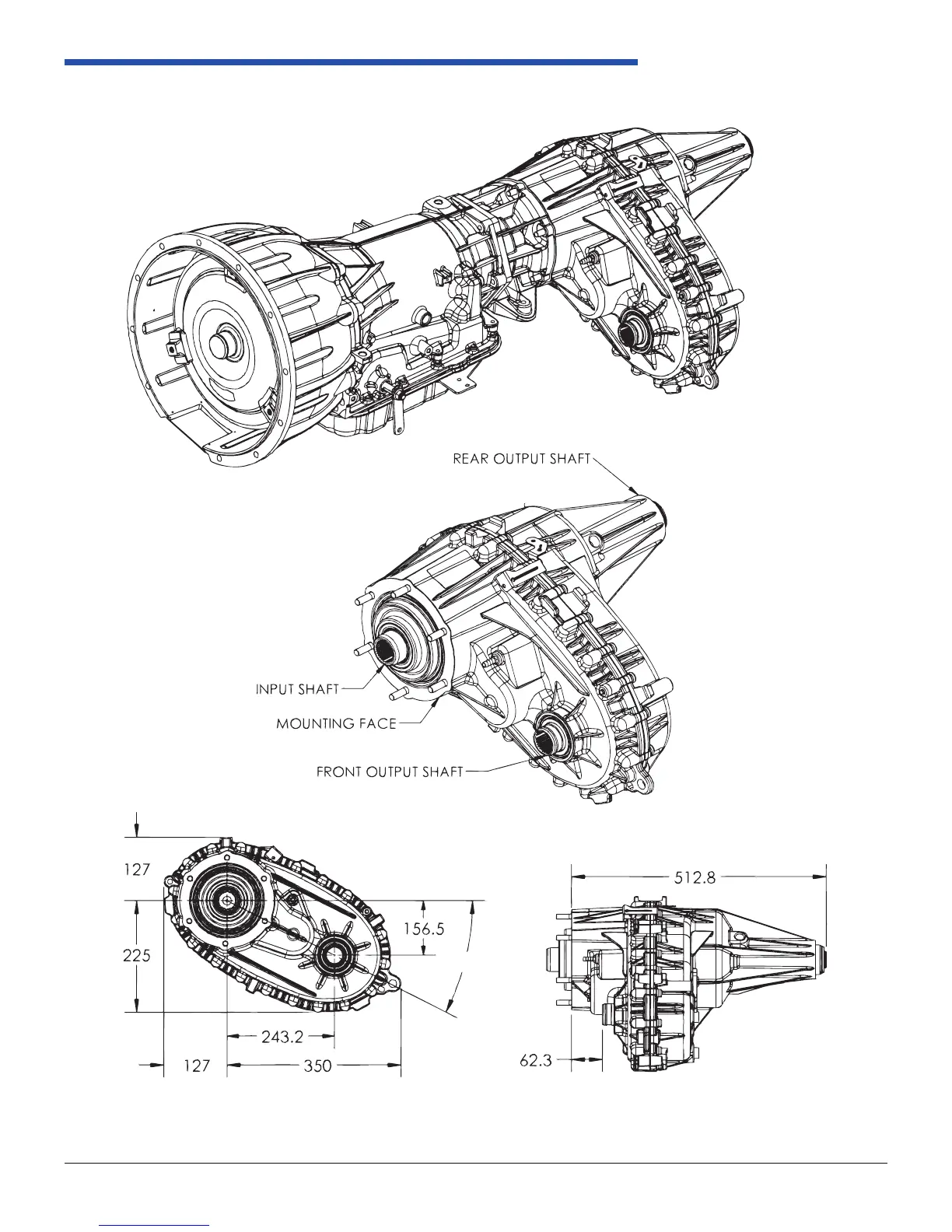

Figure 2.2.3-3: GM 4WD Transfer Case
