SeeGull CW Transmitter User Guide
Rev. D PCTEL 11
4 General Operations
4.1 Preparations
Steps:
1. Connect the charger if needed. Note: use only supplied charger. Using other chargers
may damage the CW Transmitter and void the warranty.
2. Power on the device by holding down the ON button for one second.
3. Connect antenna(s) to device.
4.2 Menus

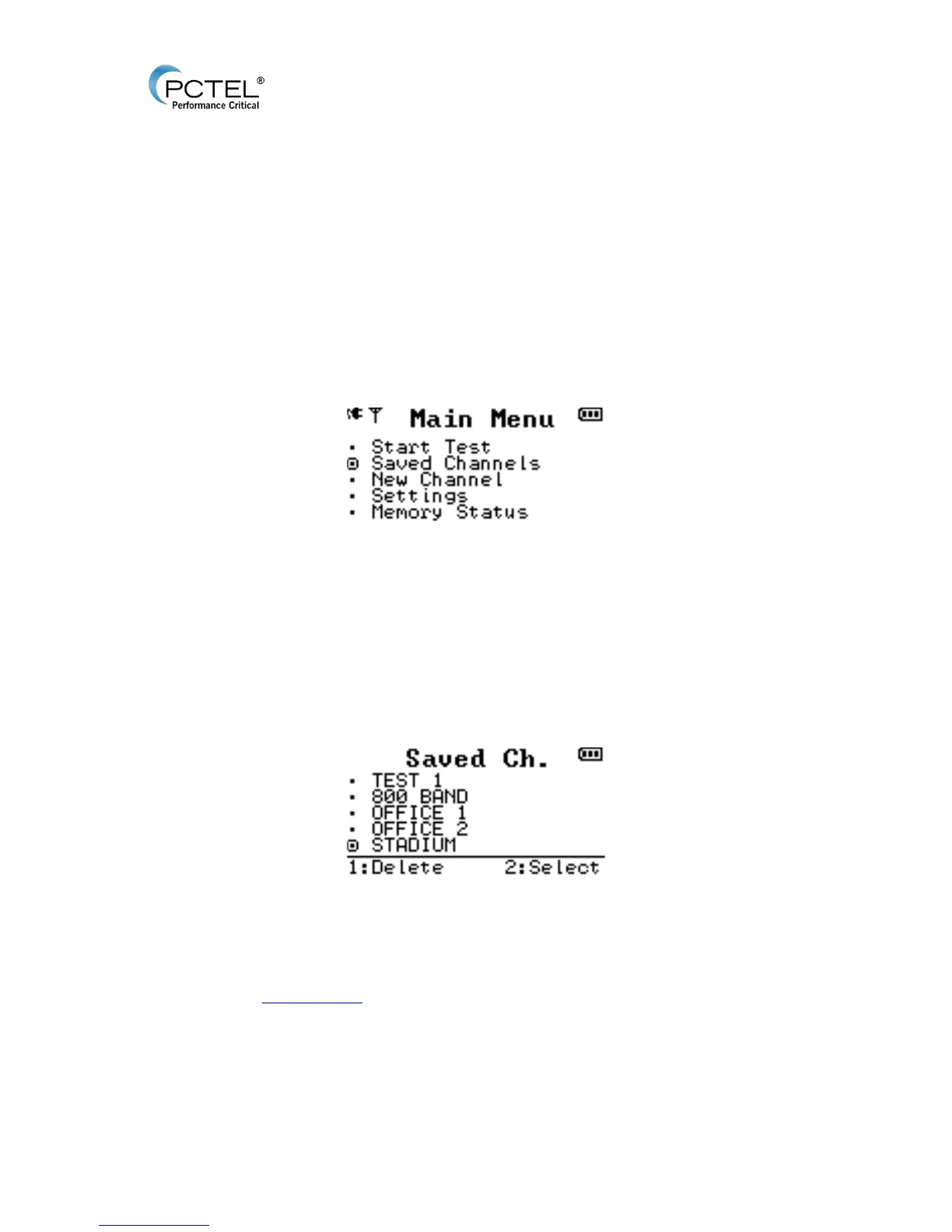

Figure 5 - Main Menu
From the Main Menu, there are five major sub menus:
4.2.1 Start Test:
This will recall all configurations for the last test setup, including: Mode, Freq, Amp, and active
ports. All items can be modified to meet current testing parameters.
4.2.2 Saved Channels:
Figure 6 - Saved Channels Menu
This menu contains saved test channels including all previously saved configurations. Up to 24
channels can be stored at a time.
• From the saved channel
list, highlight the desired channel with the Arrow Keys:
o Press Keypad-1 to delete.
o Press Keypad-2 to start RF transmission with these settings, or press RF ON.
To Next Page
