PDG Mobility Stellar Series - Armrests

PAGE 22
Class 1 Medical
Rev. 2

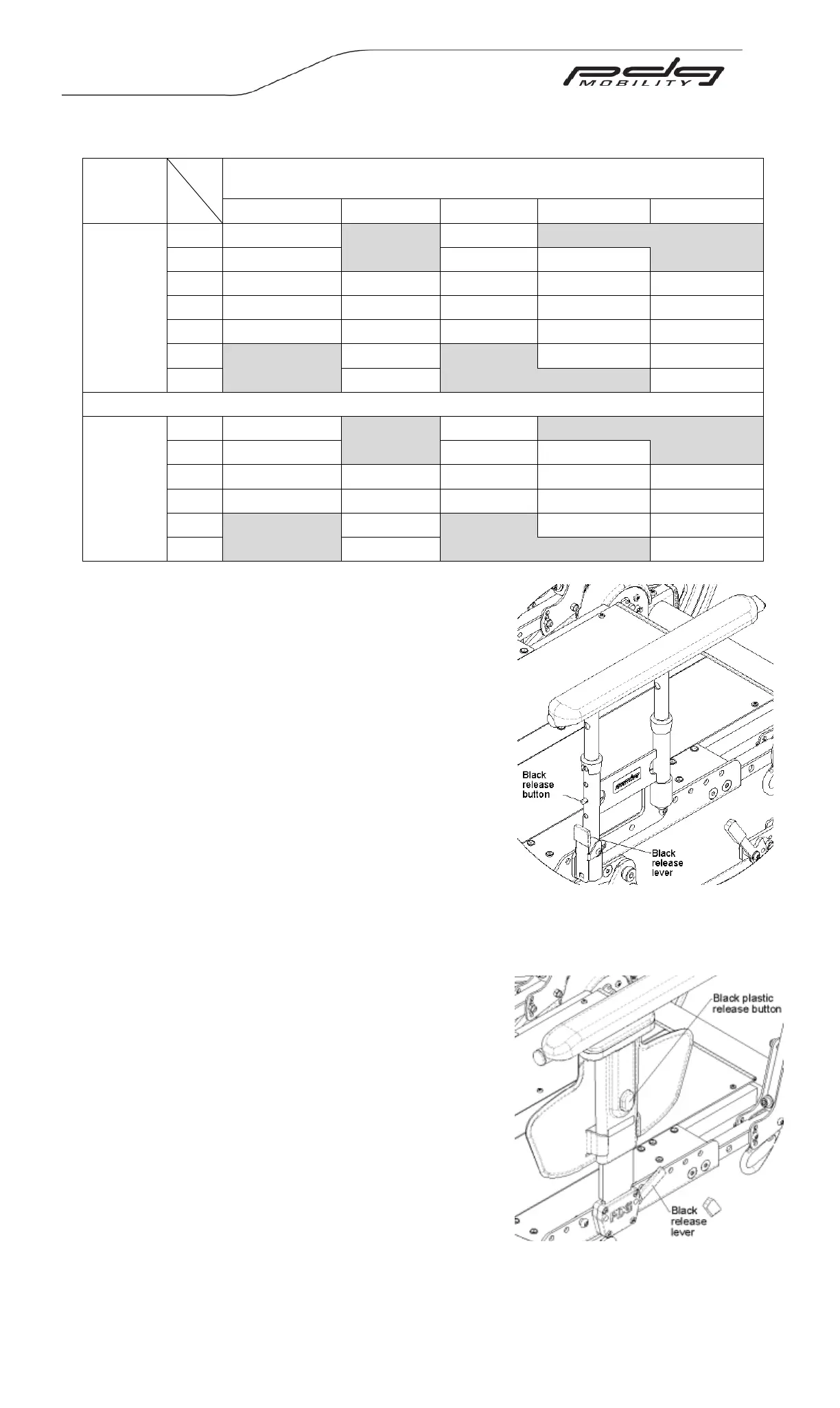

Figure 14.8: Adjusting armrest
height for dual post armrests
Table 14.1: Stellar and Stellar GL Sub frame hole positioning chart
Wheel Size
12”
16”
20”
22”
24”
Stellar
14”
A
A
15”
B
B
A
16”
C
A
C
B
A
17”
D
B
D
C
B
18”
E
C
E
D
C
19”
D
E
D
20”
E
E
Stellar
GL/
Stellar
LT
13”
A
A
14”
B
B
A
15”
C
A
C
B
A
16”
D
B
D
C
B
17”
C
D
C
18”
D
D
14.5 Armrests
14.5.1 Dual Post Arms
Adjusting Armrest Height
Press the release button on the front tube of the
armrest (Refer to Figure 14.8). Adjust armrest to
desired height. The armrest height will lock when
the release button pops out of the desired armrest
height adjustment hole.
Removing Armrests
Release the armrest assembly by depressing the
release lever on the front of the armrest (just above
the seat pan) while pulling the armrest upwards.
14.5.2 Single Post Arms
Adjusting Armrest Height
Unlock the armrest by depressing the plastic release
button on the side of the armrest while moving the
armrest up or down (Refer to Figure 14.9). Adjust
armrest to desired height. The armrest height will
lock when the release button pops out of the side of
the armrest.
Removing Armrests
Release the armrest assembly by lifting up on the
release lever of the armrest receiver mounted to the
upper frame while pulling the armrest up.
Figure 14.9: Adjusting armrest
height for single post arm
