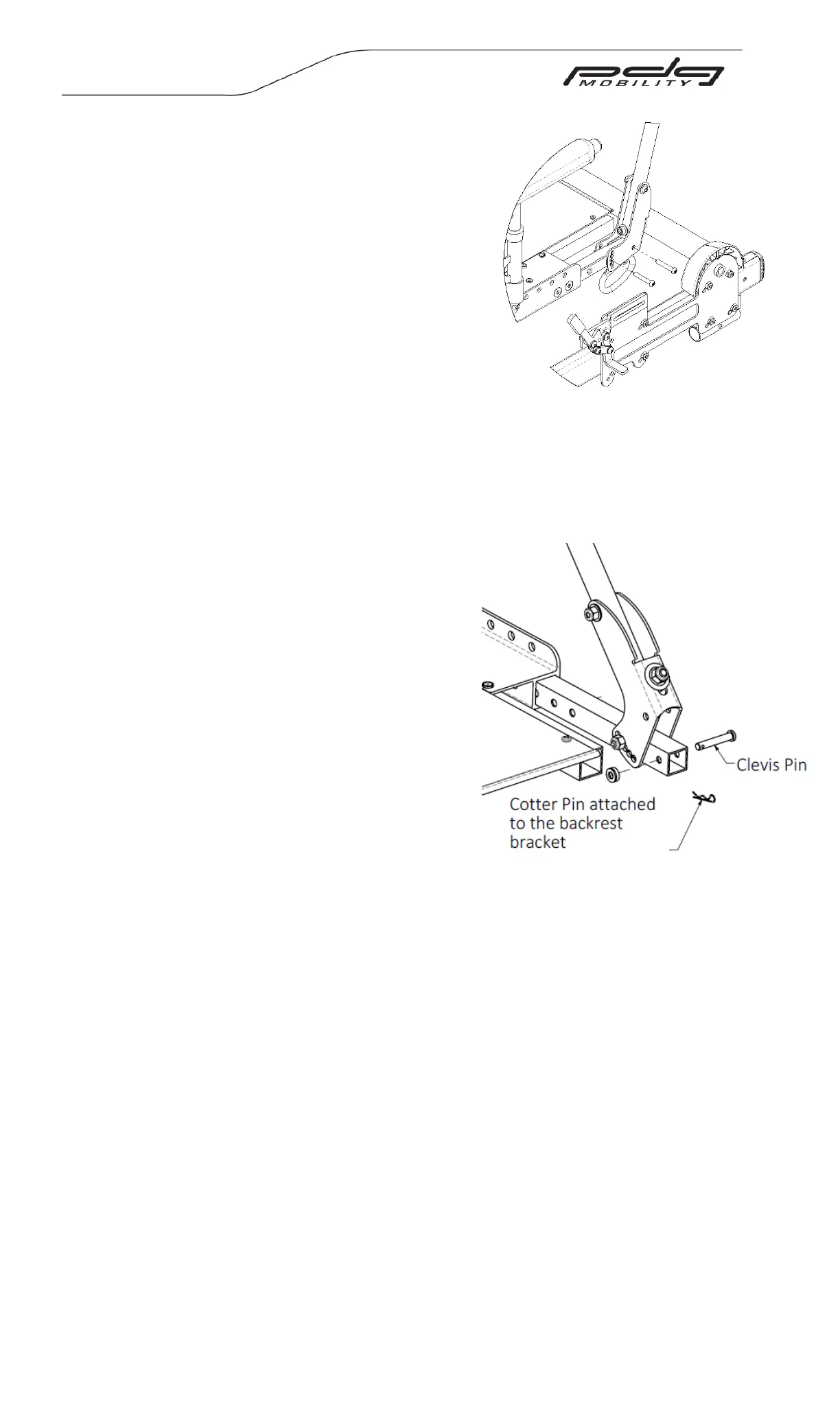

Figure 14.26: Adjusting seat to back angle
Figure 14.27: Fold-down backrest
2. Adjust the bracket to the desired angle and
re-install the bolts
3. Retighten all the nuts.
NOTE – The locknuts should be re-used no more
than five (5) times to ensure locking material
grips. If locknuts are worn, please replace them.
14.8.2 Fold Down Backrest (Not compatible with Reclining Back)
The wheelchair is available with the option of a
fold down backrest designed to facilitate chair
storage and transport.
To fold down the backrest:
WARNING - Ensure the chair is not occupied
before folding down the backrest.
1. Remove the armrests from the armrest
receivers (see section 14.5 for instructions).
2. Disengage the clevis pin by pulling out the
cotter pin that is attached to the backrest
bracket. (see Figure 14.27)
3. Once both clevis pins are disengaged, push
the pushbar forward to fold down the
backrest.
WARNING - Ensure clevis and cotter pins are
properly engaged before use
14.9 Rear Wheels
14.9.1 Removing/Installing the Rear Wheels/Axles
1. If the wheelchair is fitted with fixed axles, the rear wheels can be removed using a
¾” socket head and a ¾” crescent wrench or equivalent. The axle bolt heads must
be located on the inside of the frame with the nuts located on the outside of the
rear wheel hubs. If axle bolts are installed backwards, the upper frame may hit the
end of the axle bolts when attempting to tilt the chair. During assembly, tighten
the axle bolts so that the rear wheels are snug but not so much that the wheels are
unable to spin freely.
If quick-release axles have been supplied, push in the tip of the quick-release axle
and remove the axle along with the wheel as shown in figure 14.29.
WARNING - Make sure the detent and locking pins of the quick-release are fully
released BEFORE operating the wheelchair. Keep locking pins clean.
