PAGE 23

Class 1 Medical

Rev. 2

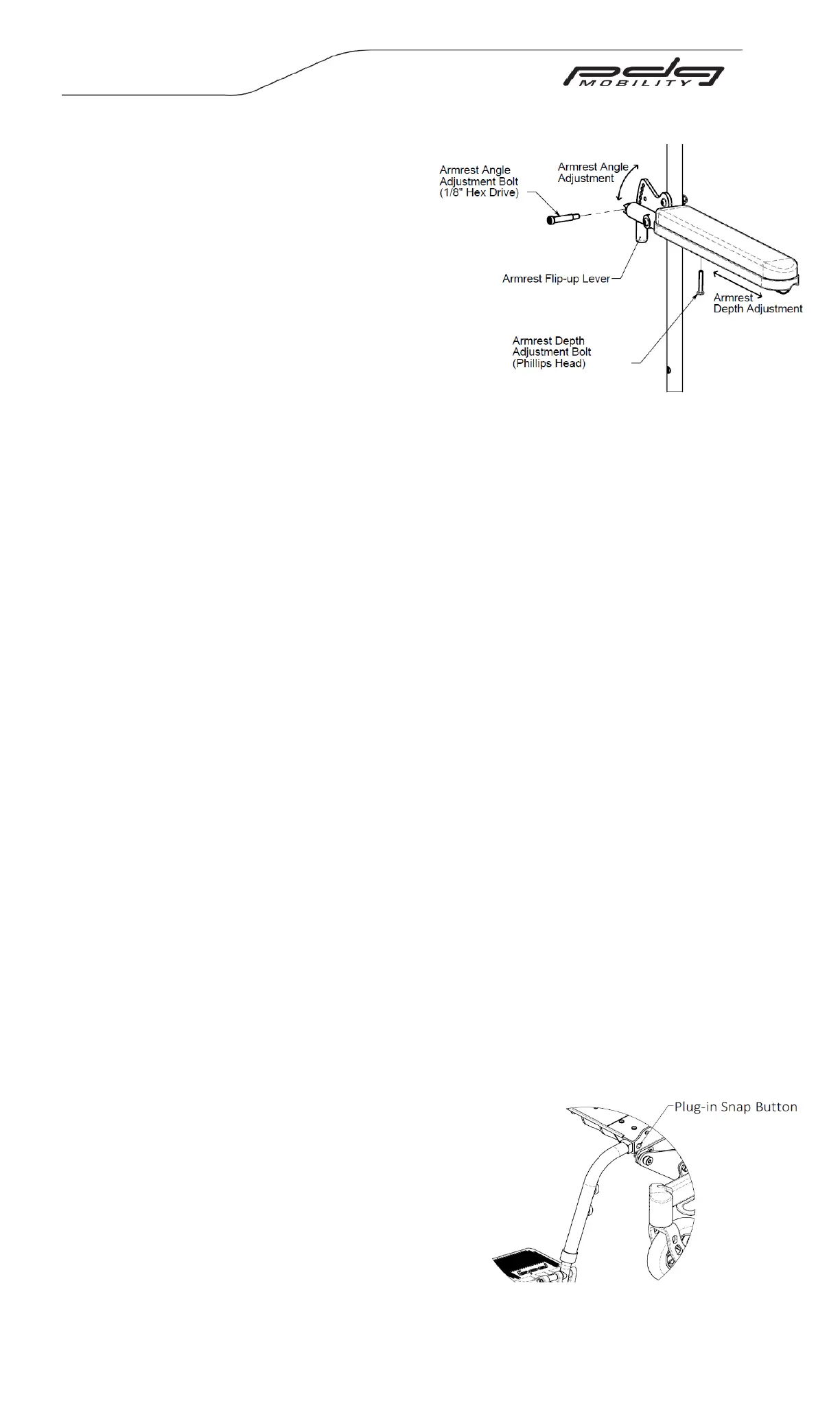

14.5.3 Locking Flip-up Armrest

Adjusting Armrest Angle

Armrest angle can be adjusted either up or down by

repositioning the “Armrest angle adjustment bolt”

(see Figure 14.10) along the array of holes located to

the rear of the armrest.

Adjusting Armrest Depth

Armrest depth can be adjusted by removing

the “Armrest depth adjustment bolt” (see

Figure 14.10) and sliding the armrest forward

or rearward to the desired position. The

“Armrest adjustment bolt” is then fastened

back into place using a Phillips head driver.

Flipping Armrests Back

Release the locking mechanism of the armrest by sliding the flip-up lever forward (see

Figure 14.10). Then rotate the armrest upwards until it clears the backrest. To reset the

armrest into the downward locked position, simply rotate the armrest downward until

the flip-up lever locks into place.

14.5.4 Armrest Pads

Check for rips or breaks. If these are present, replace immediately to maintain

appearance and comfort. If the pad is cracked or retaining screws are stripped, replace

immediately.

14.6 Front Rigging

WARNINGS

♦ After adjustments, always ensure that parts are properly replaced and tightened

BEFORE using the wheelchair.

♦ NOTE – Ensure that the front rigging adjustment does not cause pressure on the

legs at the front of the seat cushion. Such a condition could cause injury to the

occupant.

♦ WARNING - DO NOT ATTEMPT to lift chair by the footrests or leg rests. These

components are designed to separate from the wheelchair.

♦ FRONT RIGGING SHOULD BE REMOVED when entering or exiting from the

wheelchair.

14.6.1 Standard Front Rigging (Legacy) – Plug-in 70°, Swing-Away (60° and 70°),

Swing Away Elevating Legrest (ELR)

Plug-in 70°

Installation and Removal:

a. To mount plug-in style front rigging,

push the snap button located near the
