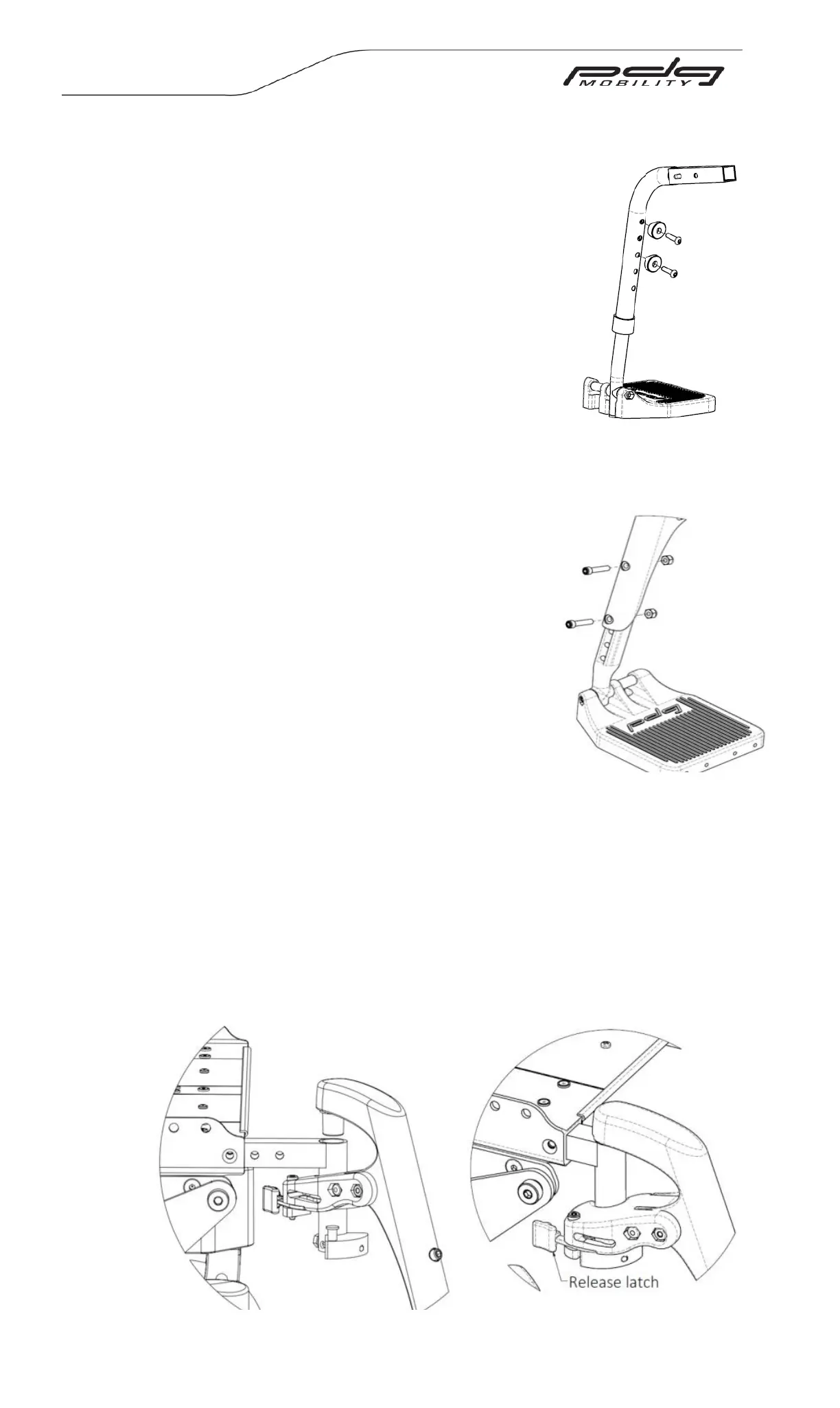

Figure 14.14: Standard Swing-
Away footrest height adjustment
Figure 14.13: Swing-Away Front Rigging Latch Installation and Removal
position when the button ‘pops’ through
hole near the front of the seat rail.
b. To release front rigging push the snap
button and slide front rigging forward
and out of the open square rail tube.
Footrest Height adjustment:
a. Remove the nut, bolt and coved washers
and position the footrest assembly to
the desired height.
b. Line up mounting hole and the
aluminum insert in the footrest tube,
reinstall fasteners and tighten securely.
c. Repeat the procedure for the other
footrest.
Swing-Away (60° and 70°)
Installation:
a. Orient the footrest at approximately 45°
outboard of the wheelchair as shown in
figure 14.13
b. Insert footrest mounting pin into the
mounting tube of the hanger.
c. Rotate the footrest inboard until it locks
into place. The footplate will be facing
inboard when locked in place.
d. Repeat this procedure for the other
footrest assembly
Removal:
e. To remove the Swing-Away front rigging, the locking mechanism needs to be
released and the front rigging assembly can then be lifted off of the
mounting hangers.
f. To release the locking mechanism, push the release lever as show in figure
14.13
g. As the lever is pushed, rotate the front rigging outboard and lift the footrest
mounting pin out of the mounting receiver.
Figure 14.12: Standard plug-in front
rigging footrest height adjustment
