PAGE 25
Class 1 Medical
Rev. 2

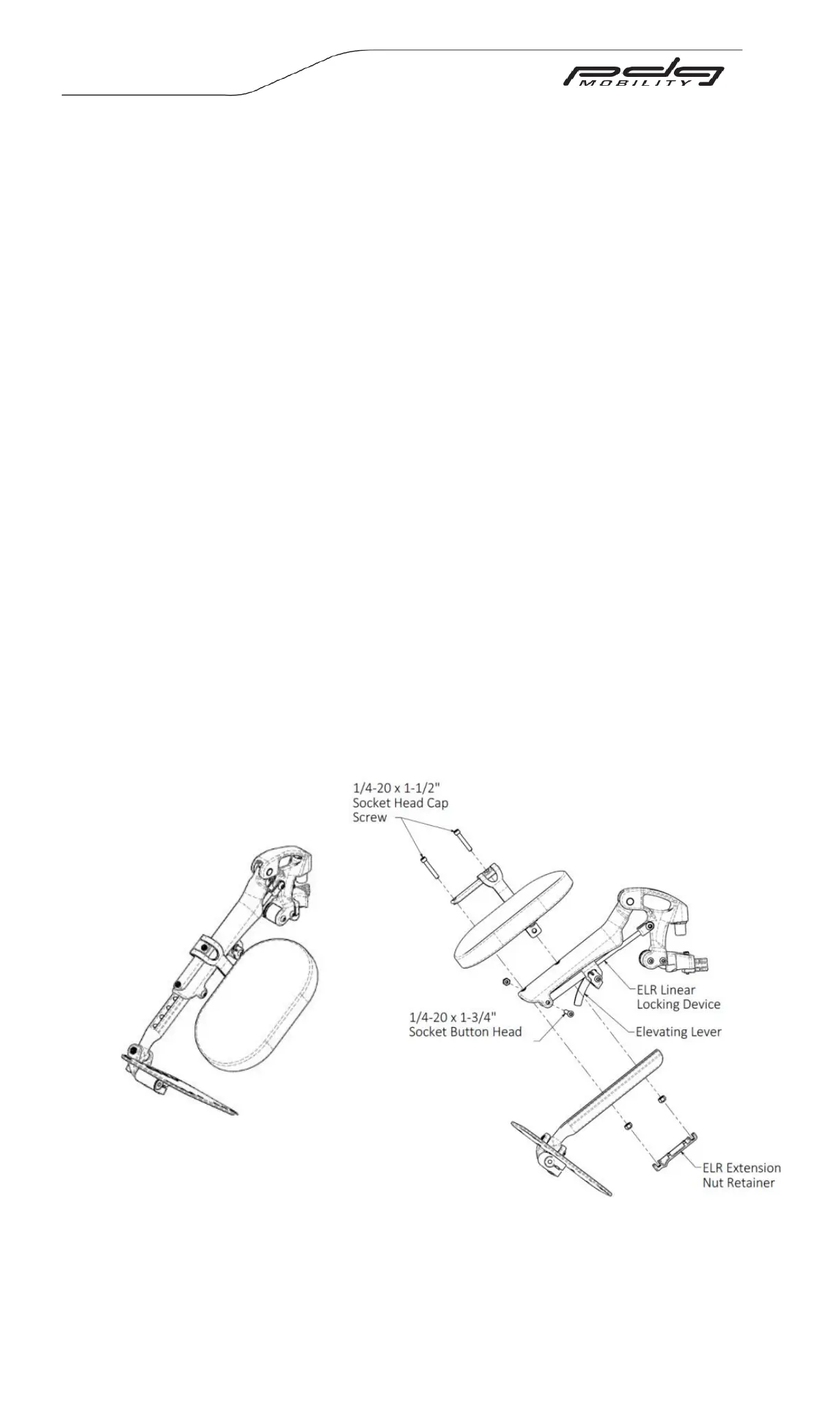

Figure 14.15: Swing-
Away Elevating Legrest
Figure 14.16: Elevating Legrest
Footrest Height adjustment
Footrest Height adjustment
a. Remove any padding and/or calf strap, if fitted. Remove the fastener and
nut as shown in figure 14.14
b. Position the legrest assembly to the desired height and line up the mounting
holes.
c. Reinstall the hardware and tighten securely.
d. Repeat this procedure for the other footrest and replace padding and/or calf
strap, if fitted.
Swing Away Elevating Legrest (ELR)
Installation and Removal:
a. The installation and removal of the Elevating Legrest is similar to the Swing-
Away Front Rigging. Refer to the instruction for the Swing-Away front
rigging.
Footrest Height adjustment:
a. Loosen and remove the ¼-20 x 1-3/4” Socket Button Head which holds the
ELR’s linear locking device, shown in figure 14.16.
b. Loosen and remove the two ¼-20 x 1-1/2” Socket Cap Screws which retain
the extension.
c. Adjust the legrest extension to the desired position, line up the mounting
holes and re-install and securely tighten the socket head cap screws.
d. Re-install the ¼-20 x 1-3/4”socket button head in the eyelet of the linear
locking device and securely tighten
e. Repeat the procedure for the other footrest.
