PDG Mobility Stellar Series - Footplates

PAGE 27
Class 1 Medical
Rev. 2

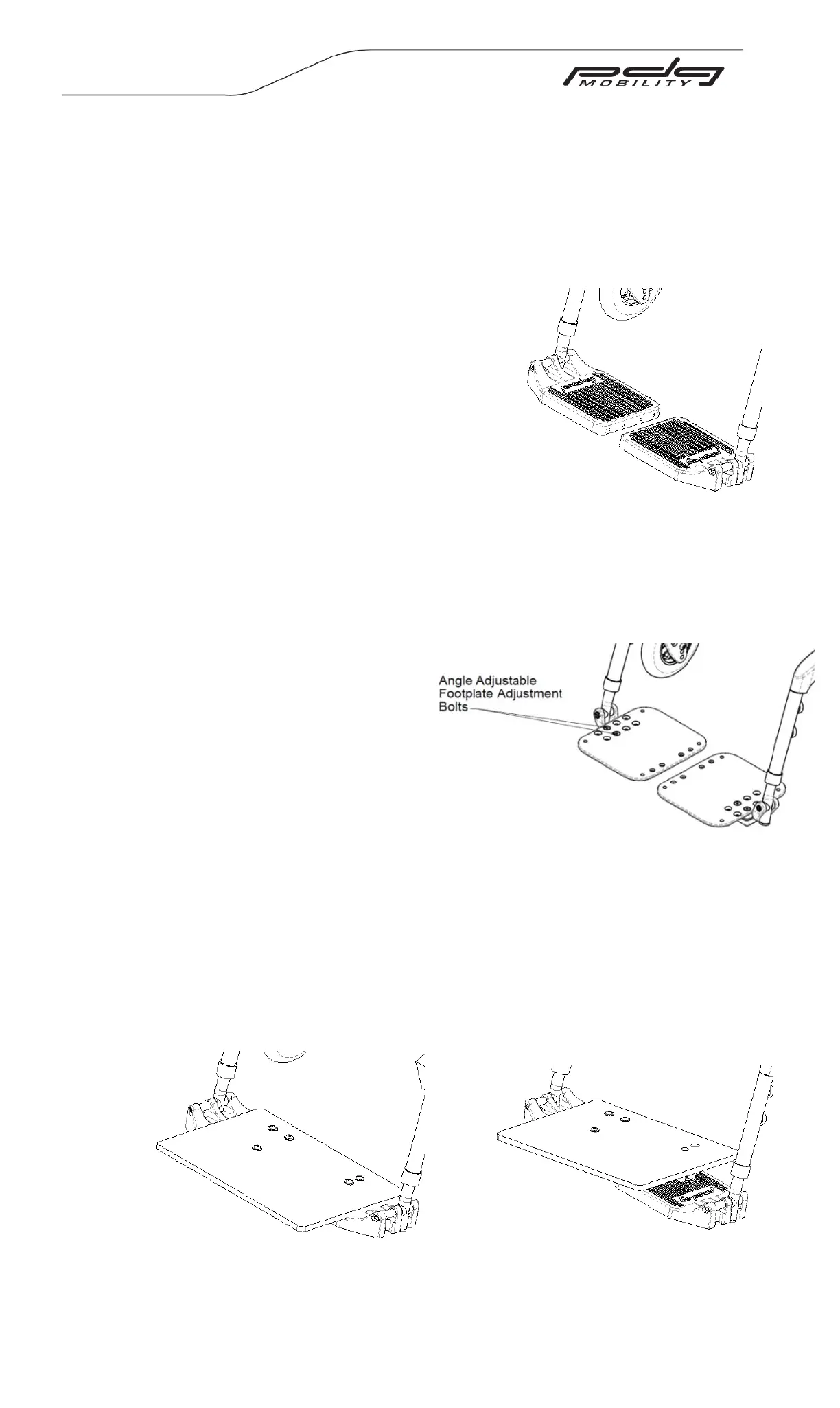

Figure 14.20: Composite Footplates
Figure 14.21: Angle Adjustable Footplates
Figure 14.22: Fixed one piece footplate
Figure 14.23: Flip-up one piece footplate
14.7 Footplates
WARNING – Do not flip-up footplate as an alternative to removing the front rigging.
DO NOT ATTEMPT TO STAND ON FOOTPLATES. Standing on the footplates will cause
the wheelchair to tip forward abruptly and may result in a serious fall of the individual.
Composite Footplates
The default footplates for the Bentley are the
composite footplates. These composite footplates
offer flip-up functionality. To flip up the footplate
simply pull upwards on the inboard end of the
footplate.
Adjustable Angle Footplates (Optional)
Angle adjustable footplates allow the depth and
the angle of the footplate to be adjusted. These
angle adjustable footplates also offer flip-up
functionality. To flip up the footplate simply pull
upwards on the inboard end of the footplate.
Adjusting the Footplate Angle
1. Loosen the angle adjustable footplate
adjustment bolts as shown in Figure 14.21.
2. Rotate the footplate until it is at the desired
angle.
3. Ensure the clamp is fully engaged and
tighten the bolts.
4. Repeat for other footplate if required.
Adjusting the Depth
1. Remove the angle adjustable footplate adjustment bolts as shown in Figure 14.21.
2. Invert the clamp if required and align the footplate with the preferred holes.
3. Reinstall and tighten the nuts and bolts.
4. Repeat for other footplate if required.
