PeakTech 3435 User Manual

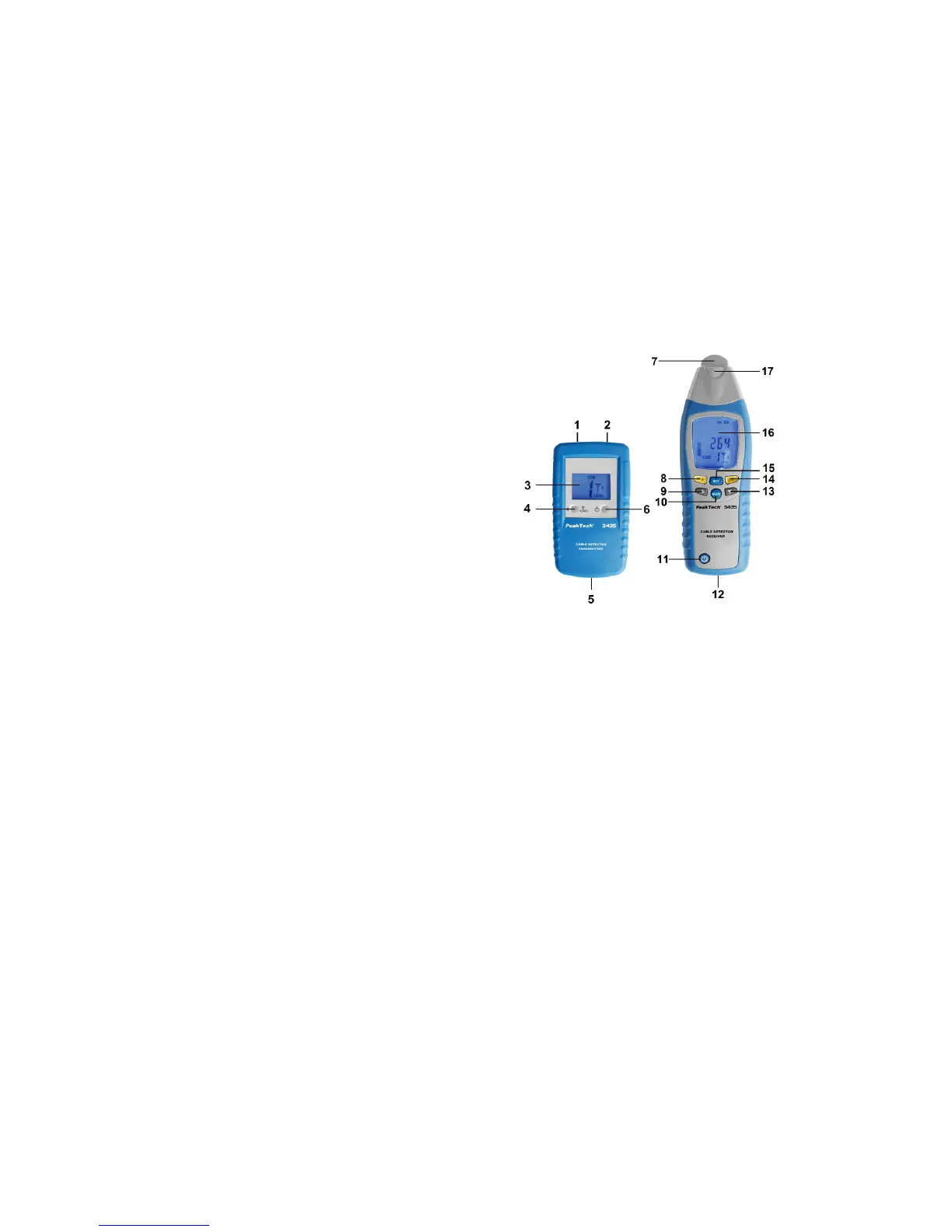

6. Front panel description
1. Red input socket
2. Black input socket
3. LCD display (transmitter)
4. Level / light - key
5. Battery compartment (back side)
6. On / Off- key
7. Sensor
8. Light On/Off- key
9.▲-key
10. Mode- key
11. On/Off- key
12. Battery compartment (back side)
13.▼- key
14. LED- key
15. NCV- key
16. LCD display (receiver)
17. LED light
