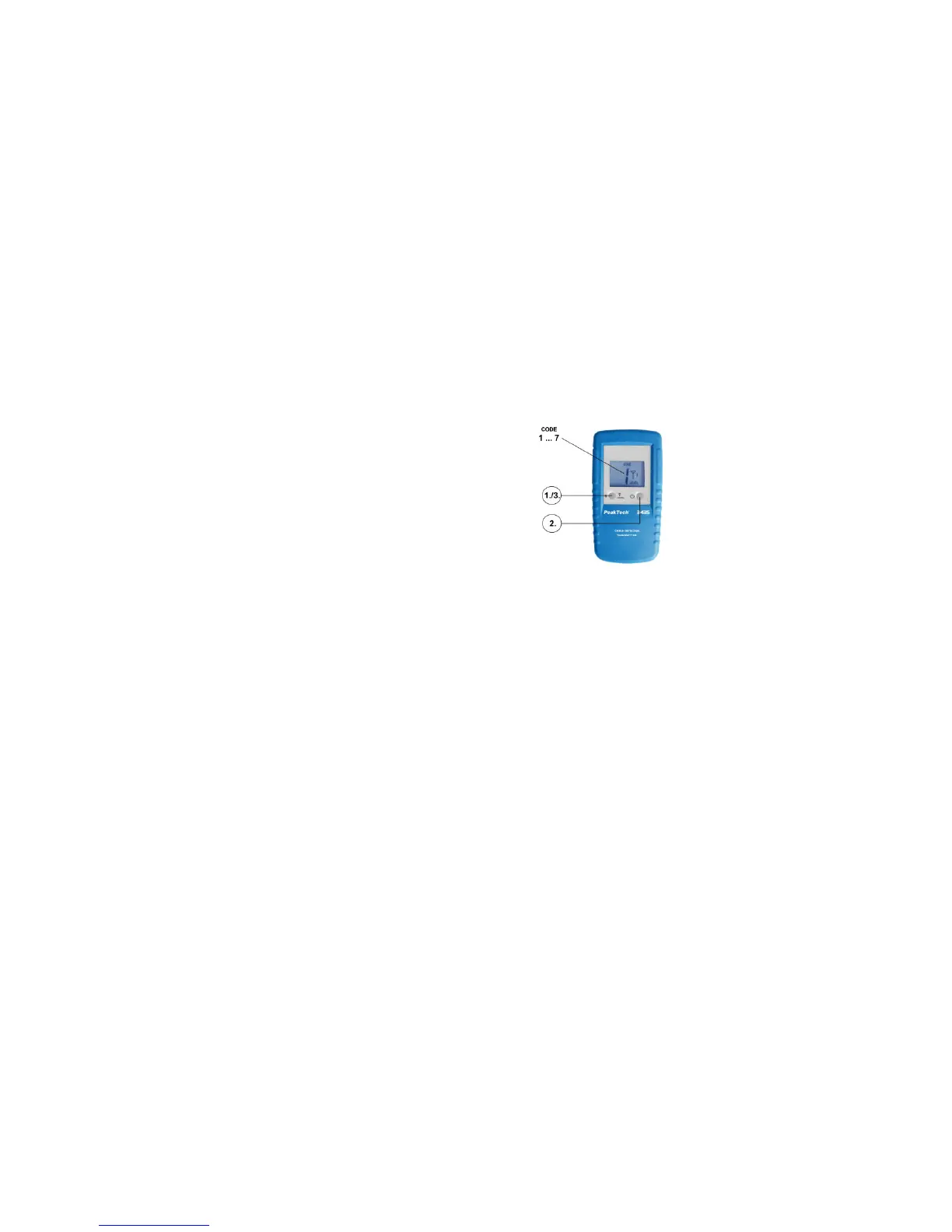

Change the transmission code (use of multiple transmitters)
If you use multiple transmitters, you must assign these to different unique signal codes (1-7).
- Turn off the transmitter if necessary
- Press the LEVEL key and simultaneously press the power button.
- Now press the LEVEL key several times until the desired transmitter code is shown in the display
- When finished, turn the transmitter off with the power button to accept the settings.
- After the next start of the new code is shown in the display.
Enable the flashlight function
An ultra-bright LED for illumination in low visibility conditions is located at the top of the receiver.
To enable this feature, press the LED button (14) on the device.
The LED lights up for about 60 seconds and then switches off automatically. You can disable the
LED within this time by pressing the LED button again.
11. Replacing the fuse
CAUTION: Before removing the rear panel to replace the fuse, switch off the device and remove all
test leads from the inputs. Replace defective fuse only with one of the original value and
dimensions. The replacement of the fuses must be performed by qualified personnel only.
F 0.5A 500V, 6.3 x 32 mm
Proceed for replacement as follows:
- Switch off the device and remove all test leads from the inputs.
- Remove all screws from the case.
- Remove the blown fuse and insert a new fuse of the same values and dimensions.
- When installing, ensure that the fuse is correctly installed to the center of the fuse holder.
- Close the device and fix the rear panel with the screws.
- Do not use the device with a removed case!
-43-
