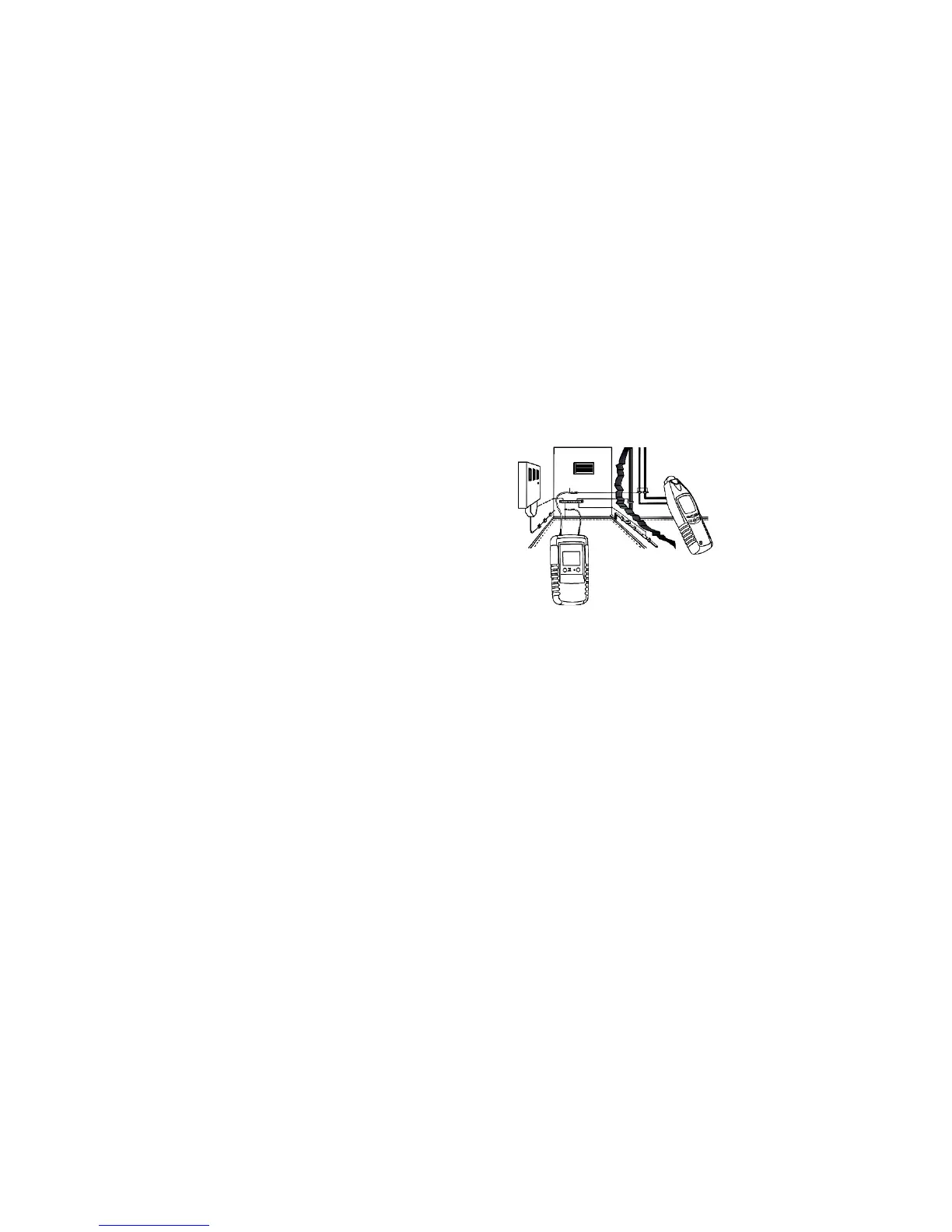

Tracking / search of water and heating pipes (single pole application)
Note: The located line must be separated from the potential equalization. Heating and other
systems, which could provide voltage to the line to be followed, must therefore be switched off for
security reasons.
Connect the black cable to the potential equalization and the red cable to the line to be followed.
Now the tracking of the conductor can be performed.
The receiver depth is 2 meters, depending on the material and application. By changing the
transmitter level of the transmitter from 1 to 3, the receiver depth can be changed by a factor of x5.
-38-
