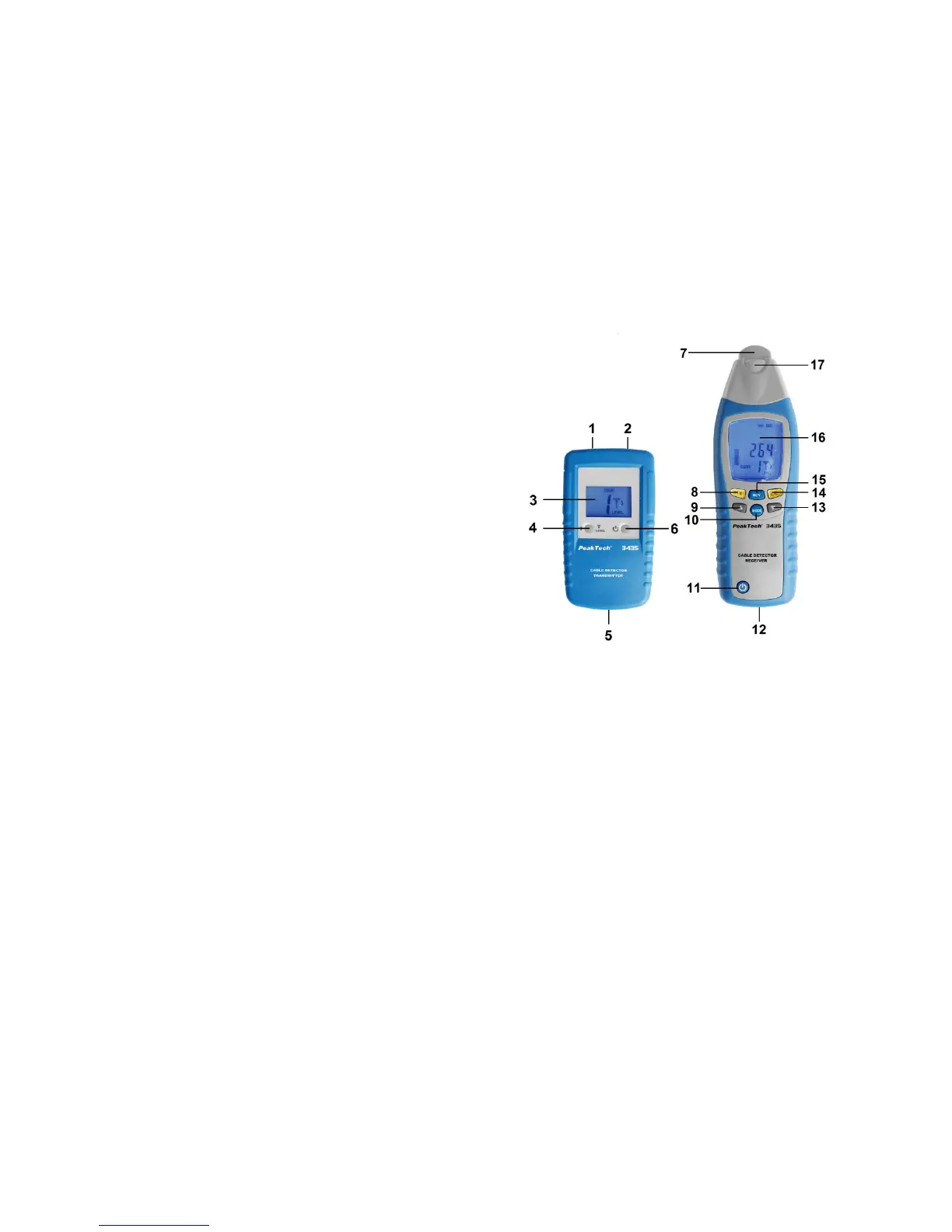

6. Bedienelemente und Anschlüsse am Gerät
1. Eingangsbuchse rot
2. Eingangsbuchse schwarz
3. LCD- Anzeige (Transmitter)
4. Level/Beleuchtung - Taste
5. Batteriefach (Rückseitig)
6. Ein/Aus-Taste
7. Sensor
8. Beleuchtung/Signal Ein/Aus-Taste
9. ▲-Taste
10. Mode-Taste
11. Ein/Aus-Taste
12. Batteriefach (Rückseitig)
13.▼-Taste
14. LED-Taste
15. NCV-Taste
16. LCD-Anzeige (Receiver)
17. LED-Leuchte
