AAM
™
1662 User Manual
Page 26 http://aa.peavey.com copyright 2001 All Rights Reserved

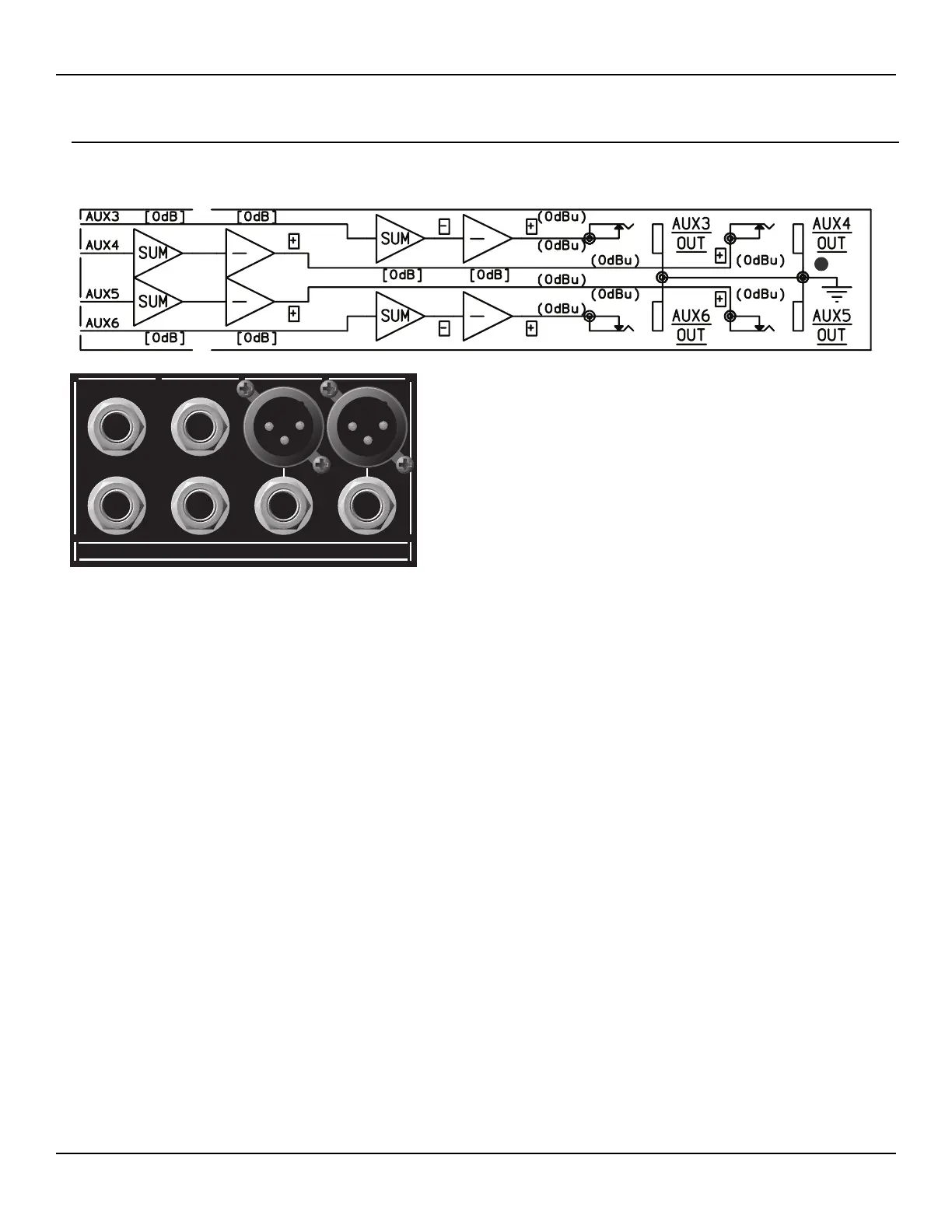

Of the six Aux outputs, four of them are post-fader buses. These four buses include their own outputs and summing stage and
can be assigned by any input channel in groups of two. The maximum simultaneous distribution to the Aux outputs is four.
Post-Fader Aux Output Features
1. UNBALANCED OUTPUT (Typ of Aux 3, 4, 5 and 6 Aux outputs)
Female 1/4” TS connector for terminating a single unbalanced line
level audio output. The signal present at this connector is after the
final gain stage. NOTE: There is no master output level control for
any of the post-fader Aux buses. The signal level present at these
connectors is dependent on the combined level of all input channels
assigned to the bus.
