June 11, 2012 Version 1.6.4b.1 47
3. Click Yes.
Managing the role
In an NWare project, devices that are part of the design are assigned to roles, either
automatically by NWare or manually by the user. Each role is then assigned to a NION,
nControl unit or nTouch 180 unit for processing when the project is deployed.
Tip: Once a project has been deployed to a node, if the node is power cycled, the project is
restarted automatically.

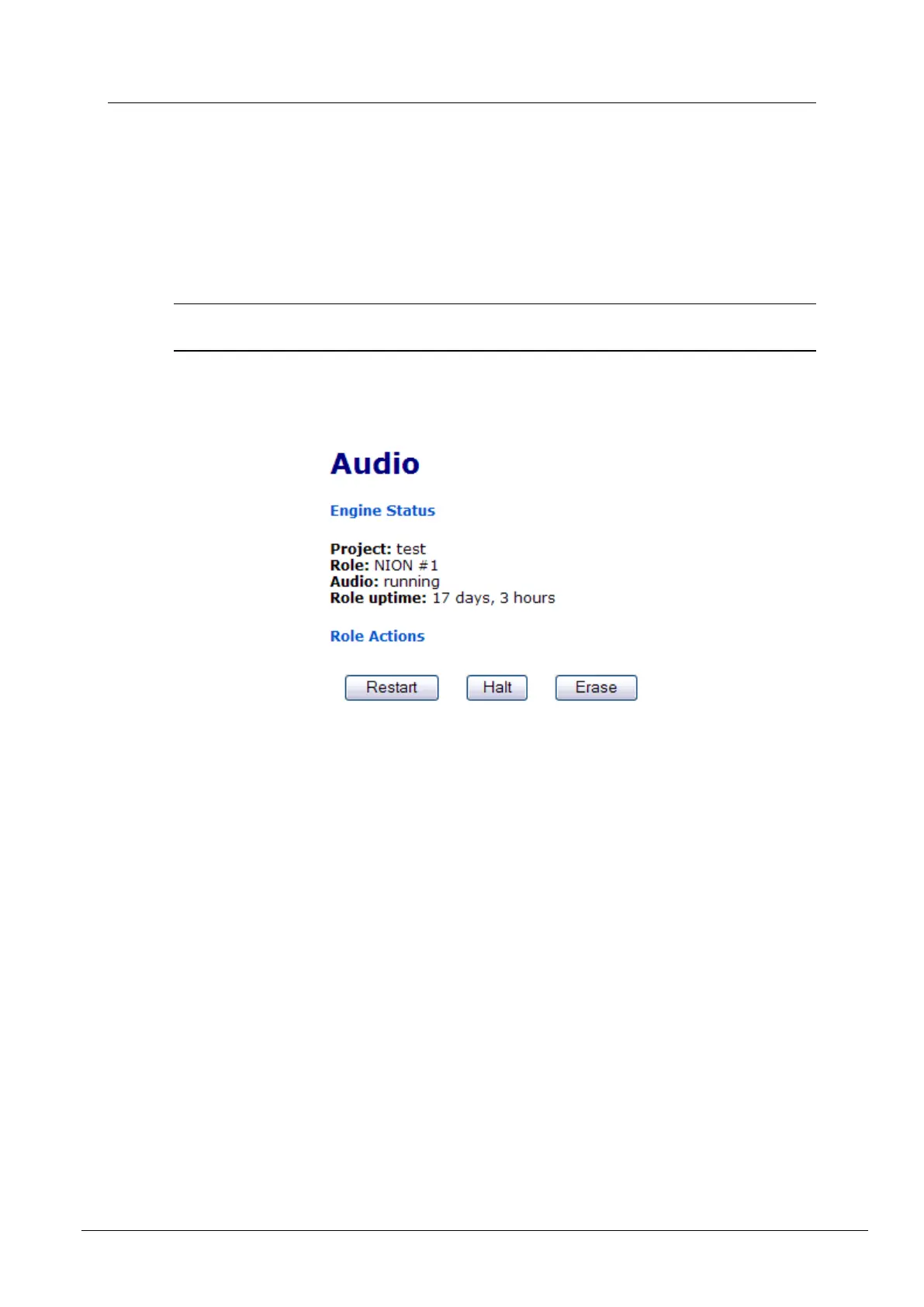

The Audio screen shows the NWare project to which the role belongs, the name of the role and
how long it has been loaded.
Restarting the role
1. On the Audio screen, under Role Actions, click Restart.
2. Click OK to confirm the action.
Stopping the role
1. On the Audio screen, under Role Actions, click Halt.
2. Click OK to confirm the action.
Erasing the role
1. On the Audio screen, under Role Actions, click Erase.
2. Click OK to confirm the action.
Specifying the function of the RS-232 serial port
The NION RS-232 serial port performs two main functions:
In console mode it allows a user to log on to the NION Linux Kernel via a serial terminal
session and change the configuration settings.
When console mode is disabled, you can control the NION using external protocols like
PASHA.
By default, console mode on the RS232 serial port is disabled.
