15
A
PUSH
B
A
PUSH
B

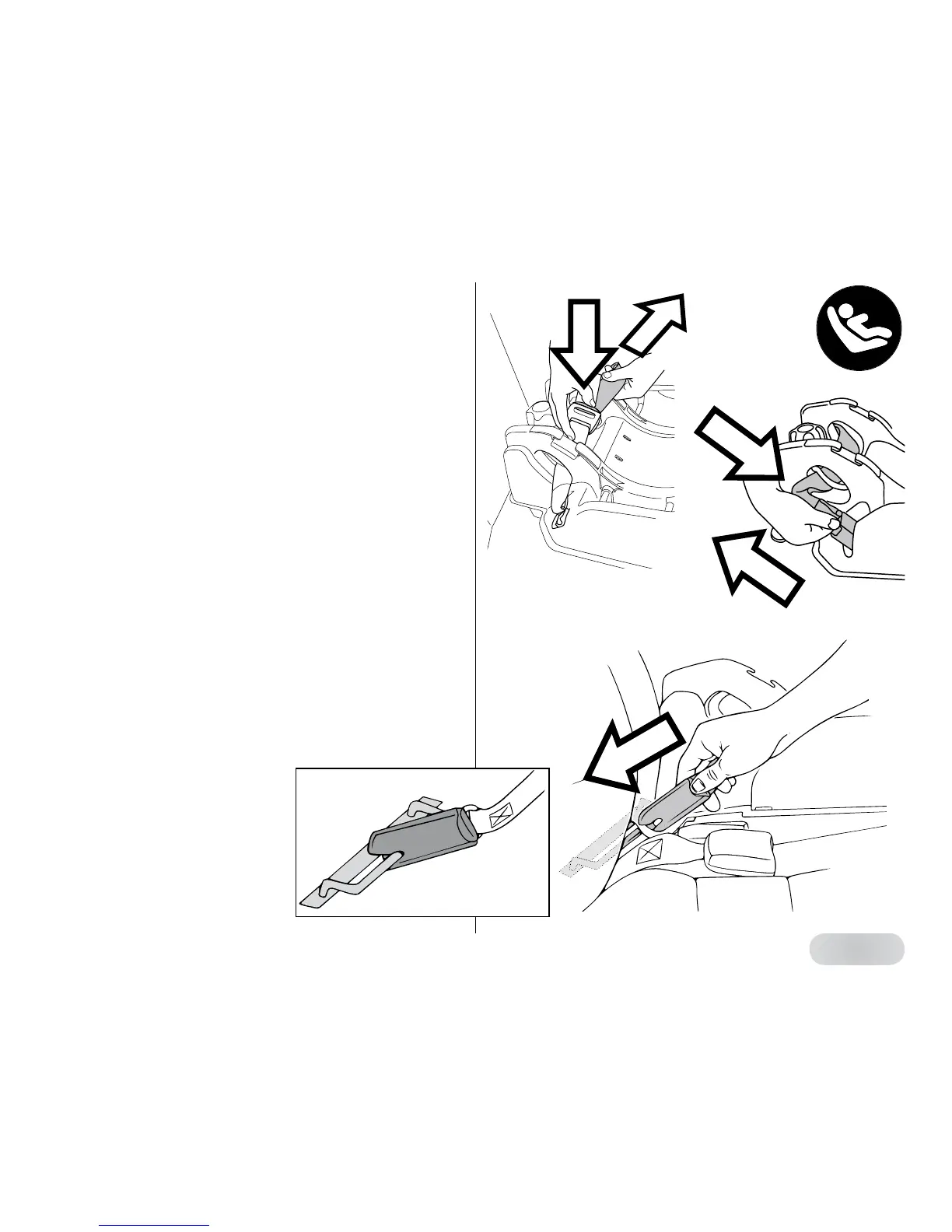

3• Remove the two anchor latches from
their storage housings. The latches
are on the sides of the base. First
loosen the latch strap by pressing on
the gray button and pulling the strap
as shown. Then press the red button
on top of the latch and pull the latch
out of its housing. Repeat on other
side.
4• Push each latch onto the anchor bar
located between your vehicle seat
back and seat bottom. Press until
you hear the click.
