Uninstalling the CPU heatsink and fan

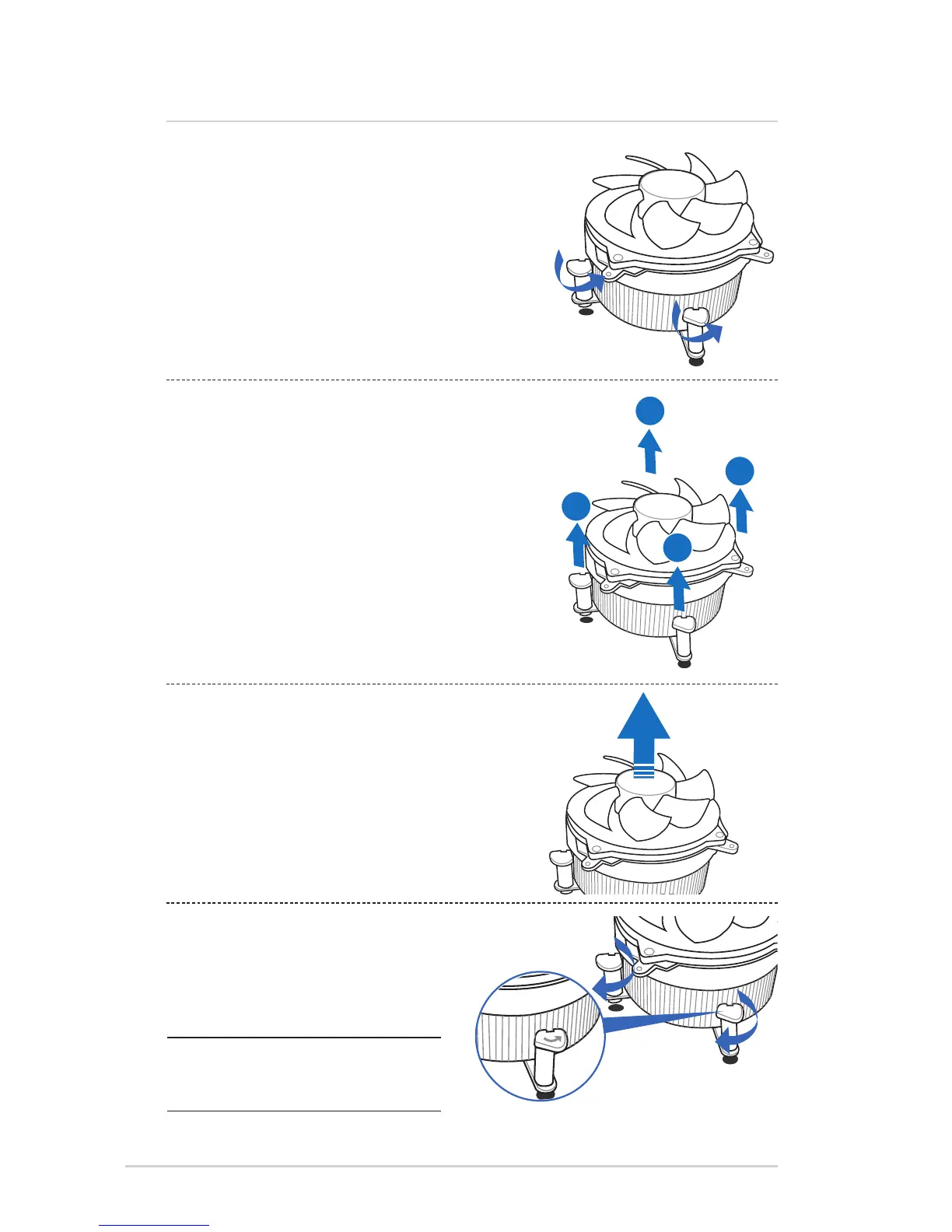

3. Pull up two fasteners at a time in a diagonal sequence
to disengage the heatsink and fan assembly from the
motherboard.
4. Remove the heatsink and fan assembly from the
motherboard.
5. Rotate each fastener clockwise to reset the
orientation.
NOTE: The narrow end of the
groove should point outward
after resetting.
1. Disconnect the CPU fan cable from the connector on the
motherboard.
2. Rotate each fastener counterclockwise.
A
A
B
B
