Serial ATA connectors

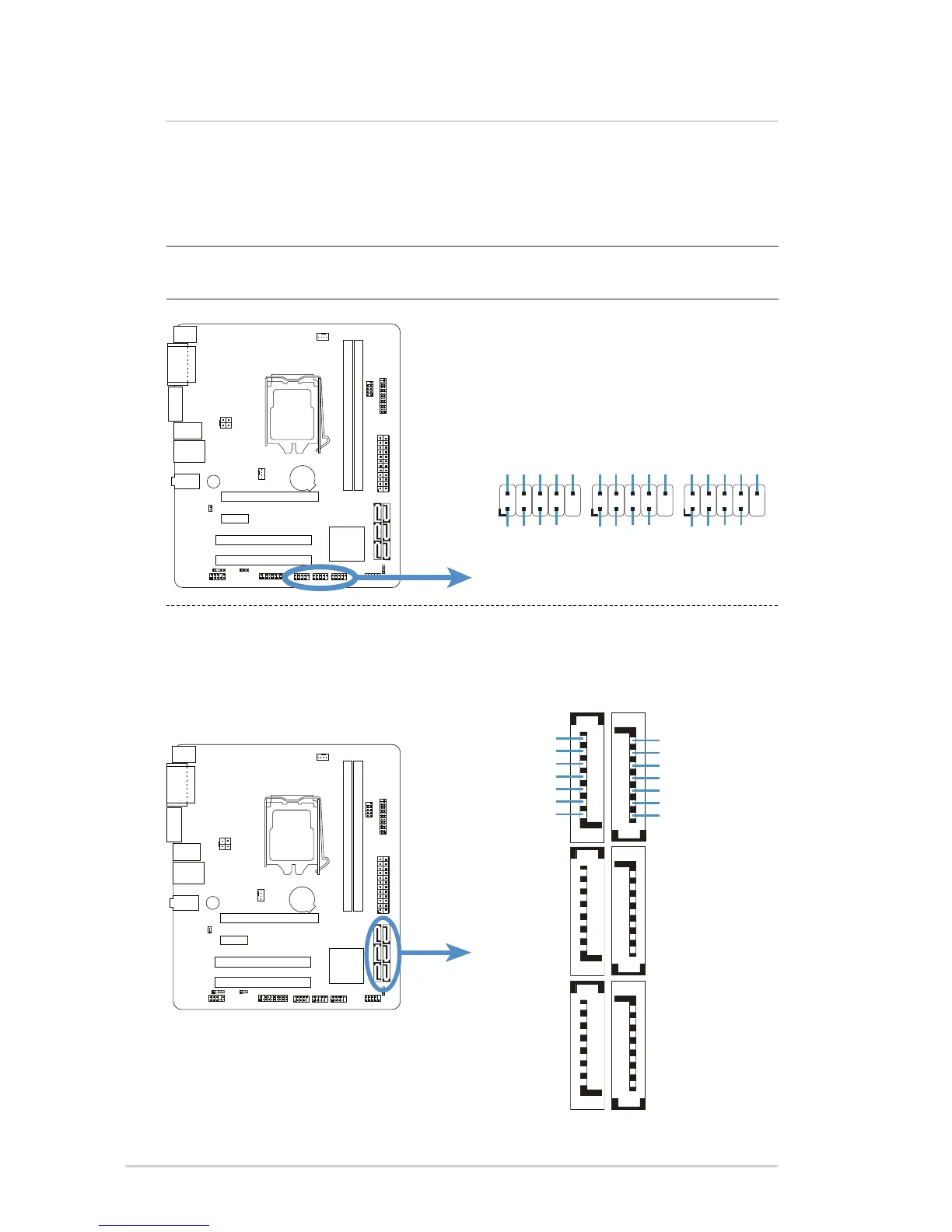

These connectors are for the Serial ATA signal cables for Serial ATA devices.
Ground
Ground
Ground
SATA_RX(+)
SATA_RX(-)
SATA_TX(-)
SATA_TX(+)
SATA1
SATA3 SATA2
SATA5 SATA4
SATA0
Ground
Ground
Ground
SATA_RX(+)
SATA_RX(-)
SATA_TX(-)
SATA_TX(+)
7 Connectors
USB connectors (dual ports)
These connectors are for USB 2.0 ports. Connect a USB module cable to any
of these connectors, then install the module to a slot opening at the back of the
system chassis. These USB connectors comply with USB 2.0 specication that
supports up to 480 Mbps connection speed.
WARNING: Never connect a 1394 cable to the USB connectors. Doing so
will damage the motherboard!
USB1USB2USB3
USB*(-)
USB*(+)
USB*(+) USB*(-)
Ground
Ground
+SBV
+SBV NC
USB*(-)
USB*(+)
USB*(+) USB*(-)
Ground
Ground
+SBV
+SBV NC
USB*(-)
USB*(+)
USB*(+) USB*(-)
Ground
Ground
+SBV
+SBV NC
