7 Connectors

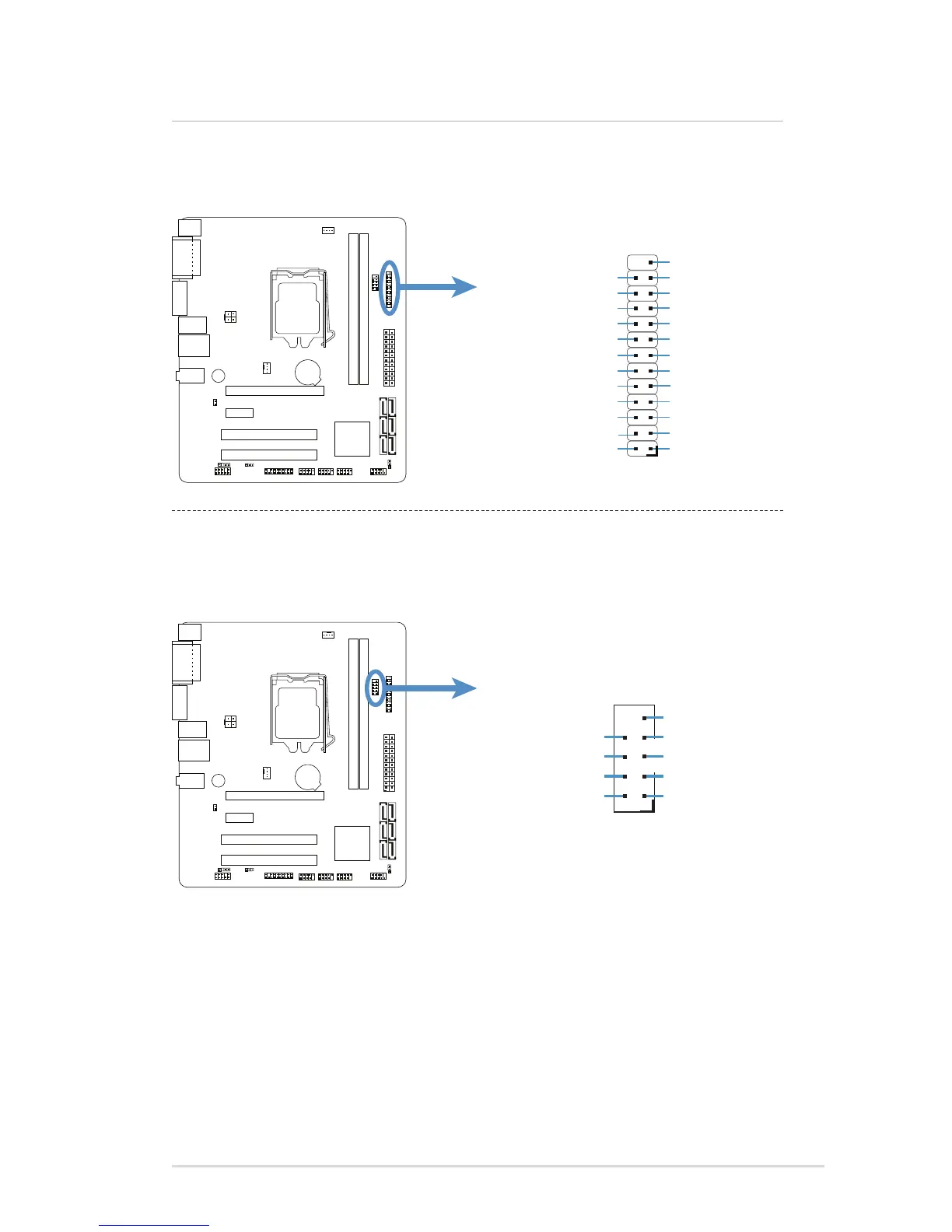

Internal serial port connector

This connector is for a serial (COM) port. Connect the serial port module cable to

this connector, then install the module to the system chassis.

SERIAL_B

DDC*#

TTXD*

Ground

RRTS*#

RRXD*

DDTR*#

DDSR*#

CCTS*#

RRT*#

Parallel port connector

This connector is for a parallel port. Connect the parallel port module cable to this

connector, then install the module to the system chassis.

PARALLEL

STB#

PINIT#

ERROR#

SPD1

SPD7

AFD#

ACK#

SPD2

SLIN#

SPD4

SPD3

SPD6

SLCT

BUSY

SPD5

Ground

SPD0
