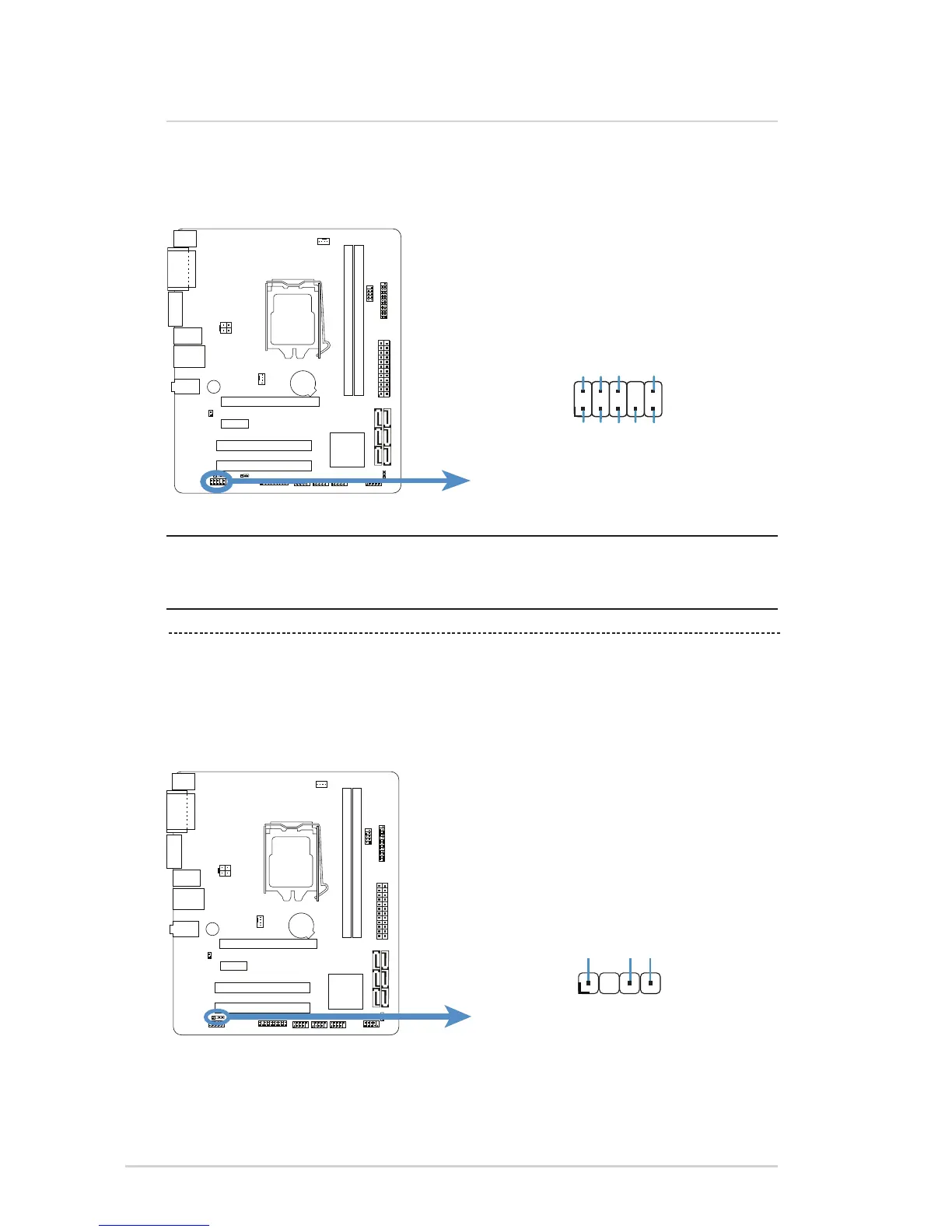

F_AUDIO
Front panel audio connector
This connector is for a chassis-mounted front panel audio I/O module that supports HD
Audio.
NOTE: It is recommended that you connect a high-denition front panel
audio module to this connector to utilize this motherboard’s high-denition
audio capability.
MIC*_L
MIC*_R
LINE*_R
Ground
Ground
LINE*_L
LINE*_RTU MIC*_RTU
AUDIO_PRES#
7 Connectors
Digital Audio connector
This connector is for the S/PDIF audio module to allow digital sound output.
Connect one end of the S/PDIF audio cable to this connector and the other end to
the S/PDIF module (may require separate purchase).
Ground
SPDIF out
+5V
SPDIF_OUT
