IPMIP Motherboard Reference Guide 15

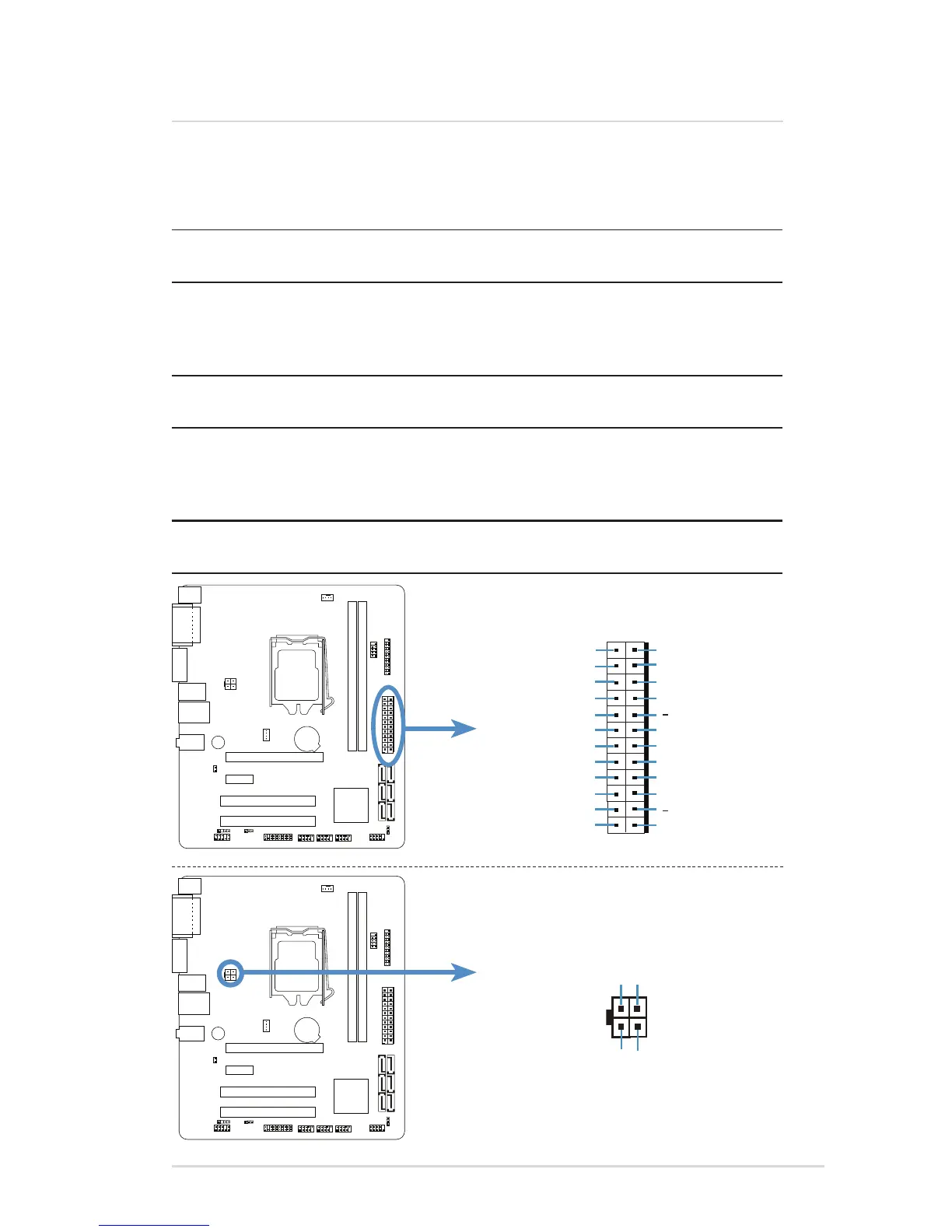

ATX power connectors
These connectors are for ATX power supply plugs. The power supply plugs are
designed to t these connectors in only one orientation. Find the proper orientation
and push down rmly until the connectors completely t.
NOTE: Do not forget to connect the 4-pin ATX +12V power plug; otherwise,
the system will not boot.
NOTE: Use of a power supply unit (PSU) with a higher power output is
recommended when conguring a system with more power-consuming
devices. The system may become unstable or may not boot up if the power
is inadequate.
NOTE: Make sure that your PSU can provide at least the minimum power
required by your system.
NOTE: If you intend to use a PSU with 20-pin and 4-pin power plugs, make
sure that the 20-pin power plug can provide at least 15A on +12V and that
the PSU has a minimum power rating of 350W. The system may become
unstable or may not boot up if the power is inadequate.
NOTE: You must install a PSU with a higher power rating if you intend to
install additional devices.
7 Connectors
