Pego ECP200 BASE Series - Connection Example 3: BASE2;BASE2 A Direct Control

ECP200 BASE 2/4
Page 30
USE AND MAINTENANCE MANUAL
Rev. 01-09

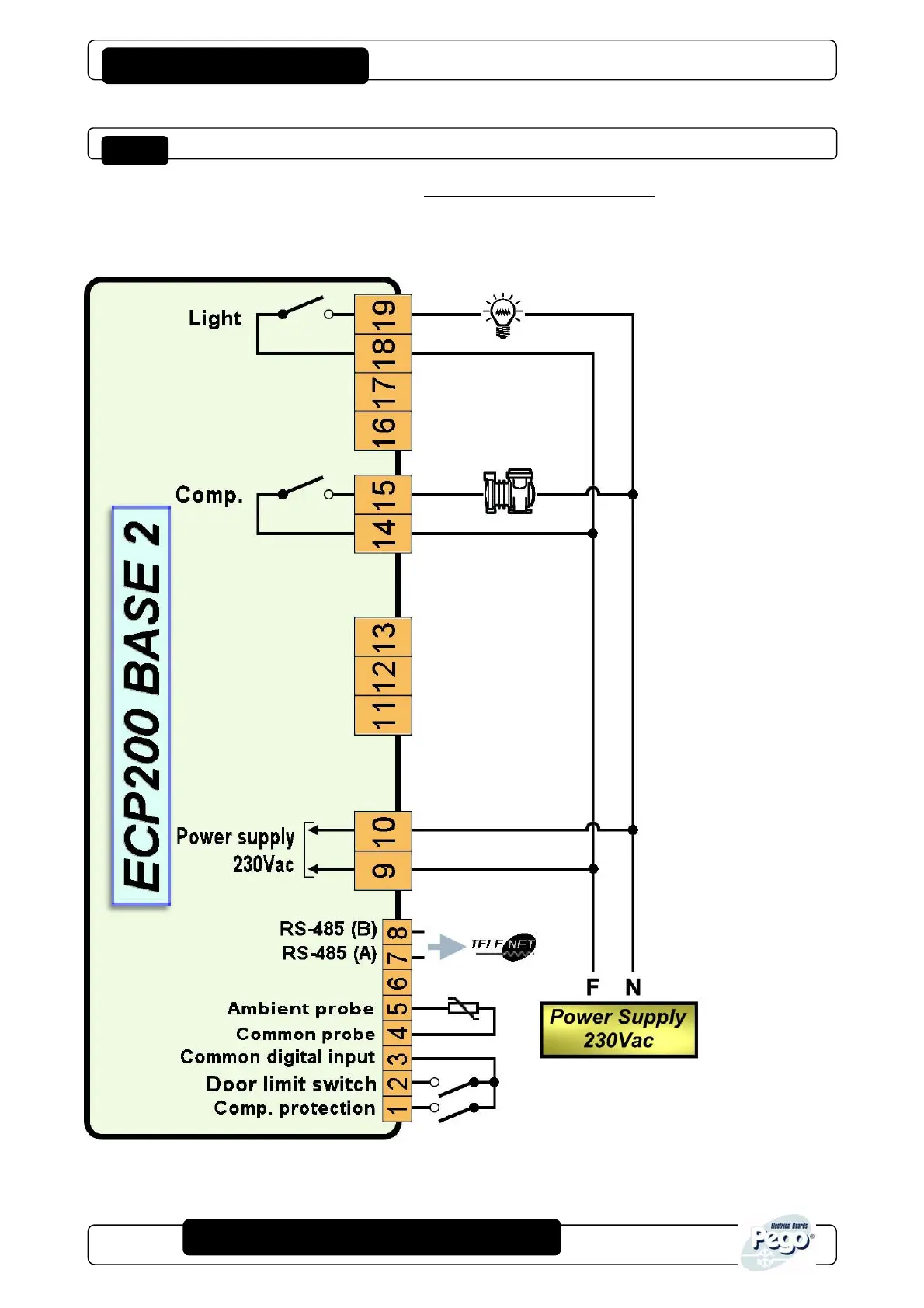

CONNECTION EXAMPLE (3) - ECP200 BASE2 /BASE2A
Connection with outputs powered for direct control of functions.
