Pego ECP200 BASE Series - Connection Example 4: BASE2;BASE2 A Mixed Control

ECP200 BASE 2/4
Page 31
USE AND MAINTENANCE MANUAL
Rev. 01-09

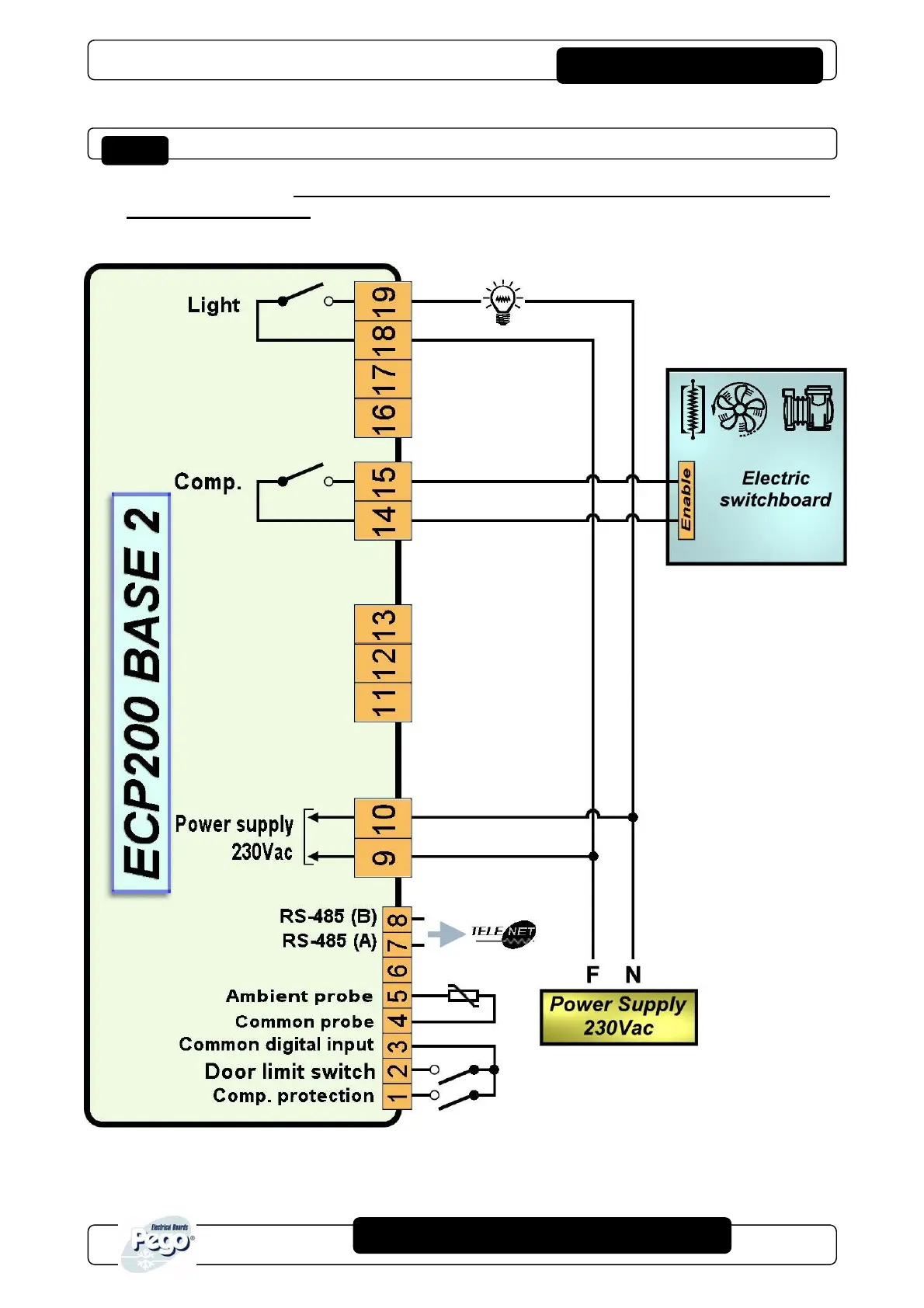

CONNECTION EXAMPLE (4) - ECP200 BASE2 /BASE2A
Mixed connection with on/off contact powered to enable towards room power board
and light output powered for direct control.
